If you wish to build your own light box or simply replace fluorescent lights with LED’s, our backlit boards will provide illumination with proven longevity and uniformity. It is a perfect solution for large scale project with NO SIZE LIMITATIONS.

  • Uniform illumination throughout
  • Designed to exceed brightness of traditional fluorescent lights
  • Can be used in conventional fluorescent light boxes
  • Two different brightness types available
  • Operates in wide ambient temperature range (-40°F ~ +140°F)
  • Suitable for both dry and wet locations

Product Application

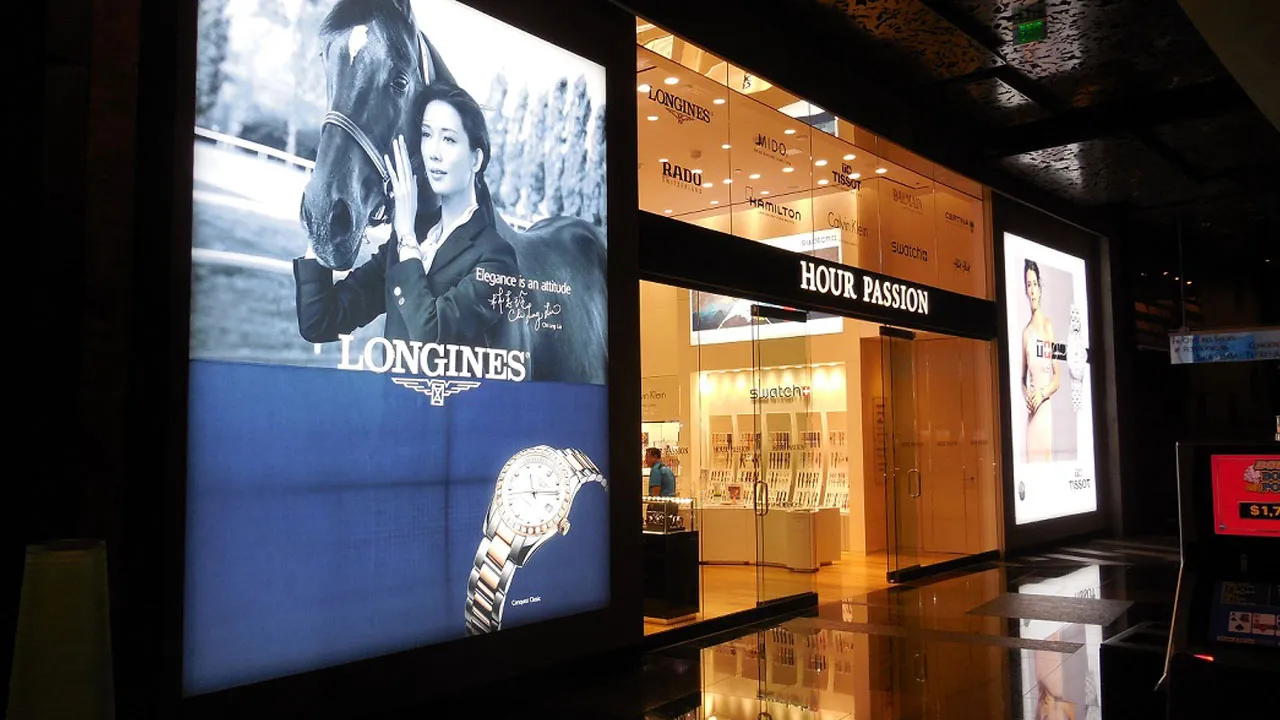

  • Retail shop display stands and cases, such as duty-free shops and luxury brand shops
  • Cosmetic/jewelry display shelves and cabinets
  • Back light source for wall/ceiling/floor displays
  • Component in variety of interior design fixtures

backlit_application_1
backlit_application_2

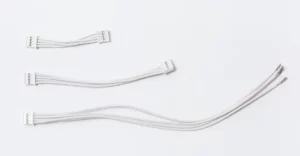

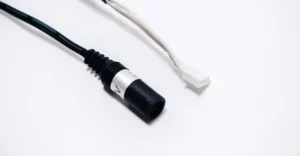

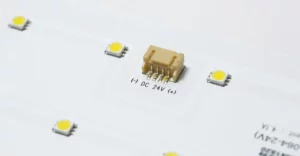

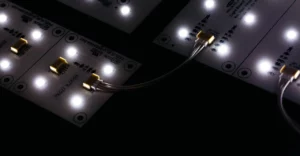

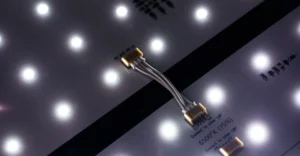

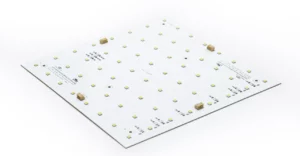

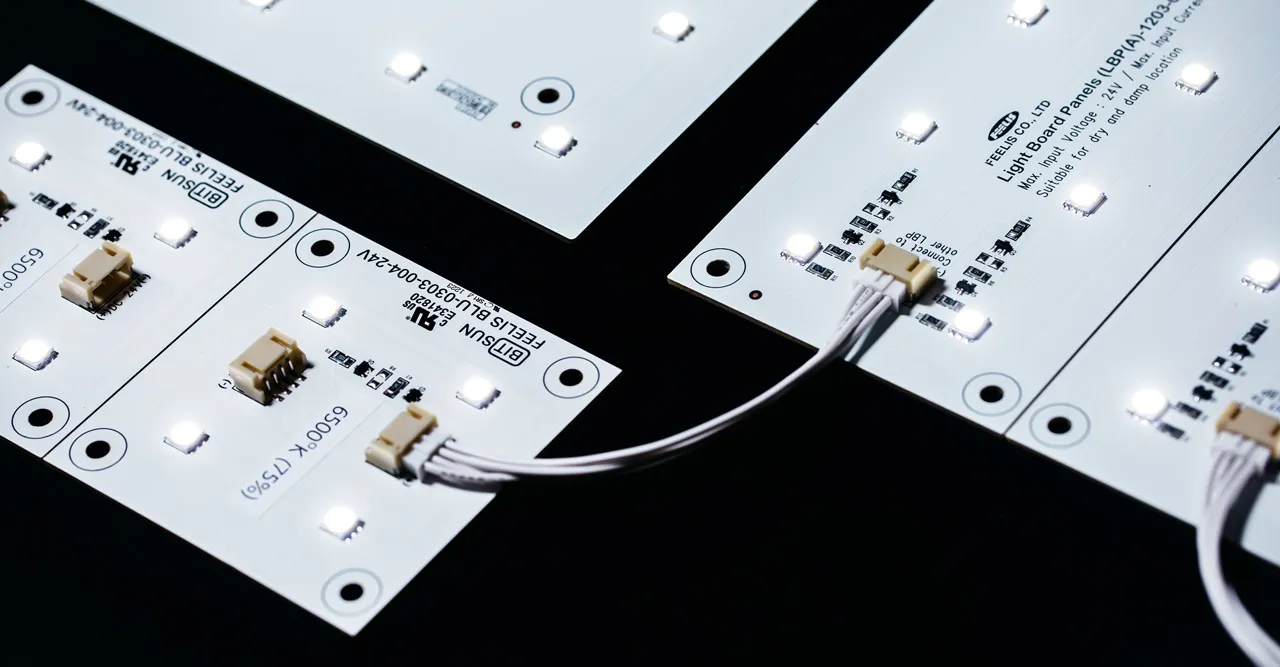

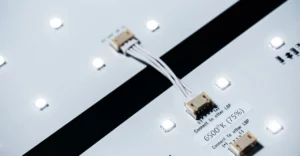

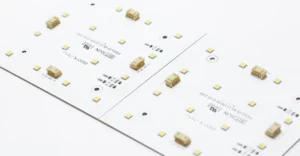

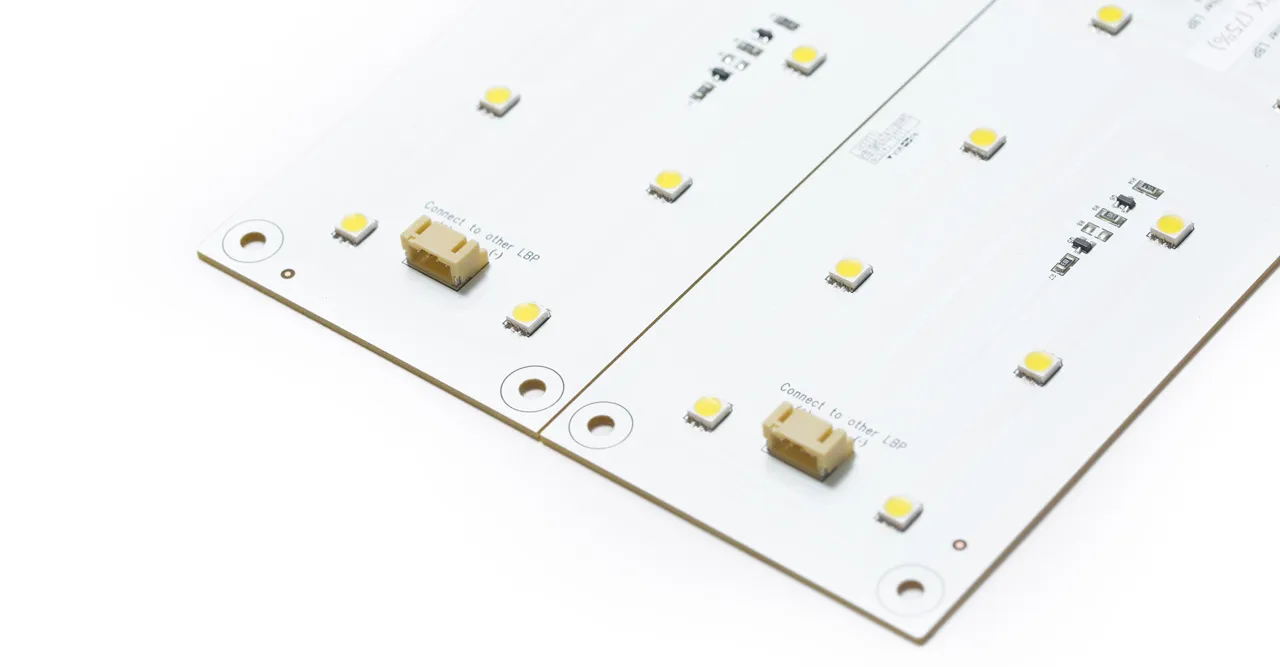

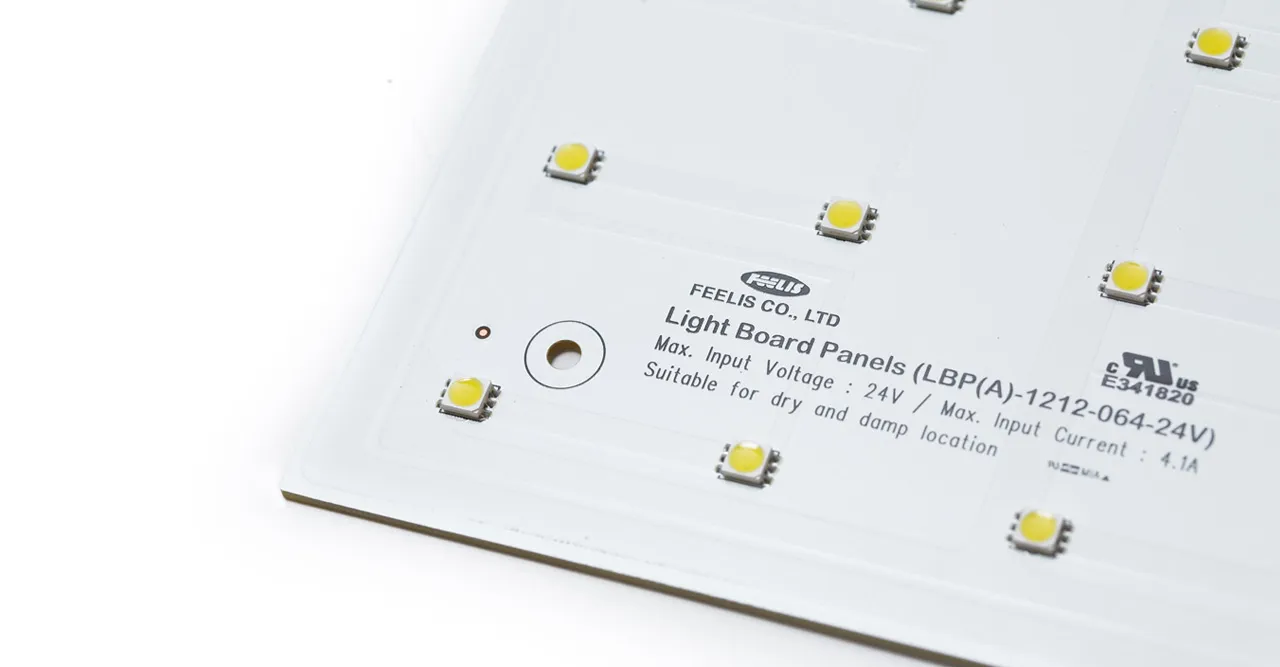

LED Board Panel (LBP) - Type A

ModelDimension (mm)No of LEDWattage (W)Lumen (Lm)
LBP(A)-1212-064-24V300 x 3006412.01,000
LBP(A)-1209-048-24V300 x 225489.0800
LBP(A)-1206-032-24V300 x 150326.5500
LBP(A)-1203-016-24V300 x 75164.3250
LBP(A)-0909-036-24V225 x 225366.5600
LBP(A)-0606-016-24V150 x 150163.3250
LBP(A)-0303-004-24V75 x 7541.175
Minimum distance to the graphic45mm

Remark
  1. D.C. 24 Volt only
  2. Constant Current type (75% of Rated Current)
  3. Suitable for dry and damp location
  4. UL recognized for “Sign Component” (UL File no. : E341820)
  5. CE Approved


LED Board Panel (LBP) - Type B

ModelDimension (mm)No of LEDWattage (W)Lumen (Lm)
LBP(B)-2412-072-24V600 x 3007214.01,200
LBP(B)-2408-048-24V600 x 2004810.0800
LBP(B)-2406-036-24V600 x 150367.5600
LBP(B)-1212-036-24V300 x 300367.5600
LBP(B)-1208-024-24V300 x 200245.0400
LBP(B)-0808-016-24V200 x 200164.7270
LBP(B)-0806-012-24V200 x 150122.4200
LBP(B)-0606-009-24V150 x 15092.1150
Minimum distance to the graphic60mm

Remark
  1. D.C. 24 Volt only
  2. Constant Current type (75% of Rated Current)
  3. Suitable for dry and damp location
  4. UL recognized for “Sign Component” (UL File no. : E341820)
  5. CE Approved


LED Board Panel (LBP) - Type C

ModelDimension (mm)No of LEDWattage (W)Lumen (Lm)
LBP(C)-1212-144-24V300 x 30014415.01,200
LBP(C)-1209-108-24V300 x 22510811.25960
LBP(C)-1206-072-24V300 x 150727.5600
LBP(C)-1203-036-24V300 x 75363.75300
LBP(C)-0909-081-24V225 x 225818.43720
LBP(C)-0606-036-24V150 x 150363.75300
LBP(C)-0303-009-24V75 x 7590.9490
Minimum distance to the graphic30mm

Remark
  1. D.C. 24 Volt only
  2. Constant Current type (75% of Rated Current)
  3. Suitable for dry and damp location
  4. UL recognized for “Sign Component” (UL File no. : E341820)
  5. CE Approved


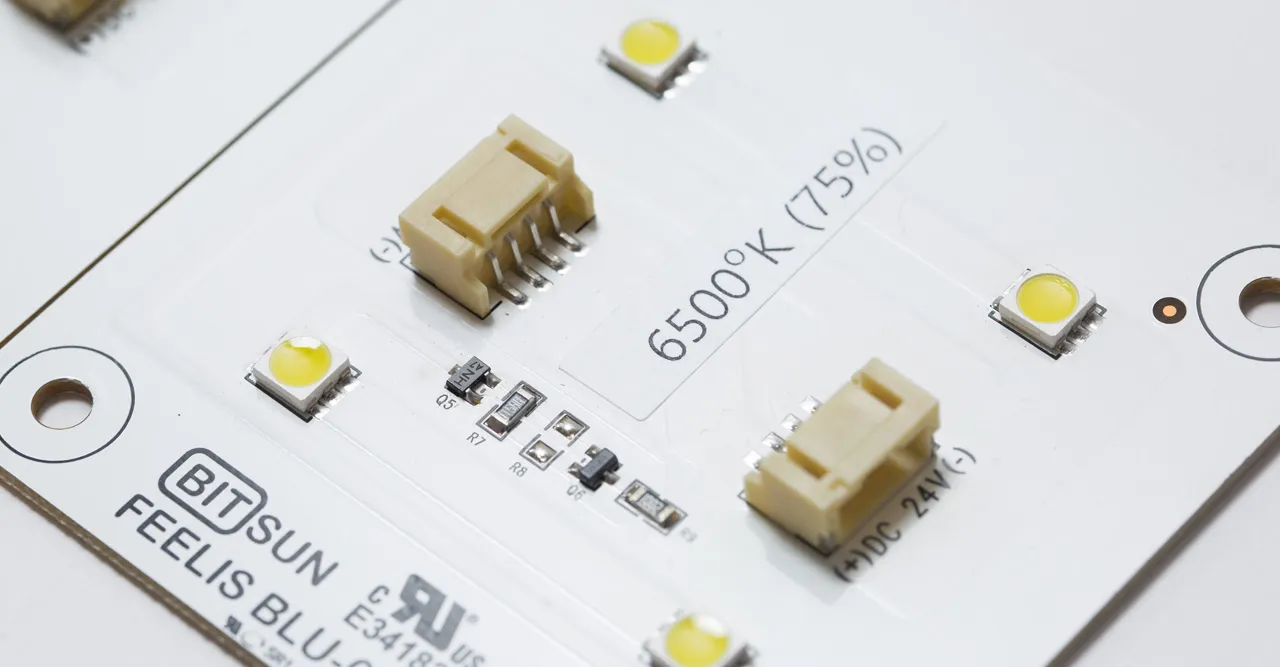

BACKLIT LED ARRAY PLAN

NoModelDimension (mm)PitchLEDConnectorVoltageWattage (W)Circuit
1FEELIS BLU-1203-16-24V296 x 7437mm16224 V DC.4.84S 4P
2FEELIS BLU-1206-32-24V296 x 14837mm32424 V DC.6.07S 2P + 6S 3P
3FEELIS BLU-1209-48-24V296 x 22237mm48424 V DC.9.66S 8P
4FEELIS BLU-1212-64-24V296 x 29637mm64424 V DC.12.07S 4P + 6S 6P
5FEELIS BLU-0909-36-24V222 x 22237mm36424 V DC.7.26S 6P
6FEELIS BLU-0606-16-24V148 x 14837mm16224 V DC.4.84S 4P
7FEELIS BLU-0303-04-24V74 x 7437mm4224 V DC.1.24S 1P
