LIGHT BOX Fabric

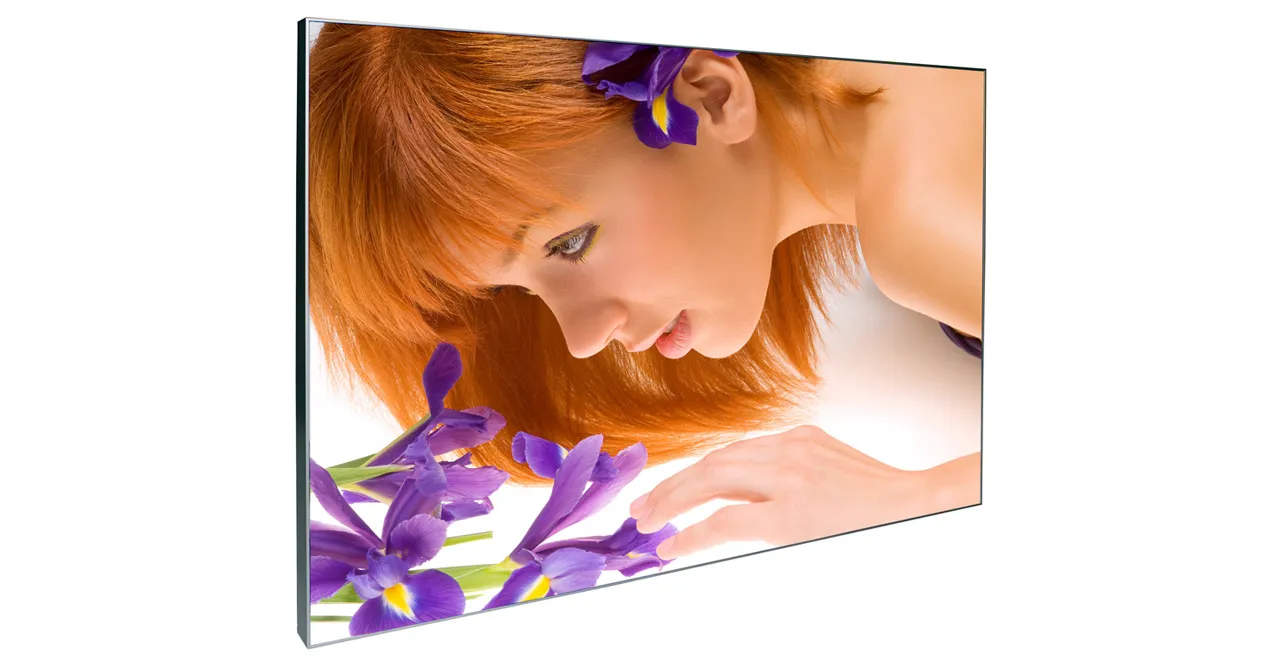

Lightbox_Fabric_Product_1

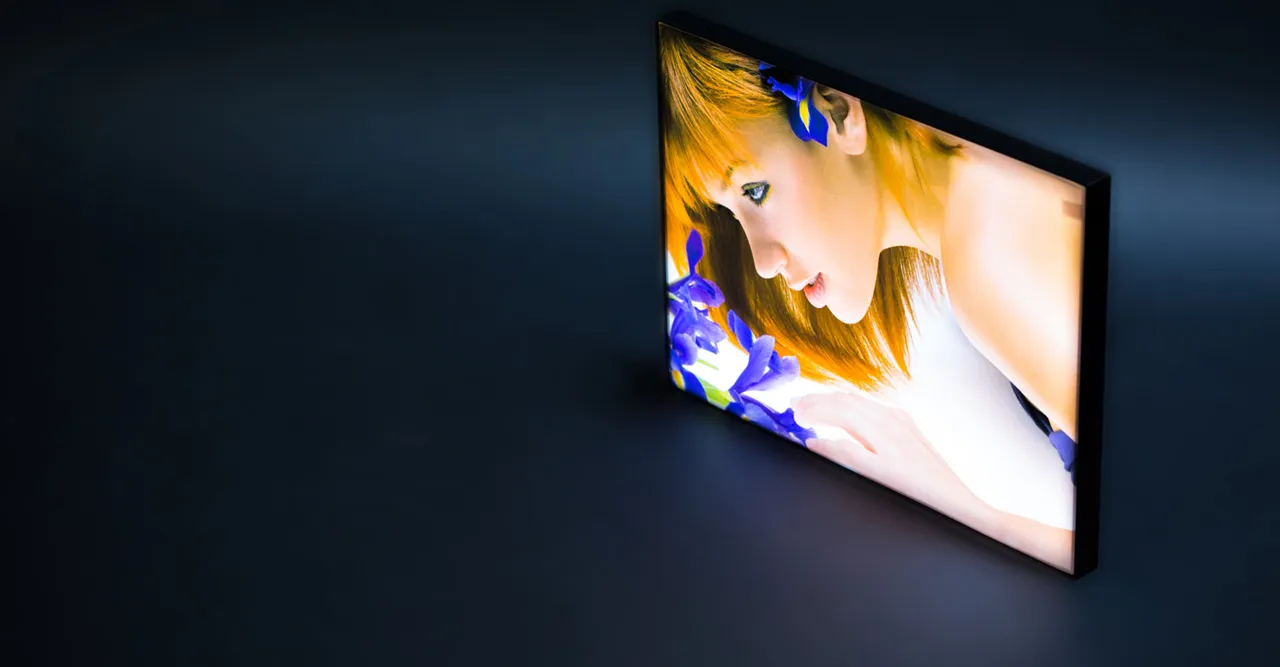

Lightbox_Fabric_Product_5

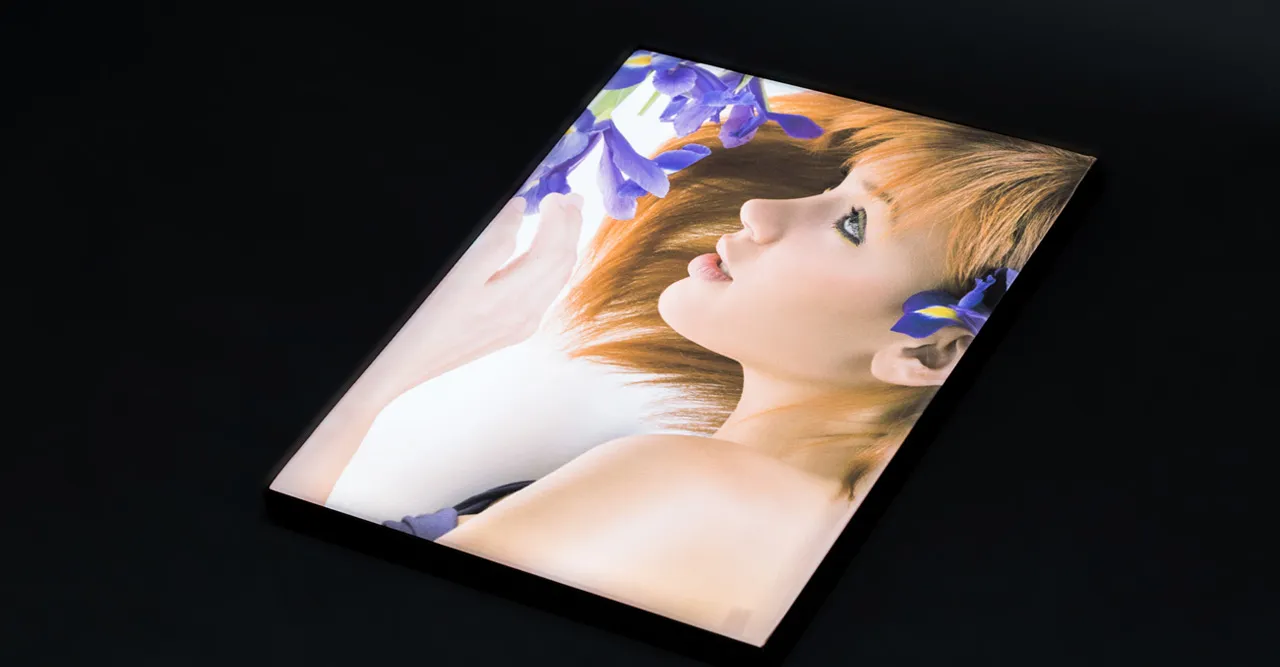

Lightbox_Fabric_Product_2

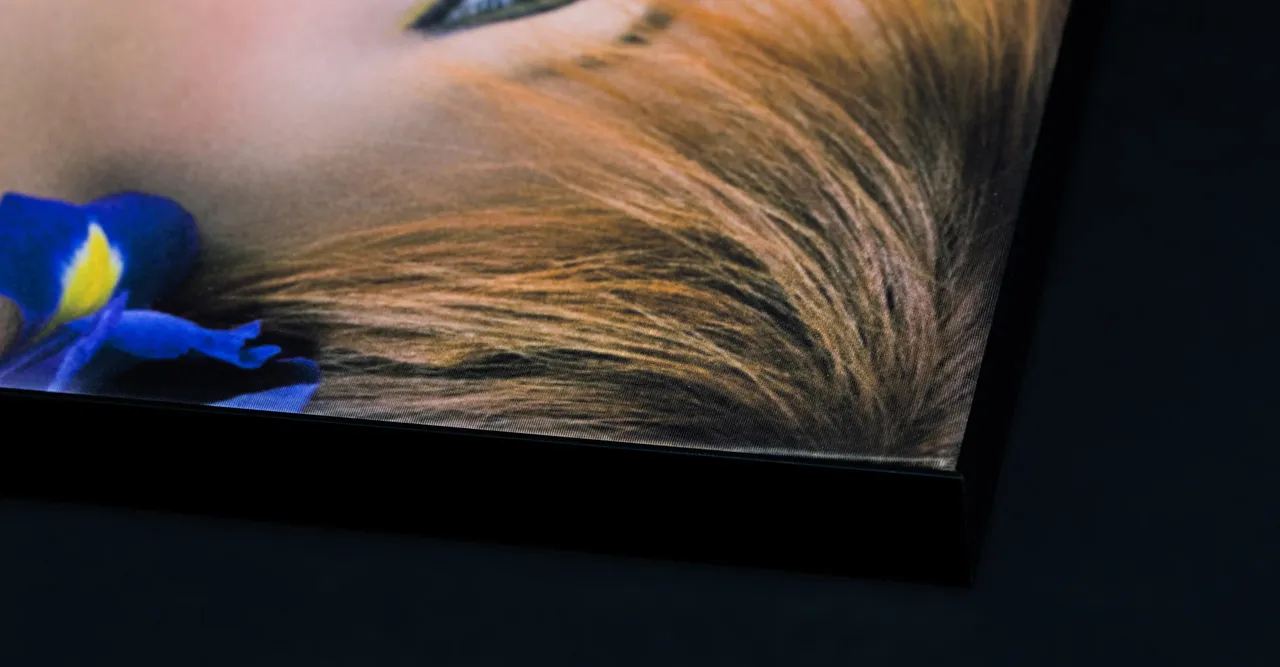

Lightbox_Fabric_Product_3

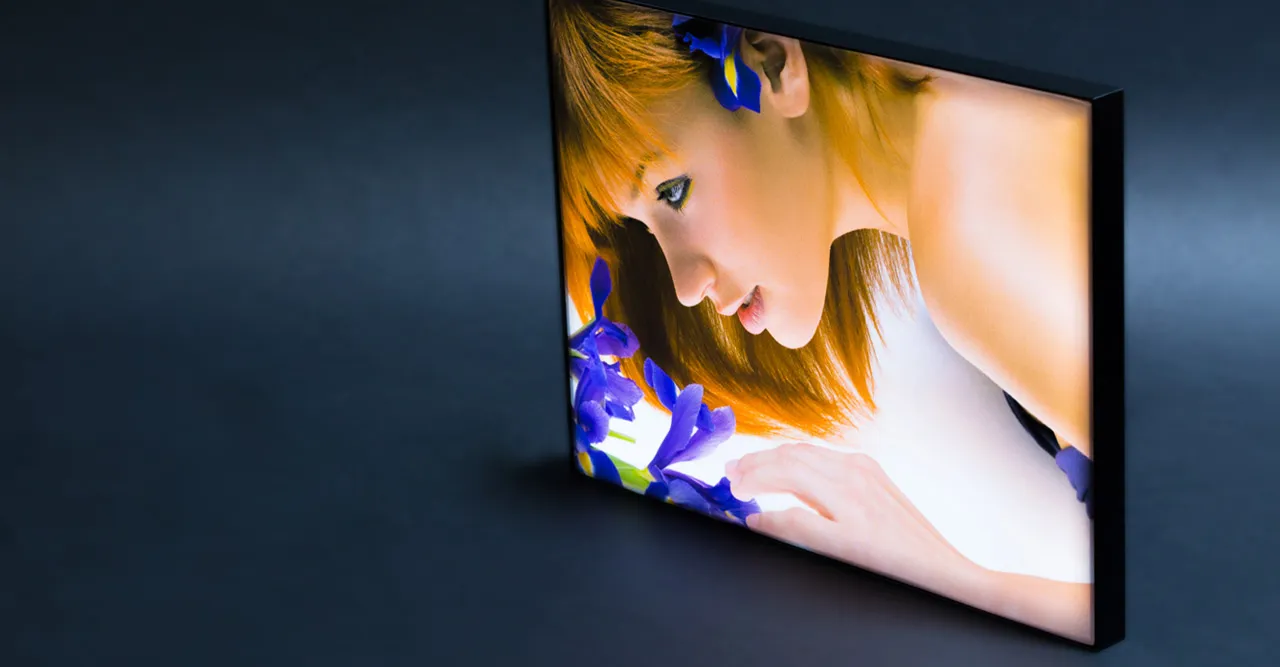

Lightbox_Fabric_Product_4
Loading image... Loading image... Loading image... Loading image... Loading image...

Fabric light boxes are a perfect choice when you need to accentuate a subtle softness of an image. Simply print image on fabric and insert into the aluminum frame. The LED light board underneath the fabric will provide uniform brightness throughout the box.

  • Frame thickness 1” (25mm)
  • Custom sizes up to 60” x 118″ (1500mm x 3000mm)
  • Adds softness and elegance to any image
  • Color temperature available from 2700K to 9000K
  • Easy to insert / remove printed fabric

Series : LIGHT BOXES | Key Features : UL Listed E344011 CE Approved

Product Application

  • Retail shop display stands and cases, such as duty-free shops and luxury brand shops
  • Interior design for hotels/restaurants/office
  • Cosmetic / jewelry display shelves and cabinets
  • Back light source for wall/ceiling displays
  • Menu boards / new item advertisements
  • Art gallery and museum for artistic display
  • Trade show displays
  • 3-Year Warranty

Features

Frame Thickness 1″ (25mm)
Frame / Color Anodized aluminum / Silver and Black
Open / Close Fabric insert
LED One(1) edge, two(2) edges or four(4) edges
Color Temperature 2400K, 2700K, 3200K, 3700K, 4200K, 4700K, 5300K, 6500K, 7500K, 9000K
Dimming By external dimmer (Optional)
Environment Suitable for indoor and dry location

Dimensions & Weight

Minimum Size 10″ W x 10″ L (250mm W x 250mm L)
Maximum Size 60″ W x 118″ L (1,500mm W x 3,000mm L)
Light Guide Panel 1/4″ (6mm) Acrylic with V cut
Slot for Fabric 1/8″ W x 5/8″ D (3mm W x 15mm D)
Weight 2.8 lbs / sq ft (10.5 Kg / sq meter)

General Summary

Input Voltage D.C. 12 Volt or 24 Volt
Power – Consumption 4.0 Watt / ft of LED (12 Watt / meter of LED)
Power Cord 20 AWG, 2 Conductors
Barrel Connector (5.5mm / 2.1mm)
Length : Standard : 5’ (1,500mm), Optional : 10’ (3,000mm)
Power Supply UL class 2 or LPS
D.C. 12 Volt : Max. 5.0 Amp / 60 Watt
D.C. 24 Volt : Max. 4.1 Amp / 98.4 Watt
or CE approved
Operating Temperature -22ºF (-30ºC) ~ 104ºF (+40ºC)
Certification UL Listed (E344011), CE approved

Brightness

Dimension (Inch)Dimension (mm)LEDSurface Brightness (Lux)Power Consumption (W)
24” x 24”609 x 6092 long sides3,60026.4
24” x 36”609 x 9142 long sides3,60038.8
36” x 48”914 x 12192 long sides2,80057.6
36” x 72”914 x 18282 long sides2,30076.6
48” x 96”1219 x 24382 long sides1,80098.0
