LIGHT BOX Ultra Slim

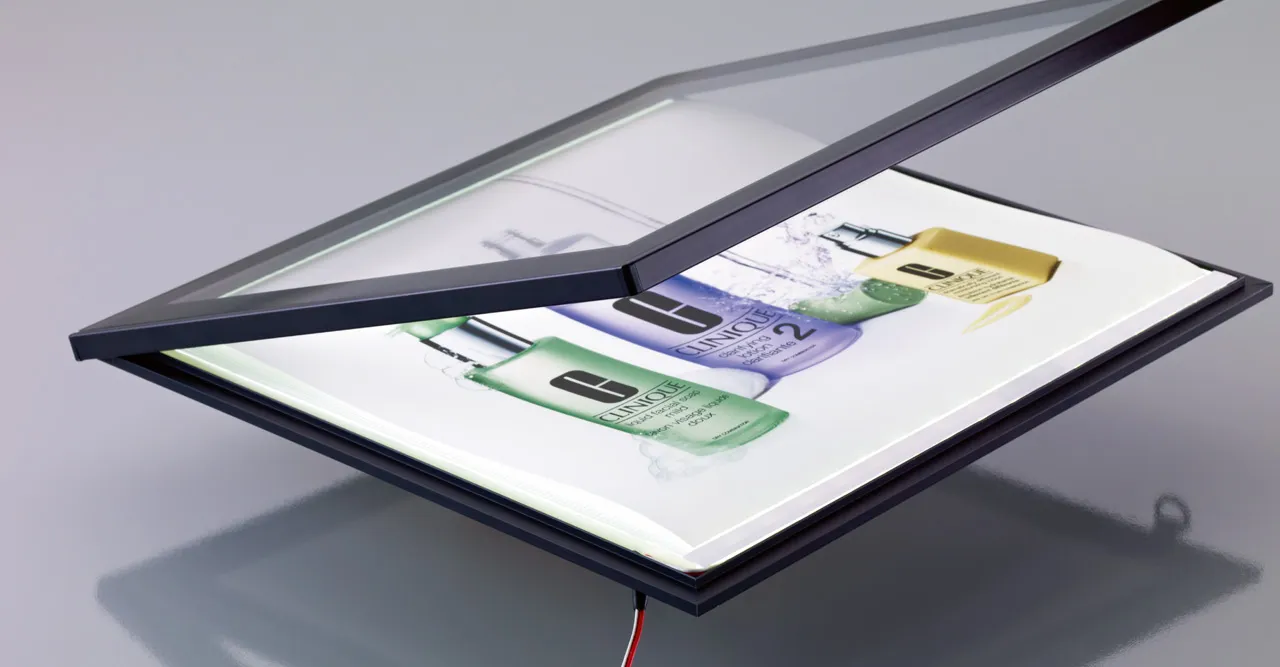

Lightbox_10mm_Product_6

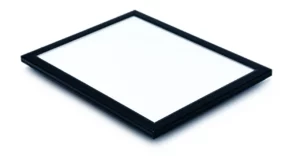

Lightbox_10mm_Product_7

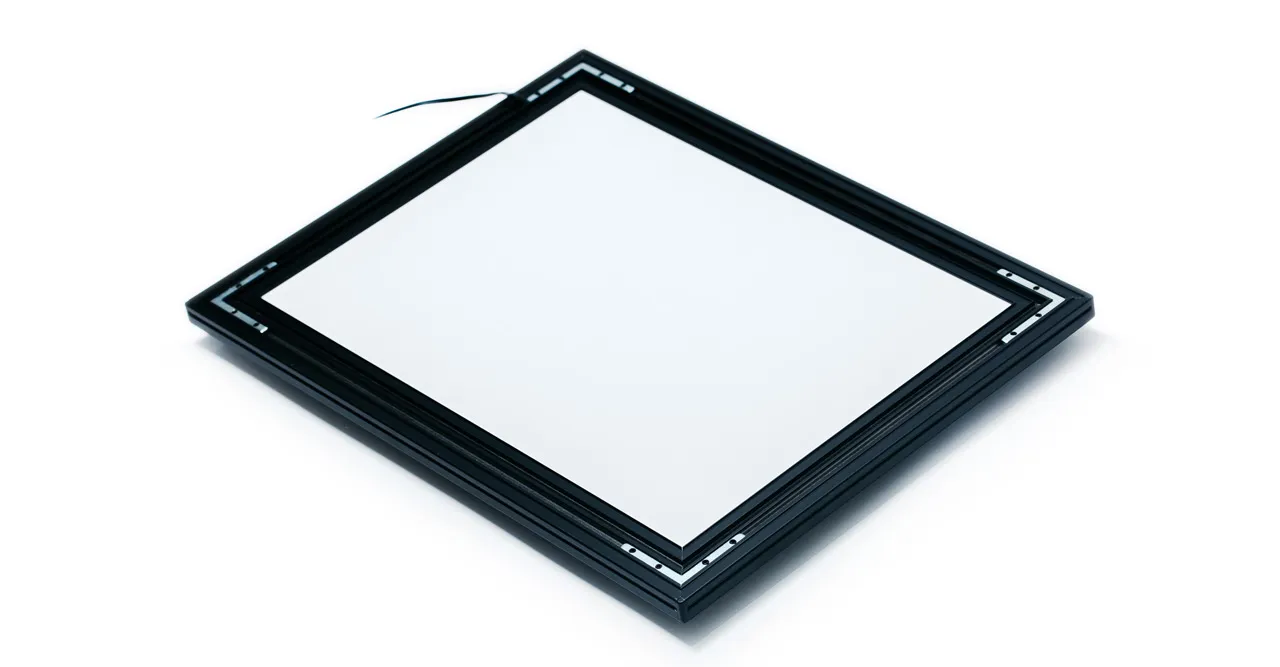

Lightbox_10mm_Product_4

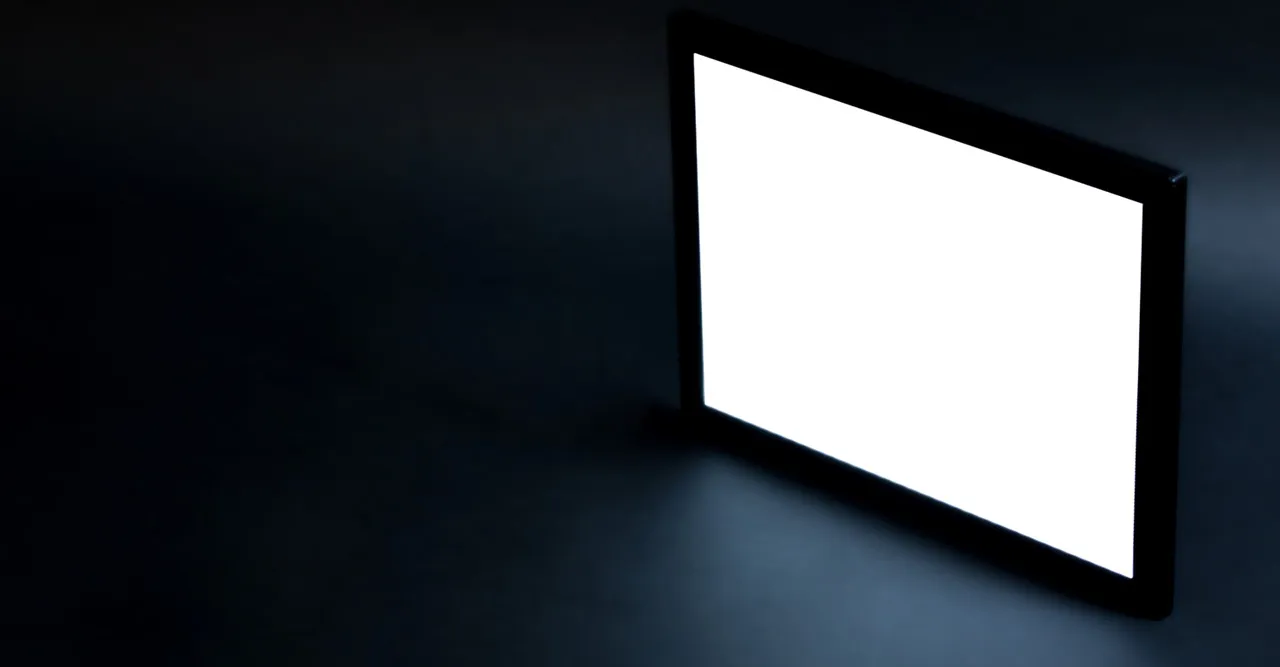

Lightbox_10mm_Product_3

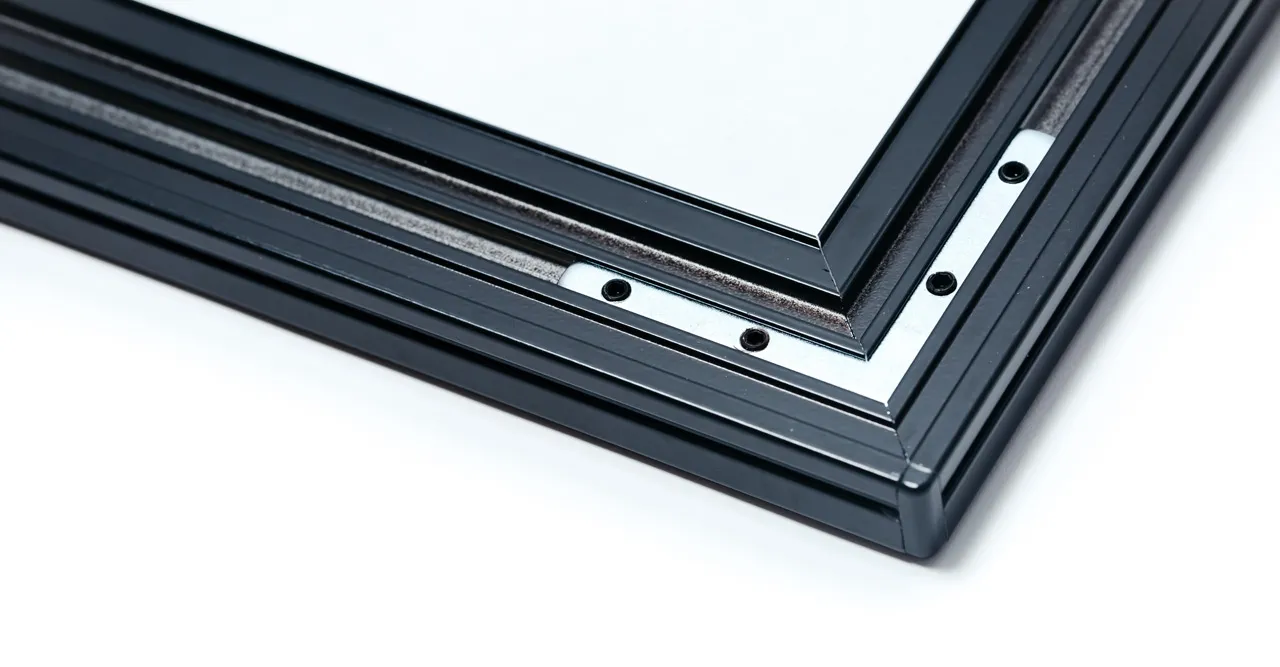

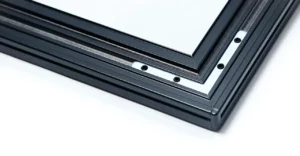

Lightbox_10mm_Product_5

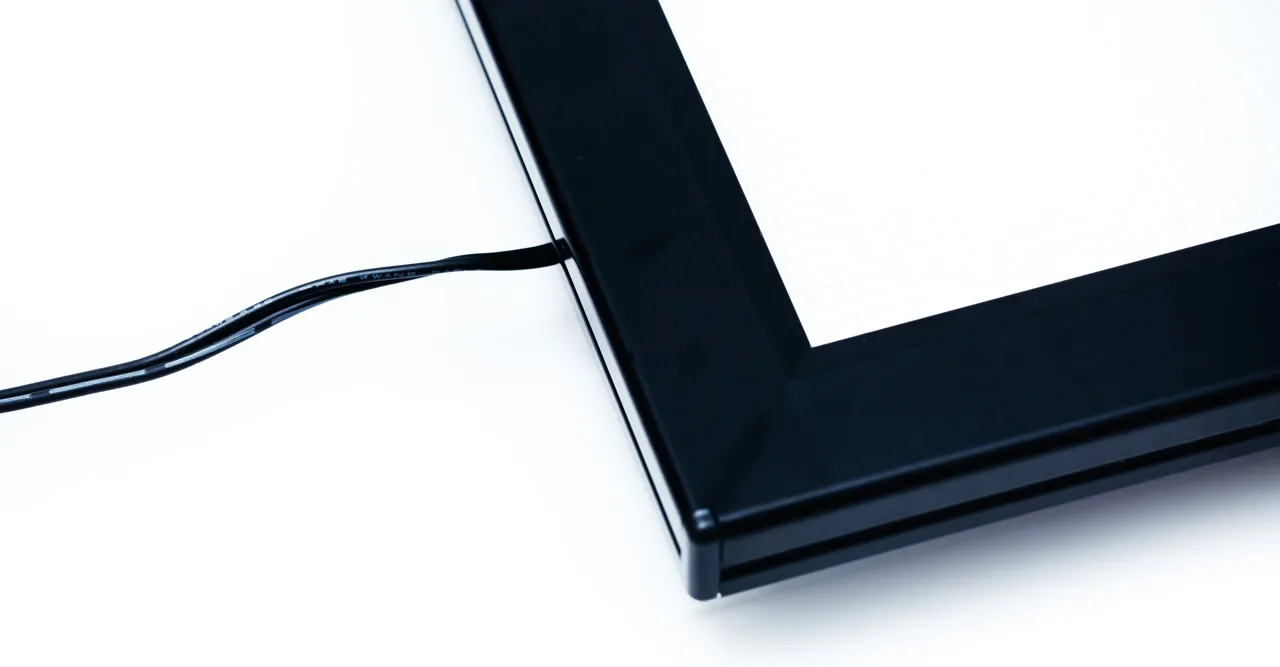

Lightbox_10mm_Product_2

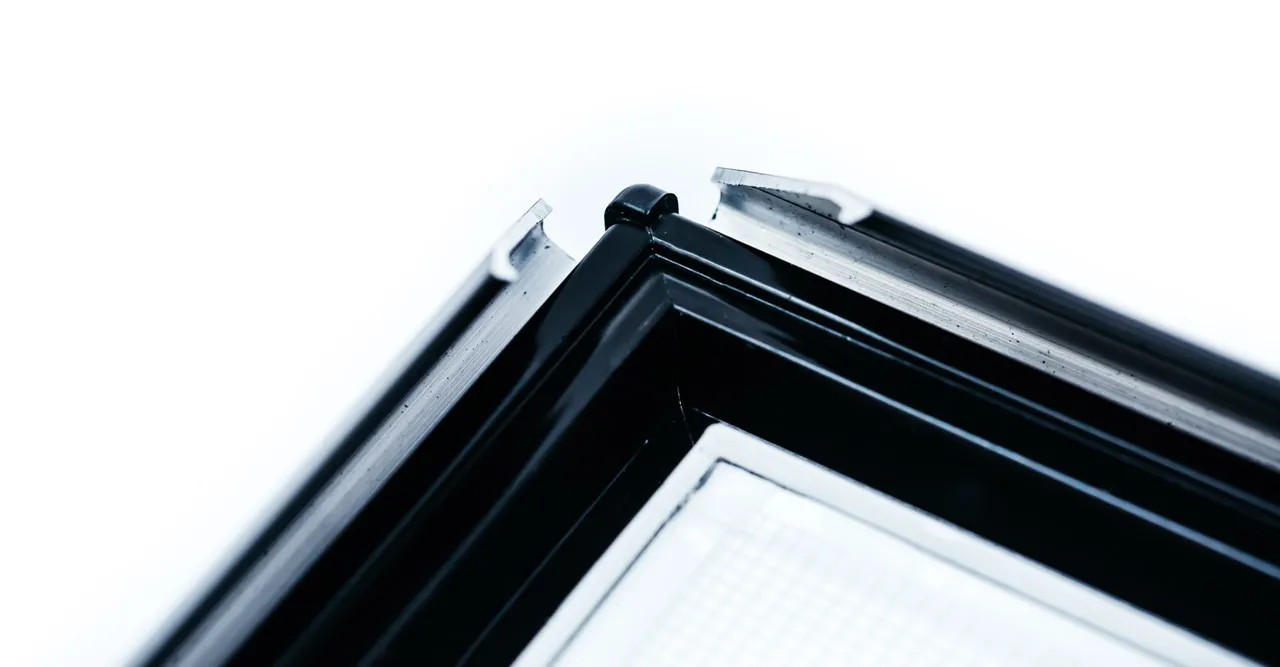

Lightbox_10mm_Product_1

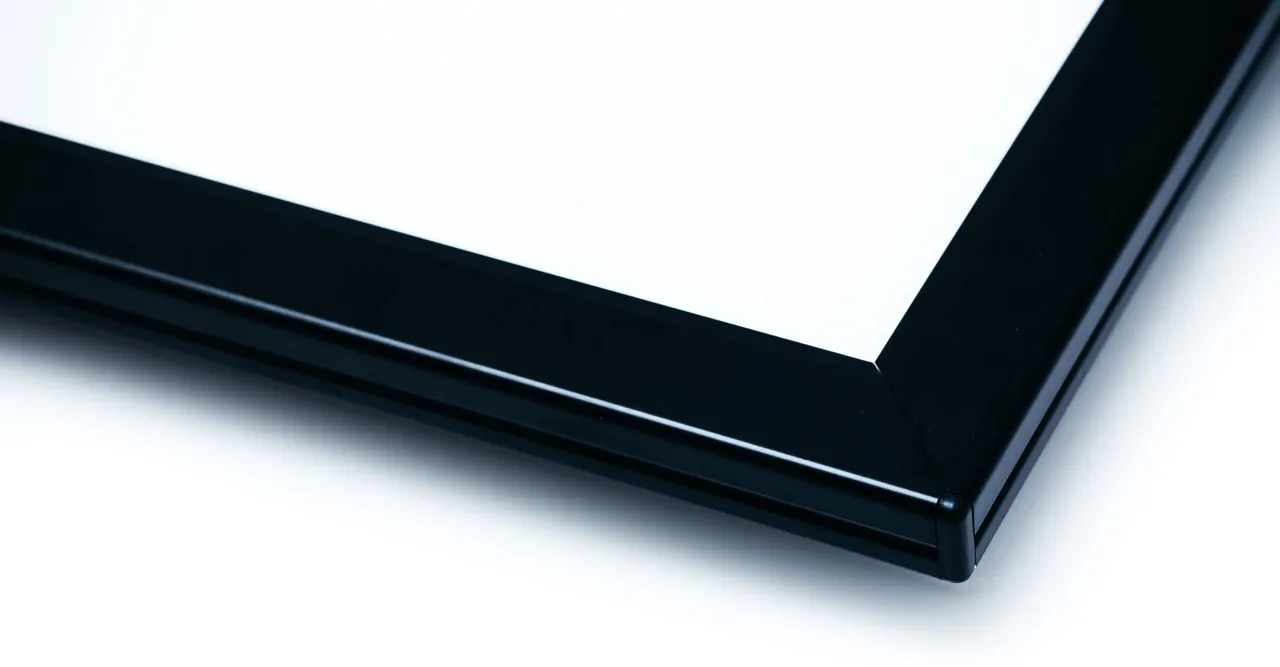

Lightbox_10mm_Product_8
Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image...

Our ultra slim light boxes feature our fine-quality LED light boards enclosed in flawlessly designed, 10mm-thick aluminum snap frame. Add an evenly-lit backlight source to any printed image to attract more attention for your products. It is the world's thinnest light box!

  • Highest brightness and uniformity
  • Ultra-slim frame construction (3/8 inch (10mm) thick)
  • Custom sizes up to 36” x 48″ (900mm x 1200mm)
  • Much lower power consumption
  • Longer life, no maintenance
  • Color temperature 5300K
  • 3 frame colors available – Silver and
    Black

Series : LIGHT BOXES | Key Features : UL Listed E344011 CE Approved

Product Application

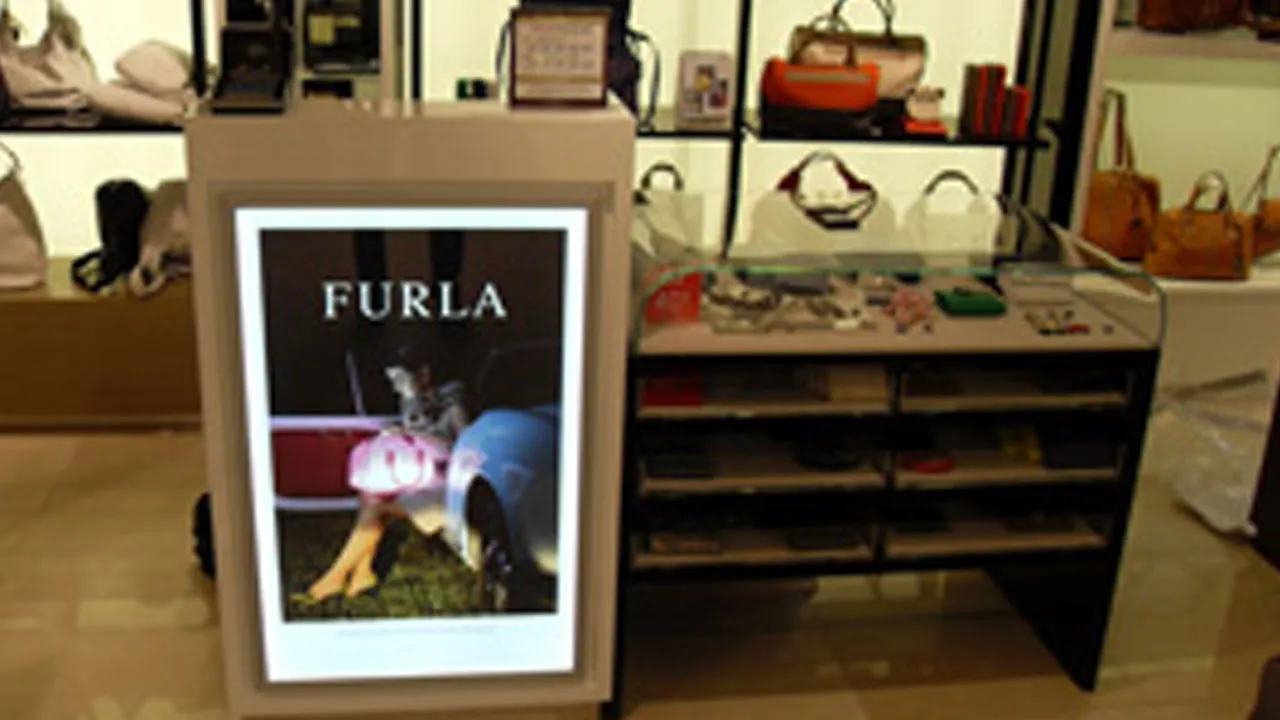

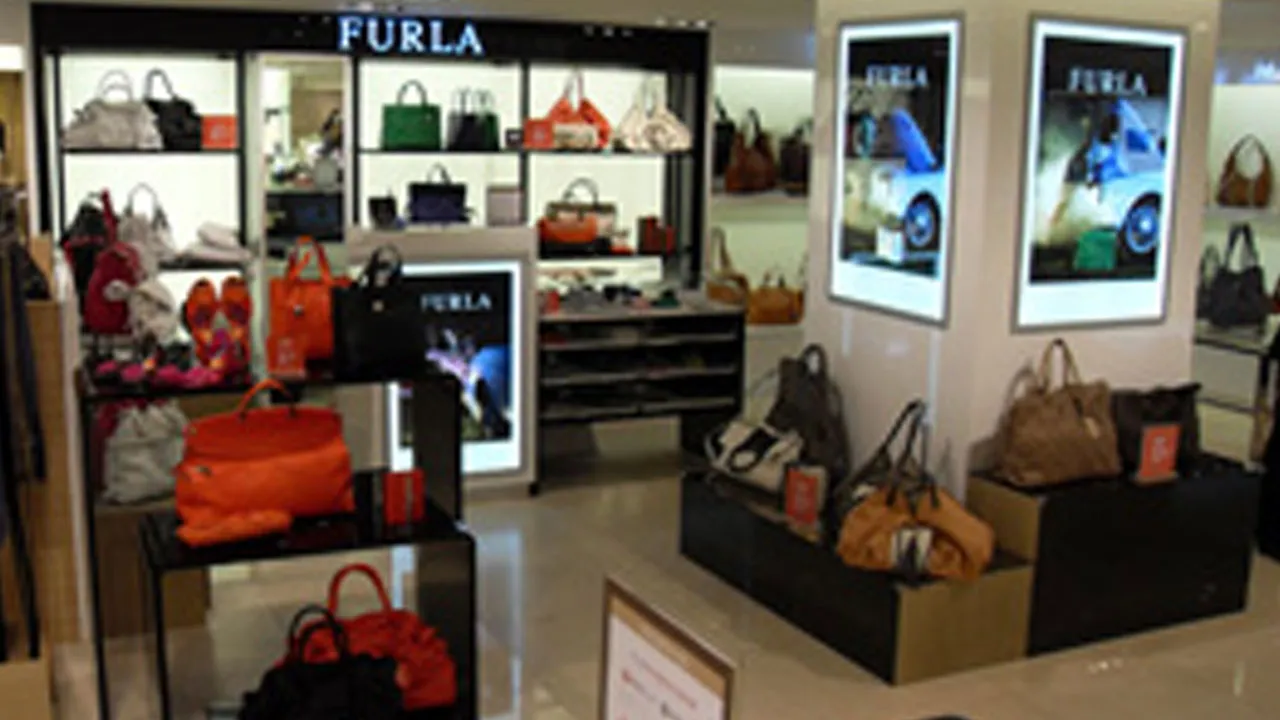

  • Retail shop display stands and cases, such as duty-free shops and luxury brand shops
  • Interior design for hotels/restaurants/office
  • Cosmetic / jewelry display shelves and cabinets
  • Back light source for wall/ceiling displays
  • Menu boards / new item advertisements
  • Art gallery and museum for artistic display
  • Tradeshow displays

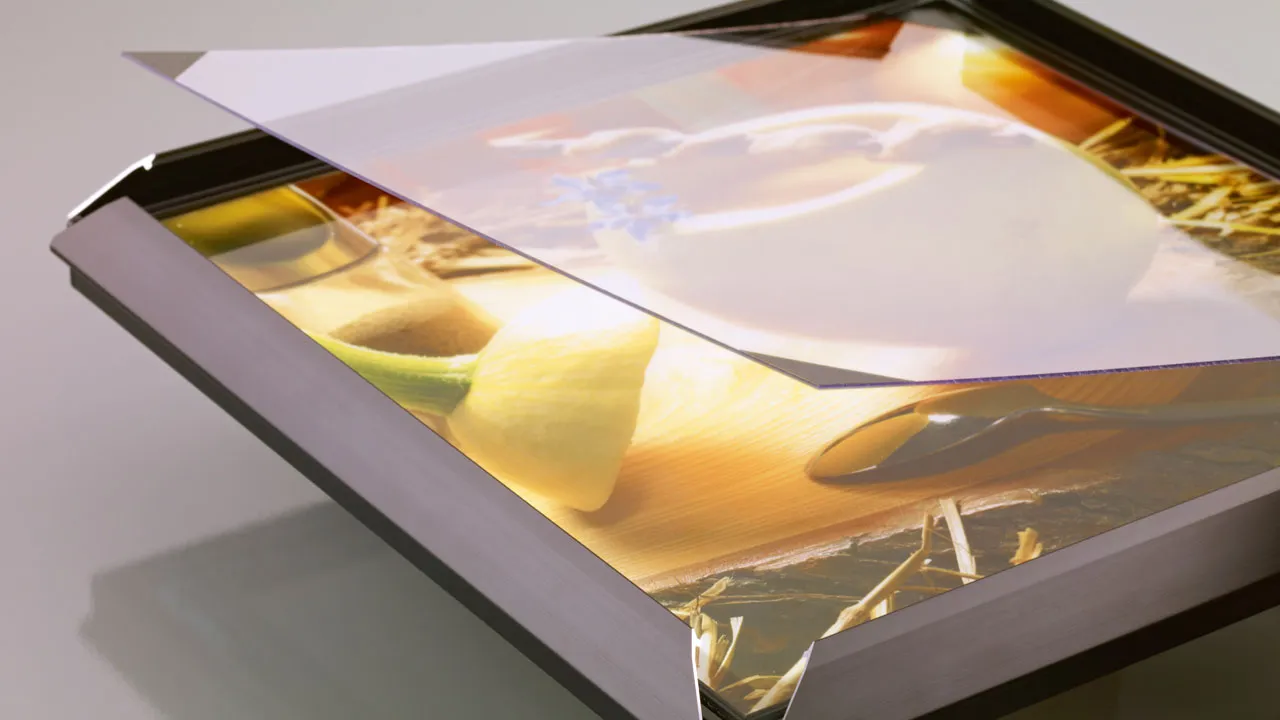

lightbox_single_edge2
lightbox_single_edge1

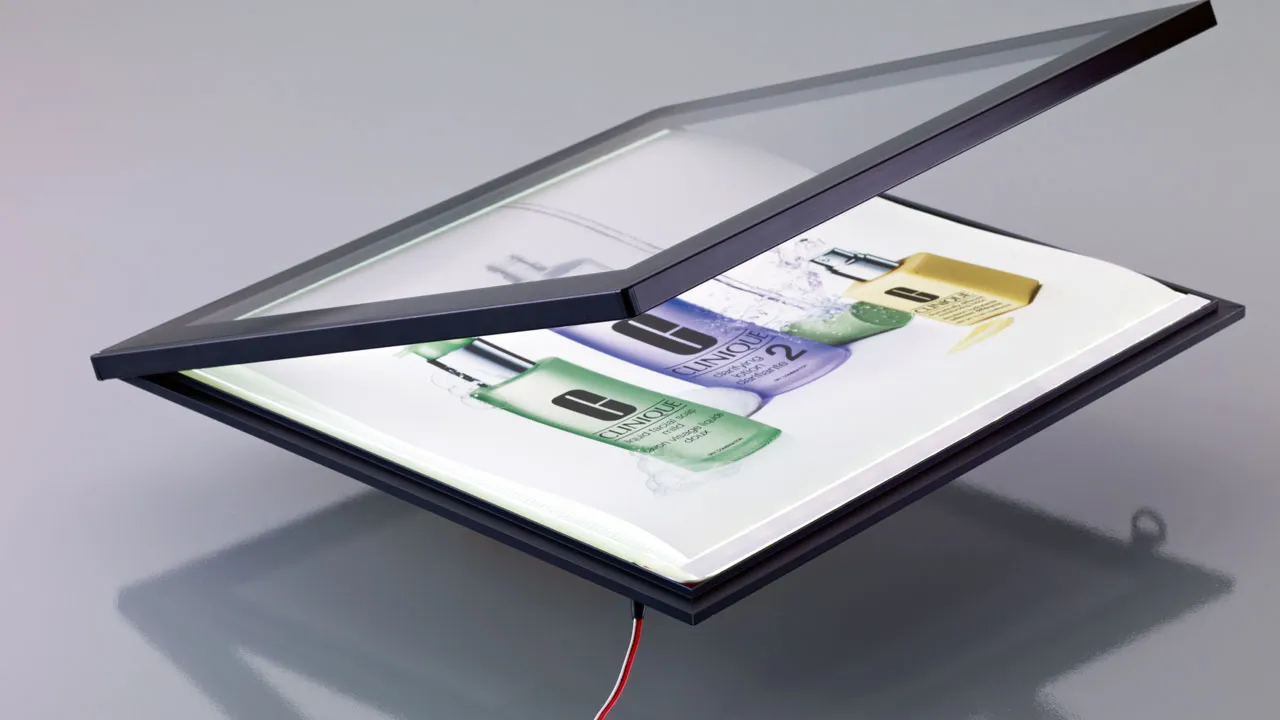

lightbox_single_edge3

Features

Frame Thickness / Frame Width 3/8″ (10mm) / 7/8″ (22mm)
Frame / Color Anodized aluminum / Silver and Black
Open / Close Snap open / close
LED One(1) edge or two(2) edges
Color Temperature 5300K
Dimming By external dimmer (Optional)
Environment Suitable for indoor and dry location

Dimensions & Weight

Minimum Size 6″ W x 6″ L (150mm W x 150mm L)
Maximum Size 36″ W x 48″ L (900mm W x 1,200mm L)
Light Guide Panel 3/16″ (4.5mm) Acrylic with V cut
Weight 2.0 lbs / sq ft (8.0 Kg / sq meter)

General Summary

Safety Design Plastic corner pieces for sharp corner protection
Mounting Wall mount by screws or own mounting clips
Input Voltage D.C. 12 Volt only
Power – Consumption 4.0 Watt / ft of LED (12 Watt / meter of LED)
Power Cord 20 AWG, 2 Conductors
Barrel Connector (5.5mm / 2.1mm)
Length : Standard : 5’ (1,500mm), Optional : 10’ (3,000mm)
Power Supply UL class 2 or LPS
D.C. 12 Volt : Max. 5 Amp / 60 Watt
D.C. 24 Volt : Max. 4.1 Amp / 98.4 Watt
or CE approved
Operating Temperature -22ºF (-30ºC) ~ 104ºF (+40ºC)
Certification UL Listed (E344011), CE approved

Brightness

Dimension (Inch)Dimension (mm)LEDSurface Brightness (Lux)Power Consumption (W)
12” x 12”304 x 3041 long side3,5003.0
18” x 24”457 x 6092 long sides5,00013.2
24” x 24”609 x 6092 long sides3,60013.2
24” x 36”609 x 9142 long sides3,60020.4
36” x 48”914 x 12192 long sides2,80027.6
