LIGHT BOX Double-sided

lightbox_40mm_product1
lightbox_40mm_product7
lightbox_40mm_product2
lightbox_40mm_product6
lightbox_40mm_product5
lightbox_40mm_product3
lightbox_40mm_product4
lightbox_40mm_product8
Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image...

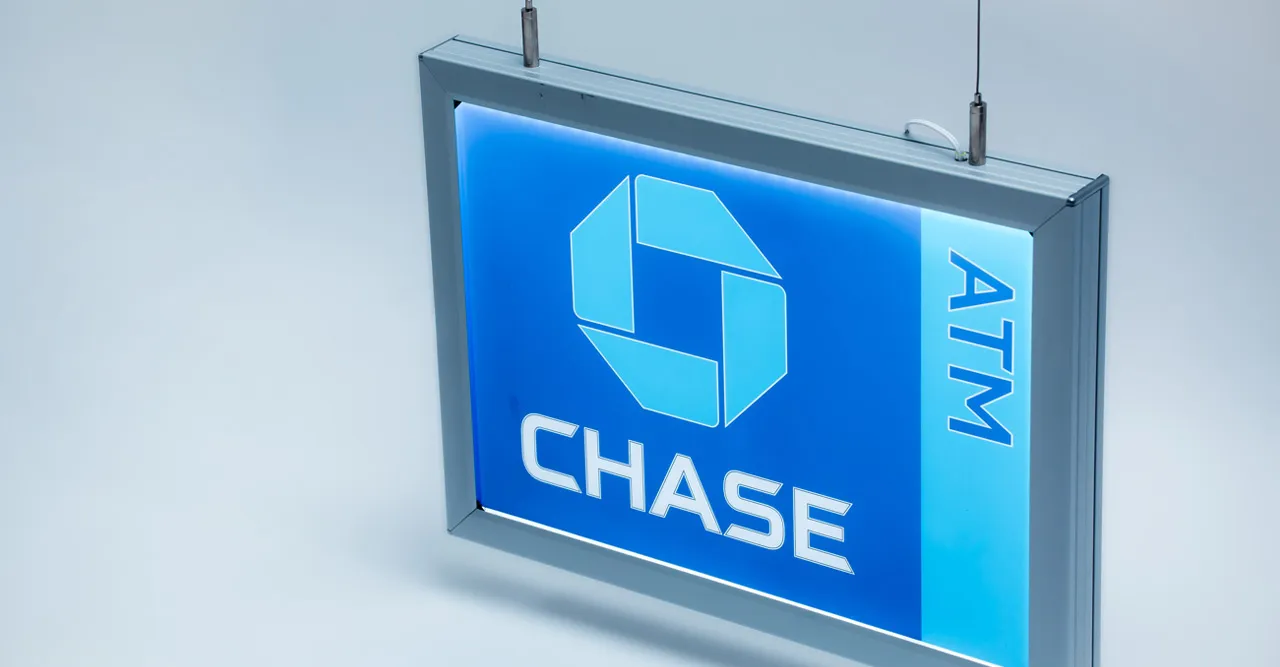

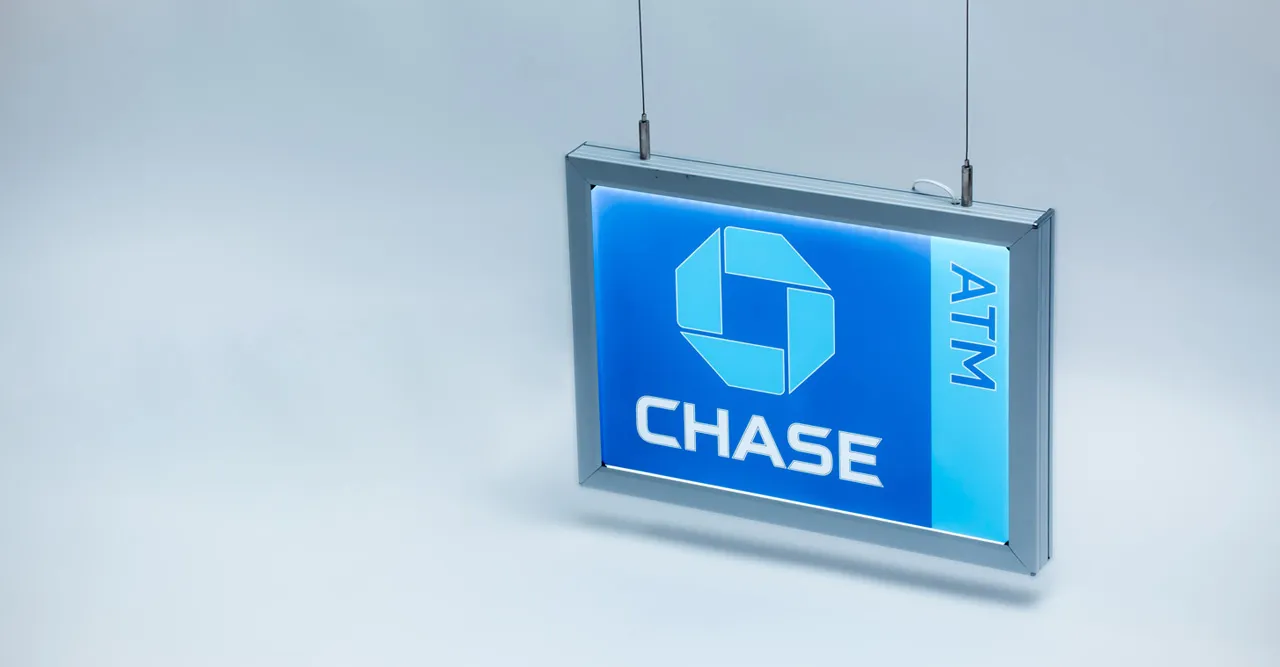

One light box with twice the advertising effect! Hang this Double-Sided LED Light Box in open areas for attention from both directions. Features the same high-quality Feelis LED Light Board for light uniformity.

  • Frame thickness 1-9/16” (40mm)
  • Custom sizes up to 48” x 96″ (1200mm x 2400mm)
  • Much lower power consumption
  • Longer life, no maintenance
  • Color temperature available from 2700K to 9000K
  • 3 frame colors available – Silver, Black, and White

Series : LIGHT BOXES | Key Features : UL Listed E344011 CE Approved

Product Application

  • Retail shop display stands and cases, such as duty-free shops and luxury brand shops
  • Interior design for hotels/restaurants/office
  • Cosmetic / jewelry display shelves and cabinets
  • Back light source for wall/ceiling displays

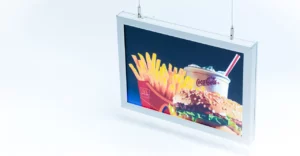

  • Menu boards / new item advertisements
  • Art gallery and museum for artistic display
  • Tradeshow displays

lightbox_double_40_1
lightbox_double_40_3
lightbox_double_40_2
lightbox_double_40_4
lightbox_double_40_5

Features

Frame Thickness / Frame Width 1-9/16″ (40mm) / 1-3/16” (30mm)
Frame / Color Anodized aluminum / Silver and Black
Open / Close Snap open / close
LED One(1) edge, two(2) edges or four(4) edges
Color Temperature 2400K, 2700K, 3200K, 3700K, 4200K, 4700K, 5300K, 6500K, 7500K, 9000K
Dimming By external dimmer (Optional)
Environment Suitable for indoor and dry location

Dimensions & Weight

Minimum Size 24″ W x 24″ L (600mm W x 600mm L)
Maximum Size 48″ W x 96″ L (1,200mm W x 1,200mm L)
Light Guide Panel 3/16″ (5mm) Acrylic with V cut
Weight 4.2 lbs / sq ft (16.5 Kg / sq meter)

General Summary

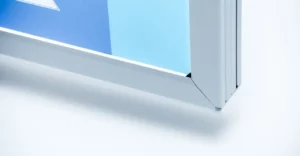

Safety Design Plastic corner pieces for sharp corner protection

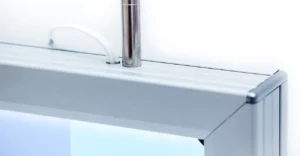

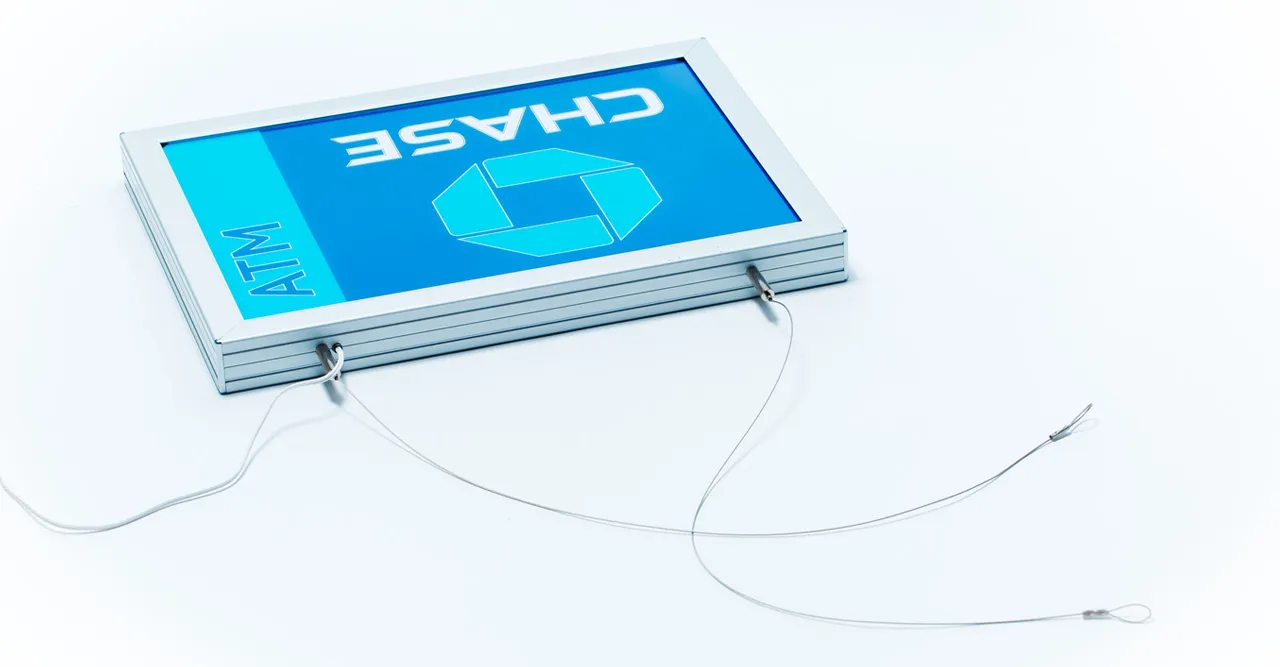

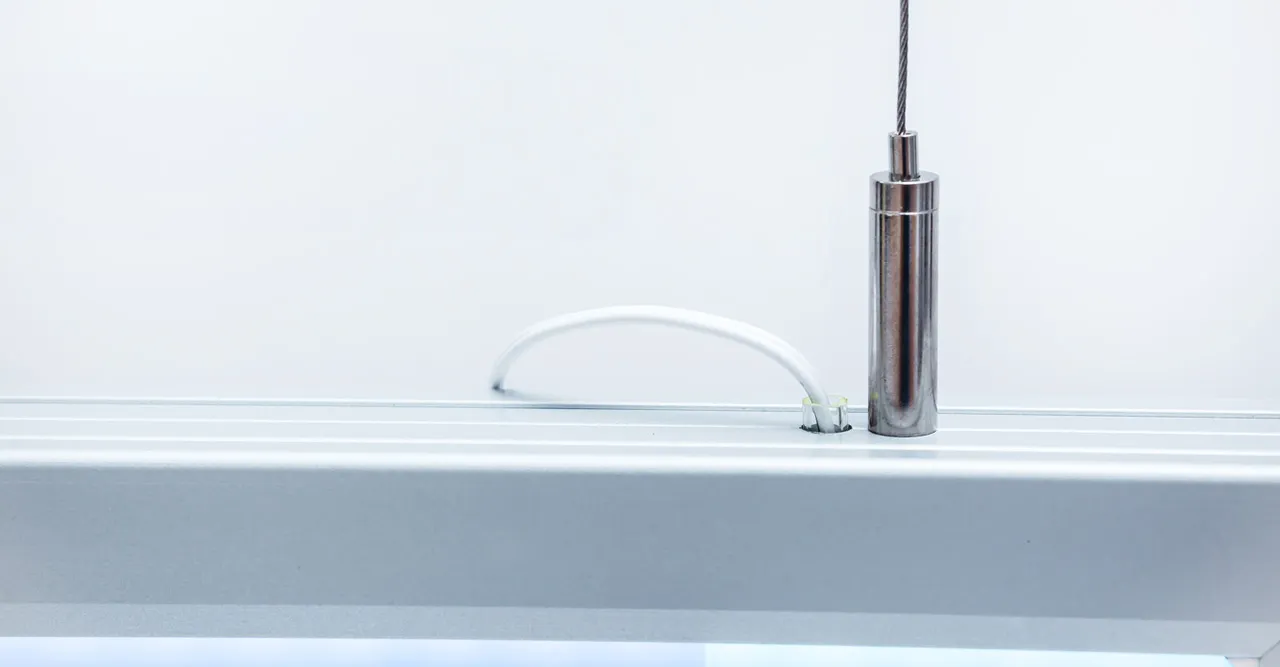

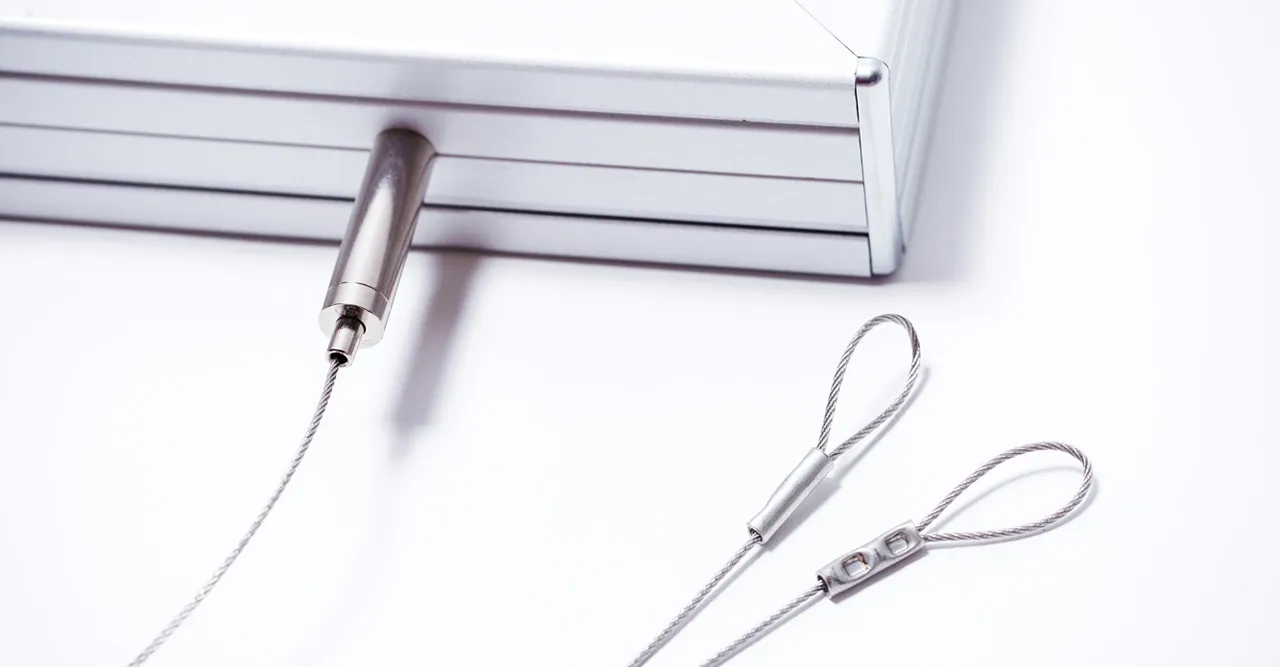

Mounting Suspending by wires or rods
Input Voltage D.C. 12 Volt or 24 Volt
Power – Consumption 4.0 Watt / ft of LED (12 Watt / meter of LED)
Power Cord 20 AWG, 2 Conductors
Barrel Connector (5.5mm / 2.1mm)
Length : Standard : 5’ (1,500mm), Optional : 10’ (3,000mm)
Power Supply UL class 2 or LPS
D.C. 12 Volt : Max. 5.0 Amp / 60 Watt
D.C. 24 Volt : Max. 4.1 Amp / 98.4 Watt
or CE approved
Operating Temperature -22ºF (-30ºC) ~ 104ºF (+40ºC)
Certification UL Listed (E344011), CE approved

Brightness

Dimension (Inch)Dimension (mm)LEDSurface Brightness (Lux)Power Consumption (W)
24” x 24”609 x 6092 long sides3,60026.4
24” x 36”609 x 9142 long sides3,60038.8
36” x 48”914 x 12192 long sides2,80057.6
36” x 72”914 x 18282 long sides2,30076.6
48” x 96”1219 x 24382 long sides1,80098.0
