LIGHT BOX Slim

Lightbox_16mm_Product_7
Lightbox_16mm_Product_2
Lightbox_16mm_Product_6
Lightbox_16mm_Product_3
Lightbox_16mm_Product_1

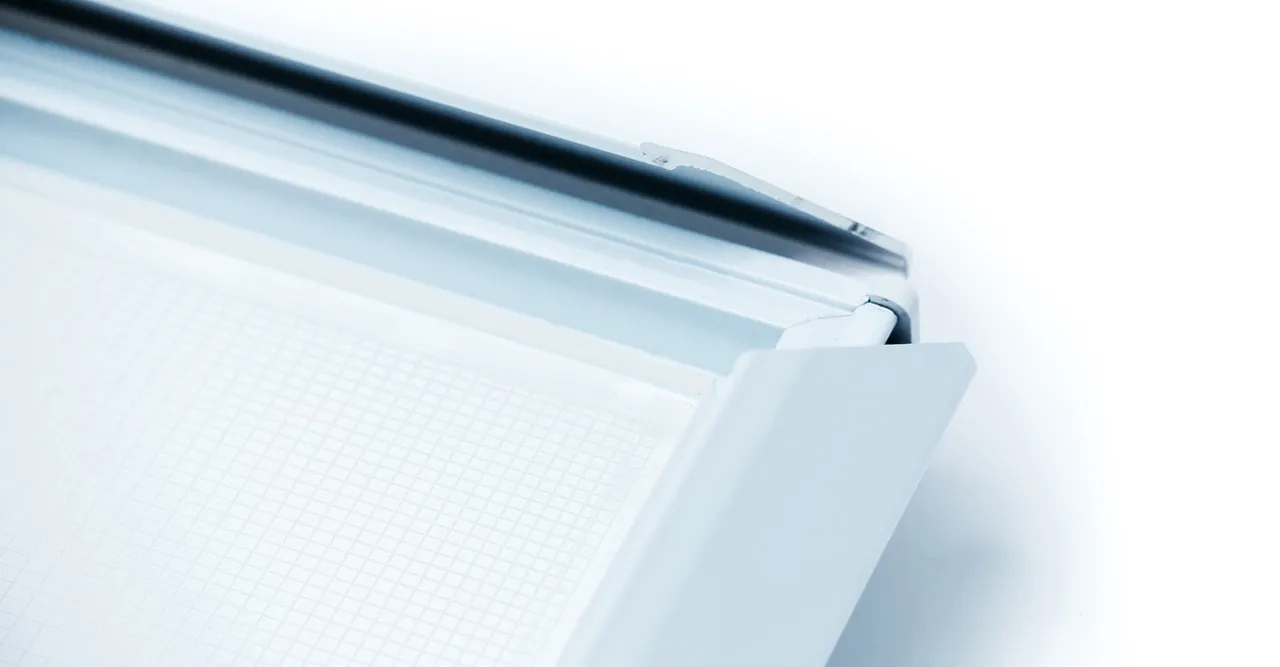

Lightbox_16mm_Product_4
Lightbox_16mm_Product_5
Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image...

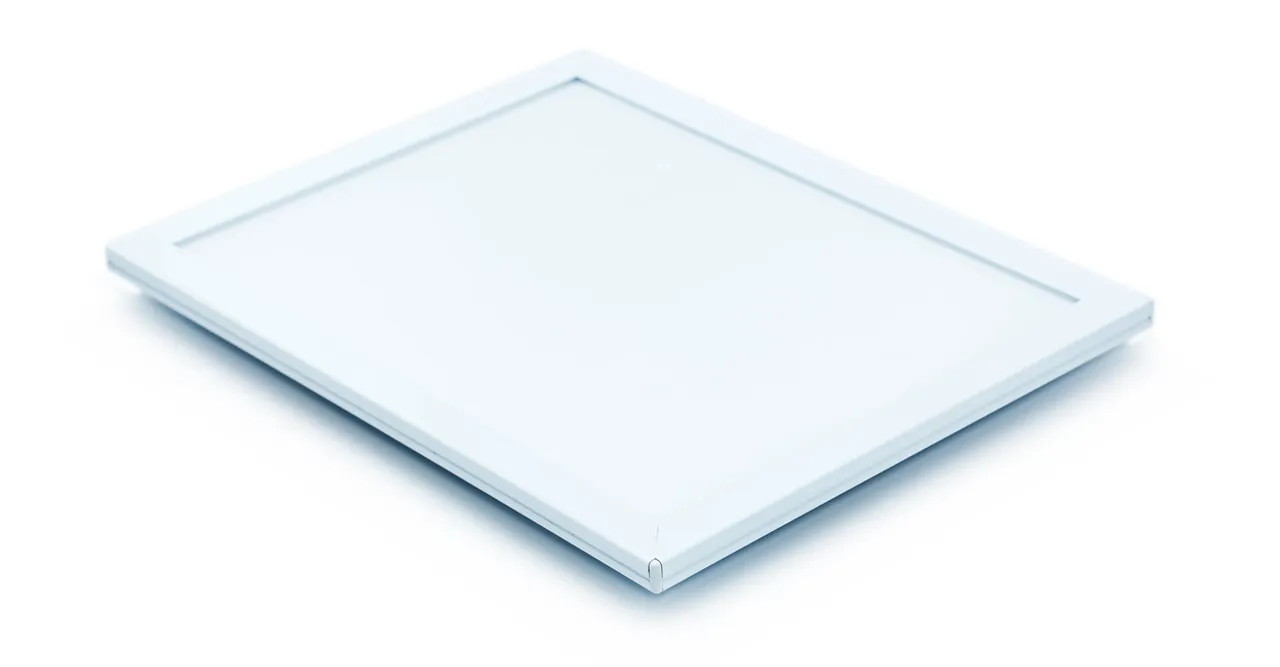

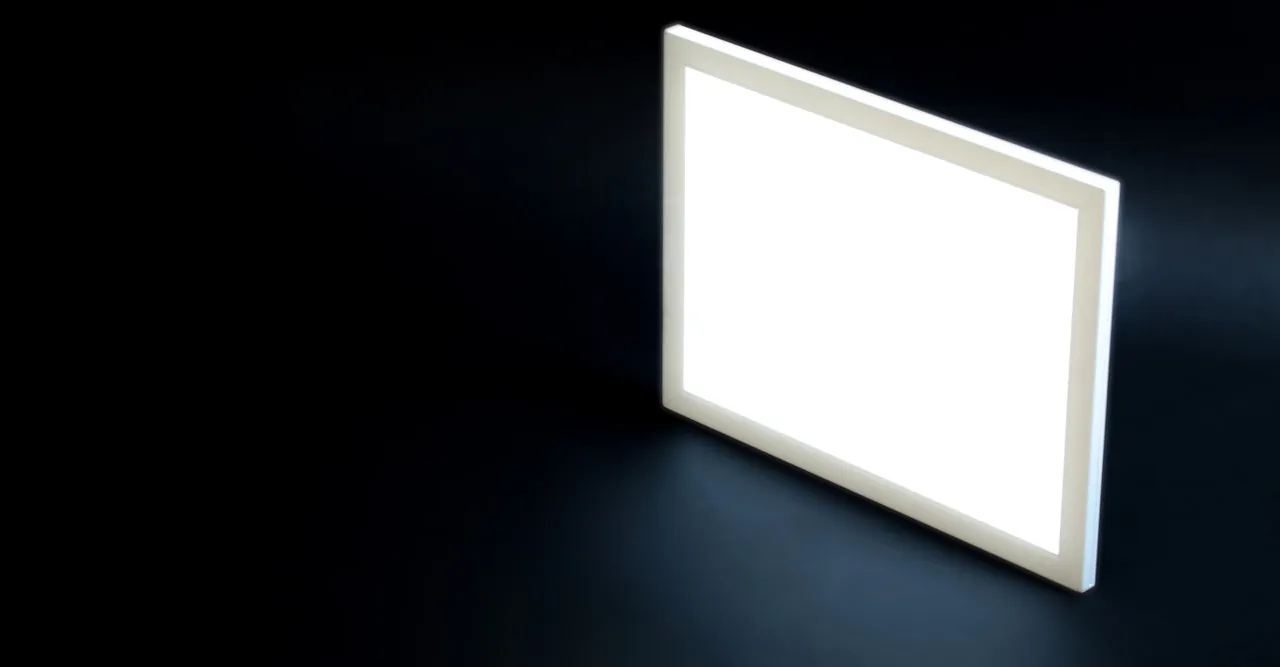

Our slim light boxes feature our fine-quality LED light boards enclosed in flawlessly designed, 16mm-thick aluminum snap frame. Add an evenly-lit backlight source to any printed image to attract more attention for your products.

  • Highest brightness and uniformity
  • Ultra-slim frame construction (5/8 inch (16mm) thick)
  • Custom sizes up to 48” x 96″ (1200mm x 2400mm)
  • Much lower power consumption
  • Longer life, no maintenance
  • Color temperature available from 2700K to 9000K
  • 3 frame colors available – Silver, Black, and White

Series : LIGHT BOXES | Key Features : UL Listed E344011 CE Approved

Product Application

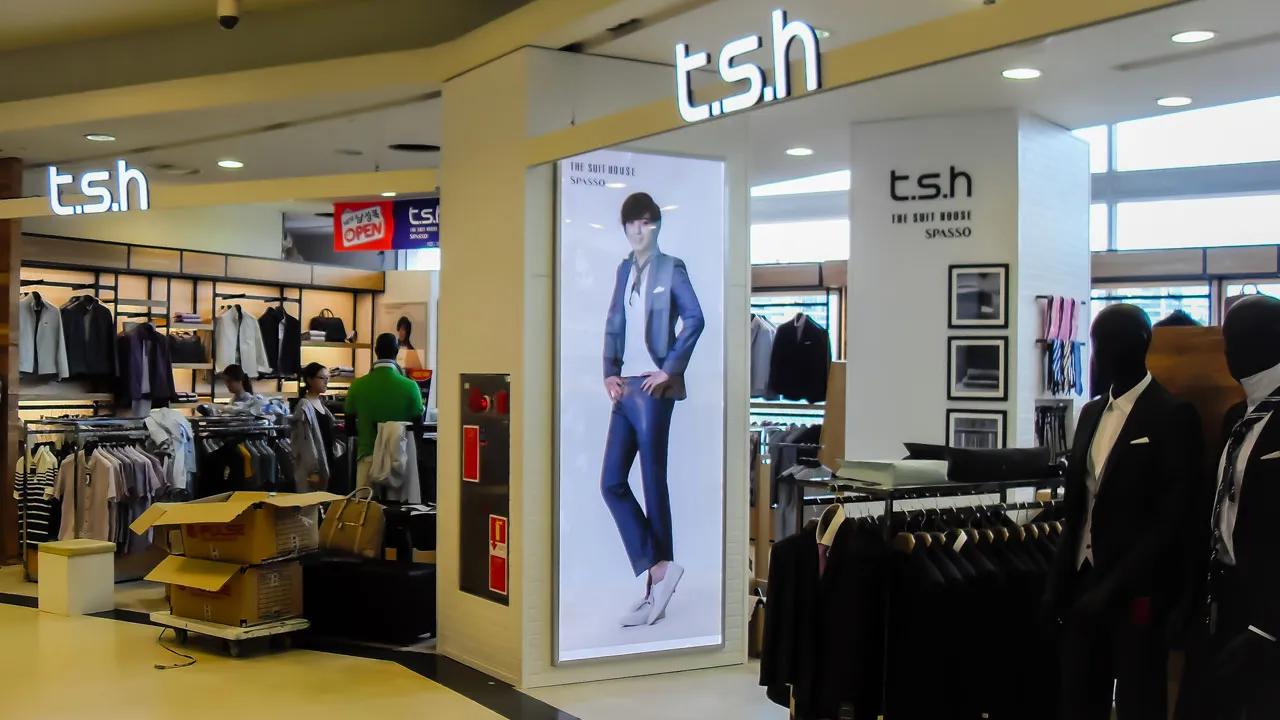

  • Retail shop display stands and cases, such as duty-free shops and luxury brand shops
  • Interior design for hotels/restaurants/office
  • Cosmetic / jewelry display shelves and cabinets
  • Back light source for wall/ceiling displays
  • Menu boards / new item advertisements
  • Art gallery and museum for artistic display
  • Trade show displays

lightbox_single_edge1

Features

Frame Thickness / Frame Width 5/8″ (16mm) / 1″ (25mm)
Frame / Color Anodized aluminum / Silver, Black and White

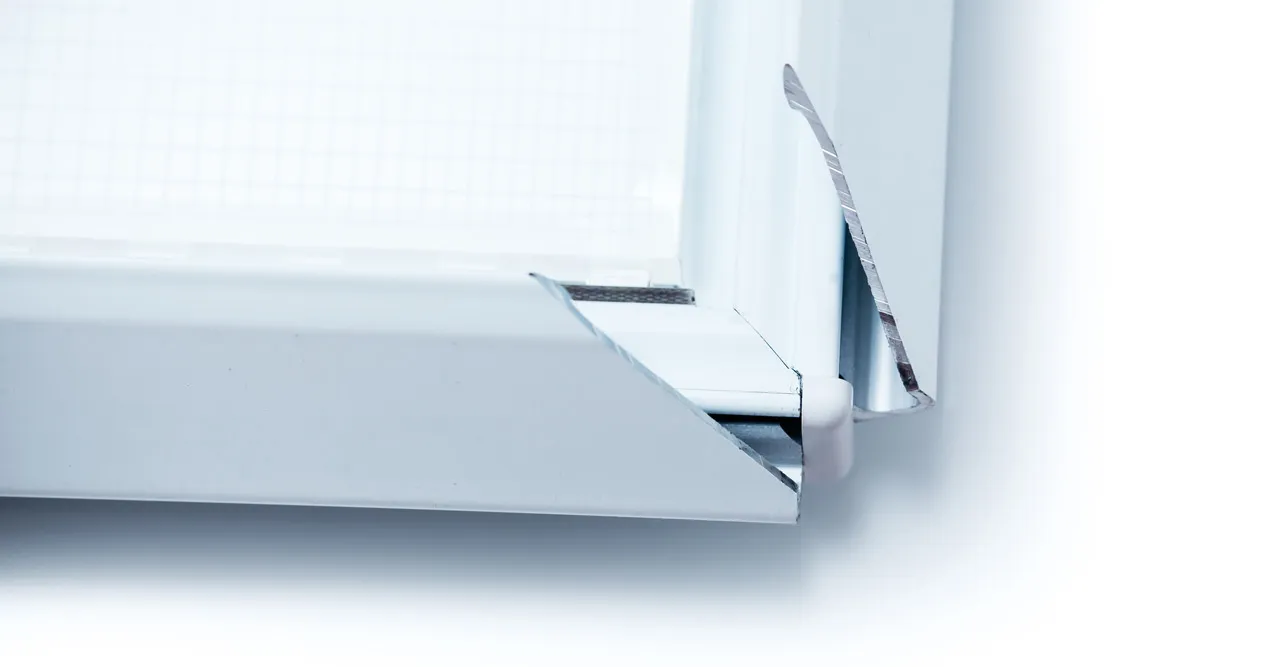

Open / Close Snap open / close
LED One(1) edge, two(2) edges or four(4) edges
Color Temperature 2400K, 2700K, 3200K, 3700K, 4200K, 4700K, 5300K, 6500K, 7500K, 9000K
Dimming By external dimmer (Optional)
Environment Suitable for indoor and dry location

Dimensions & Weight

Minimum Size 6″ W x 6″ L (150mm W x 150mm L)
Maximum Size 48″ W x 96″ L (1,200mm W x 2,400mm L)
Light Guide Panel 1/4″ (6mm) Acrylic with V cut
Weight 3.0 lbs / sq ft (11.0 Kg / sq meter)

General Summary

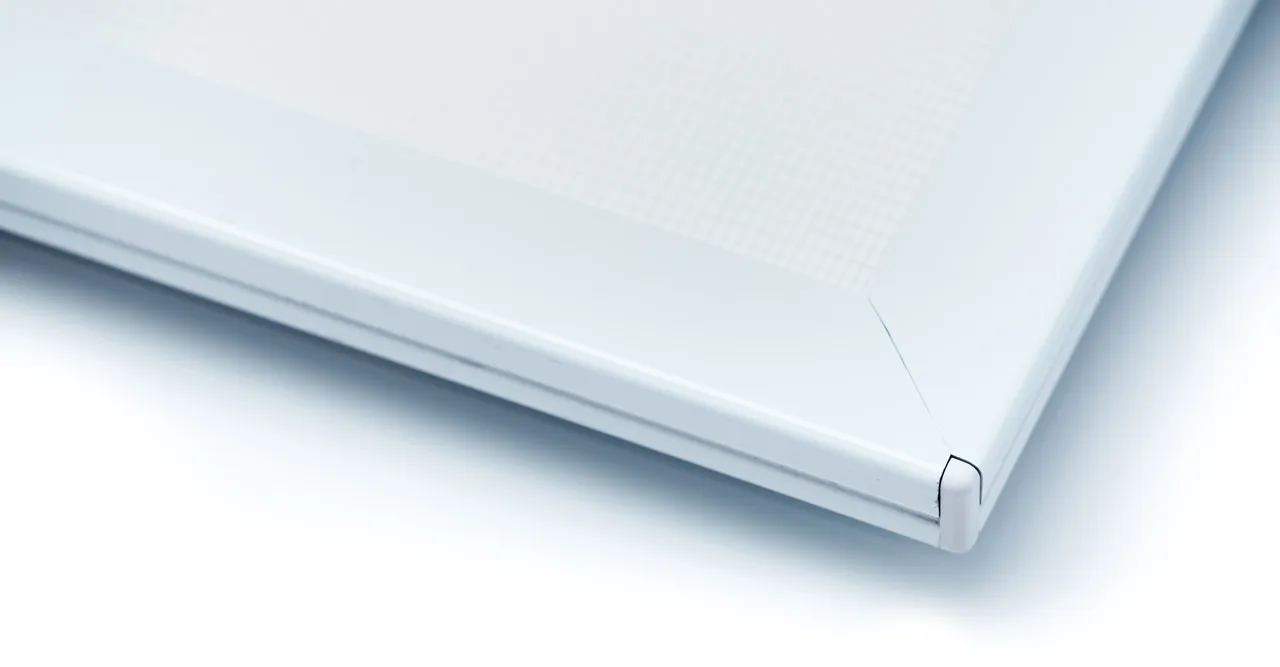

Safety Design Plastic corner pieces for sharp corner protection
Mounting Wall mount by screws or own mounting clips
Input Voltage D.C. 12 Volt or 24 Volt
Power – Consumption 4.0 Watt / ft of LED (12 Watt / meter of LED)
Power Cord 20 AWG, 2 Conductors

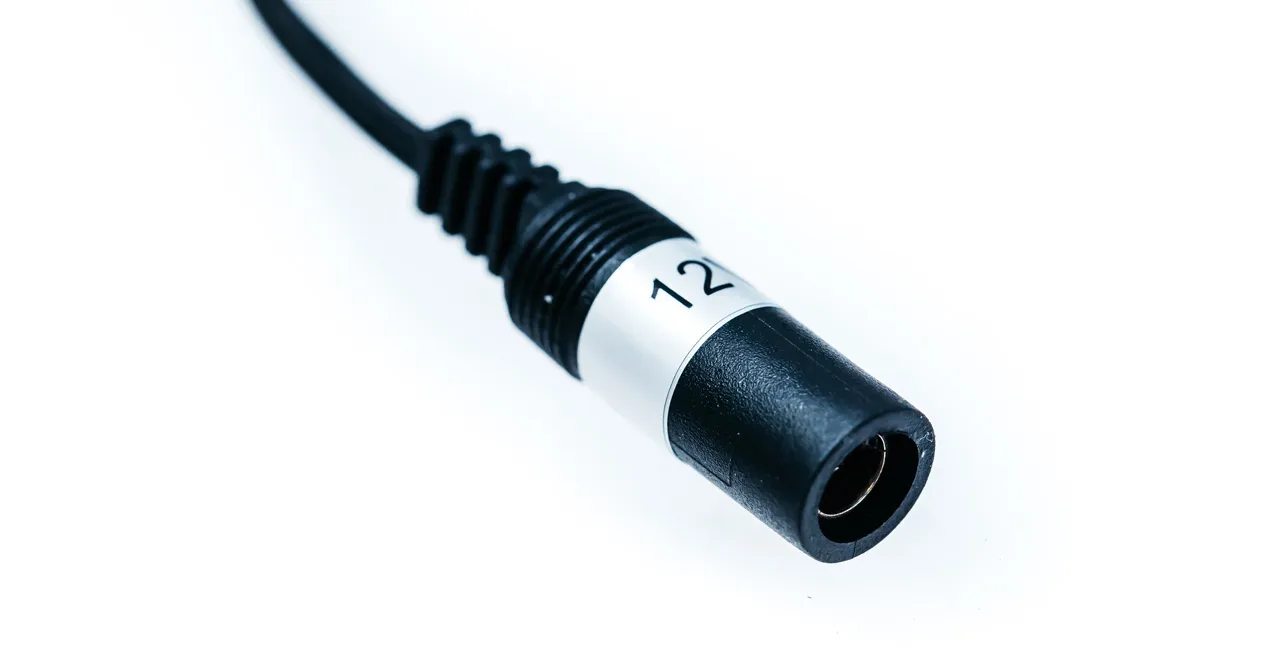

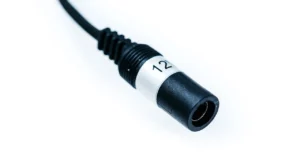

Barrel Connector (5.5mm / 2.1mm)
Length : Standard : 5’ (1,500mm), Optional : 10’ (3,000mm)
Power Supply UL class 2 or LPS
D.C. 12 Volt : Max. 5 Amp / 60 Watt
D.C. 24 Volt : Max. 4.1 Amp / 98.4 Watt
or CE approved
Operating Temperature -22ºF (-30ºC) ~ 104ºF (+40ºC)
Certification UL Listed (E344011), CE approved

Brightness

Dimension (Inch)Dimension (mm)LEDSurface Brightness (Lux)Power Consumption (W)
12” x 12”304 x 3041 long side3,5003.0
18” x 24”457 x 6092 long sides5,00013.2
24” x 24”609 x 6092 long sides3,60013.2
24” x 36”609 x 9142 long sides3,60020.4
36” x 48”914 x 12192 long sides2,80027.6
36” x 72”914 x 18282 long sides2,50043.3
48” x 96”1219 x 24382 long sides2,00056.4
