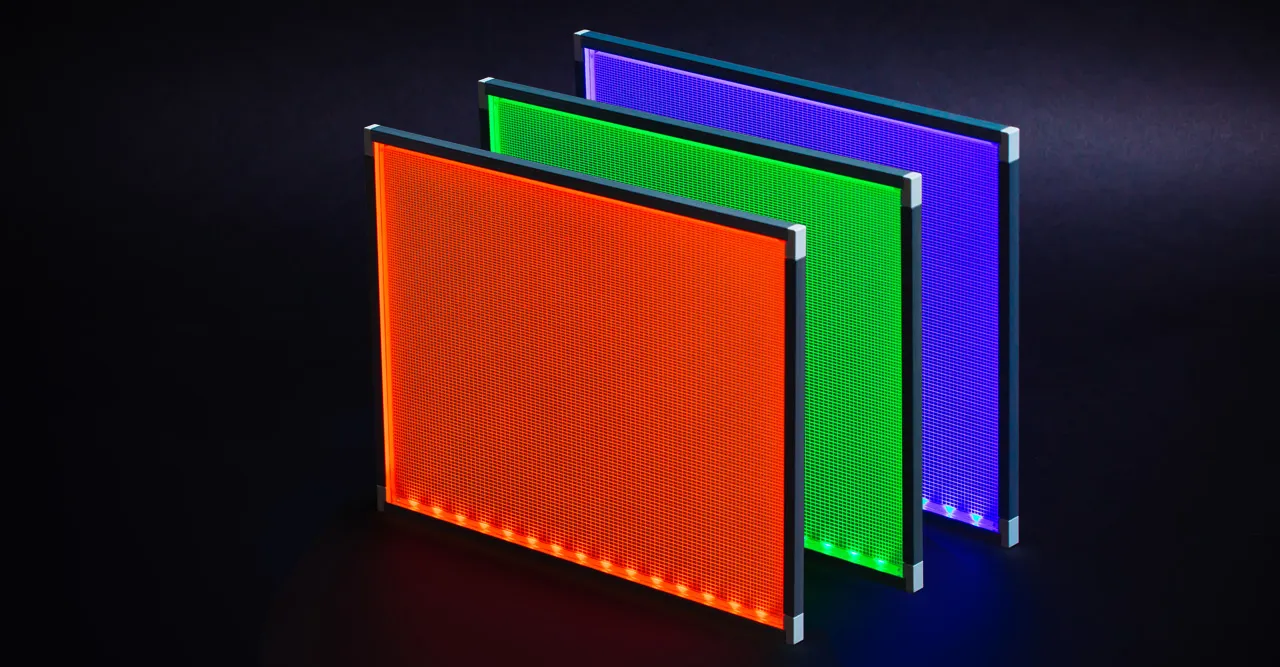

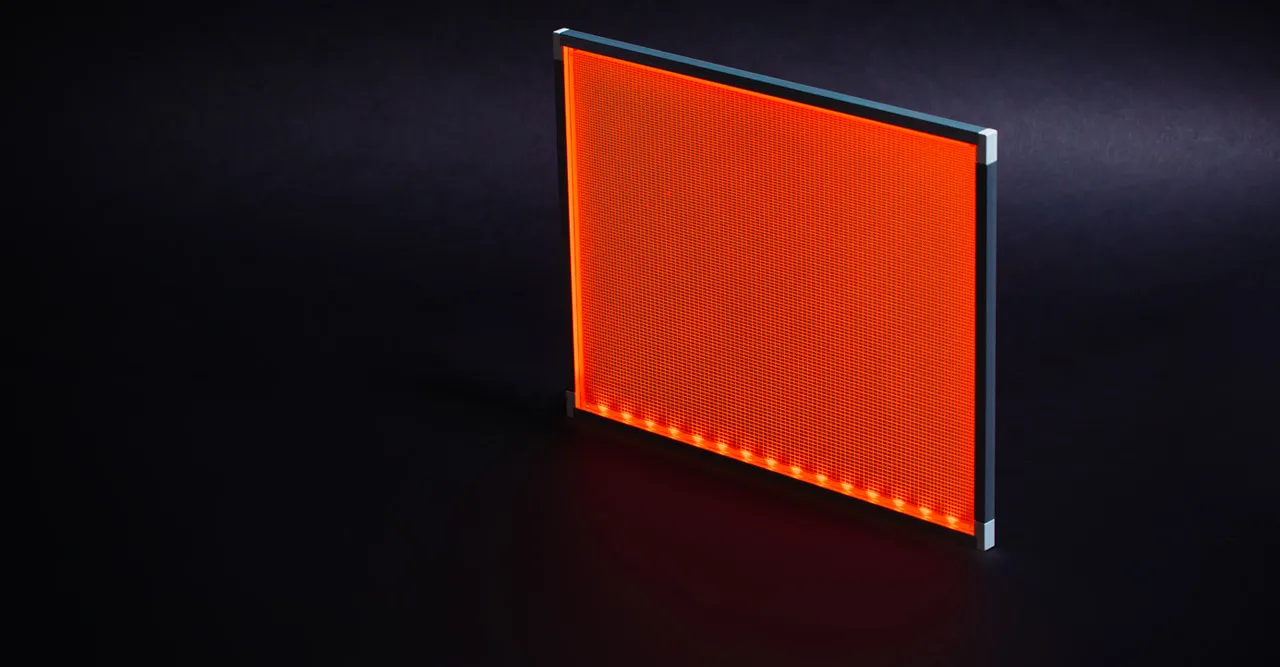

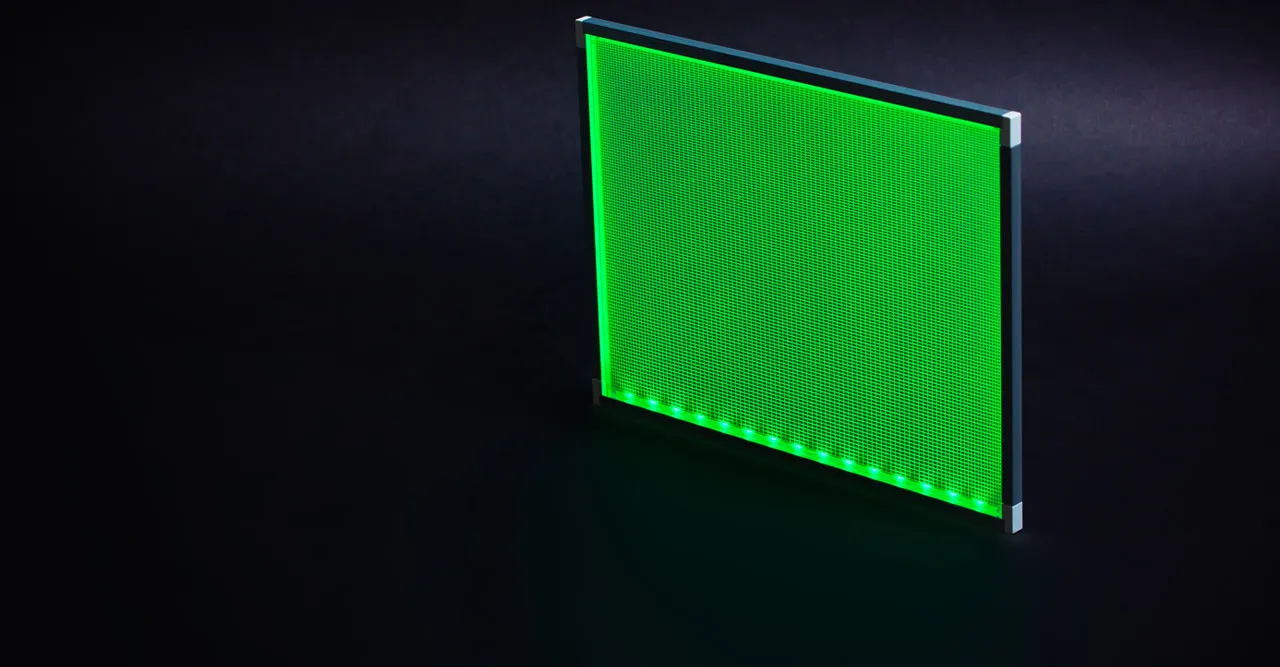

Let these vibrant colors do the talking! RGB light boards are hard to miss when put on display in public areas. They are easy to operate, low-maintenance, and highly effective. RGB option is available for our Light Box products as well.

  • Highest brightness and uniformity
  • Ultra-slim frame construction (5/16 inch (8mm) thick)
  • Custom sizes up to 60″ x 118″ (1500mm x 3000mm)

Product Application

  • Retail shop display stands and cases, such as duty-free shops and luxury brand shops
  • Interior design for hotels/restaurants/office
  • Cosmetic / jewelry display shelves and cabinets
  • Back light source for wall/ceiling displays
  • Menu boards / new item advertisements
  • Art gallery and museum for artistic display
  • Tradeshow displays

Features

Frame Thickness 5/16″ (8mm)
Heat Sinking By aluminum channel

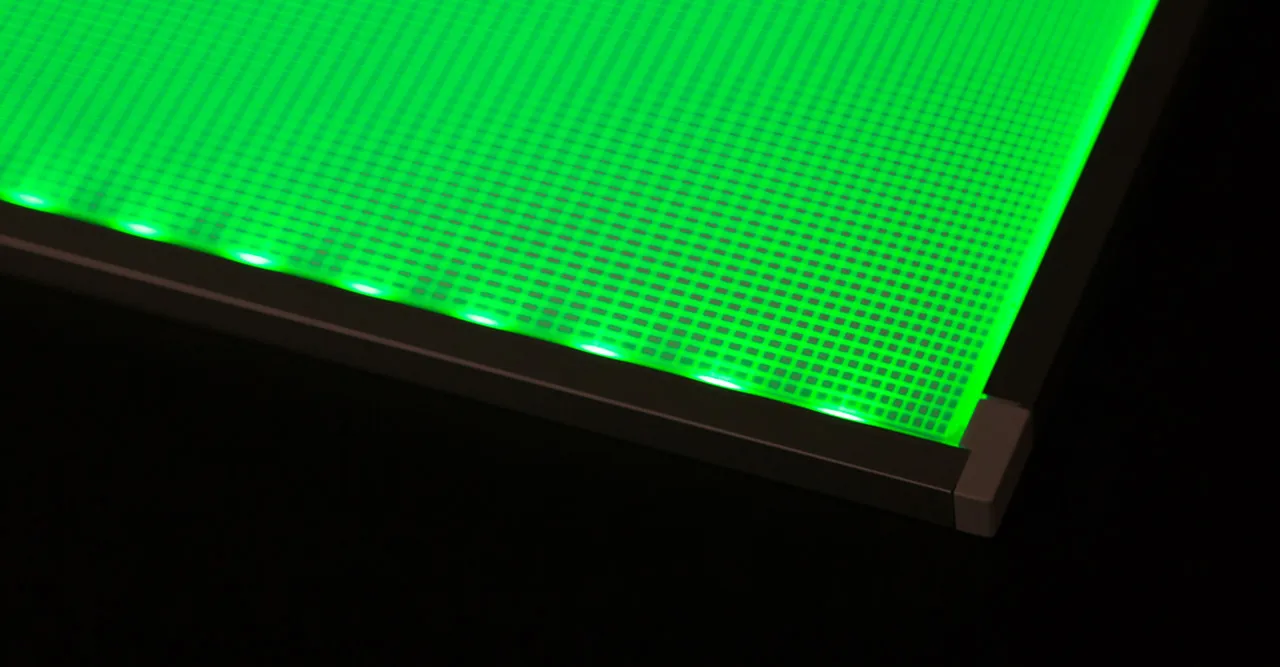

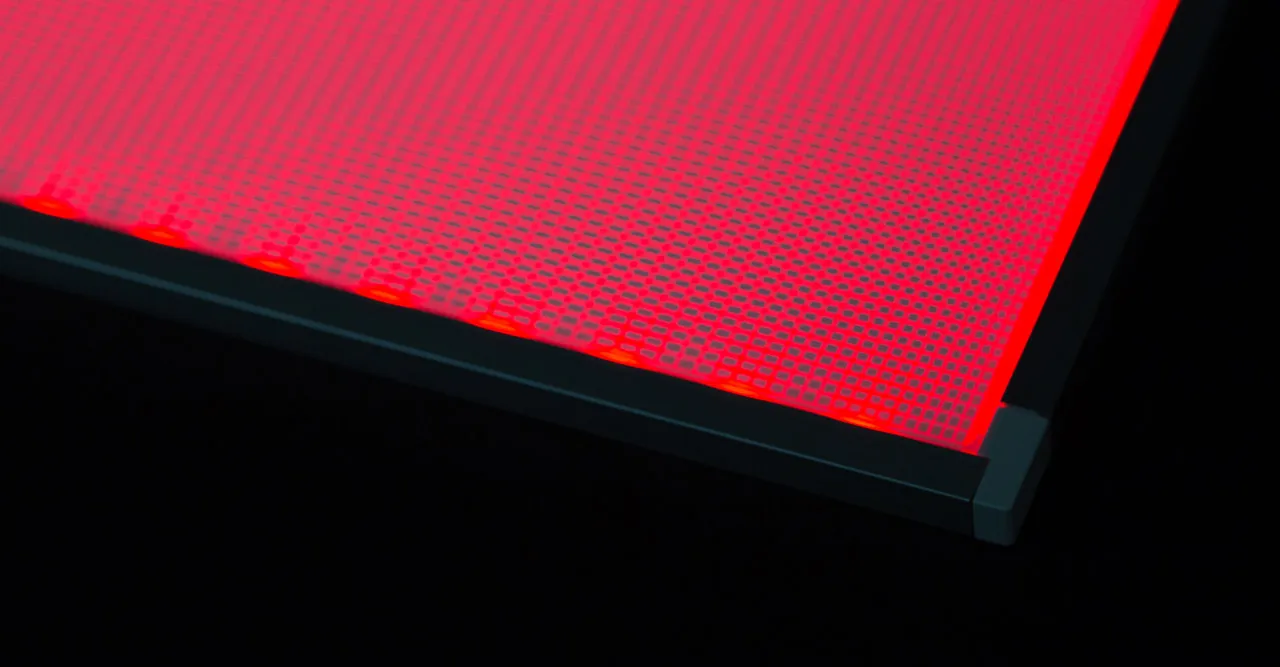

LED Common plus type – One(1) edge, two(2) edges, three(3) edges or four(4) edges
Color Temperature RGB or Mono/Bi color
Dimming By external dimmer (Optional)
Environment Suitable for indoor and dry location
Optional Diffuser plate

Dimensions & Weight

Minimum Size 2″ W x 2″ L (50mm W x 50mm L)
Maximum Size 60″ W x 118″ L (1,500mm W x 3,000mm L)
Light Guide Panel 1/4″ (6mm) Acrylic with V cut
Weight 1.65 lbs / sq ft (7.64 Kg / sq meter)

General Summary

Safety Design Plastic corner pieces for sharp corner & cable protection (U.S. Patented)
Mounting By double sided tape, standoffs, Z clips, or others
Input Voltage D.C. 12 Volt or 24 Volt
Power – Consumption 4.0 Watt / ft of LED (12 Watt / meter of LED)

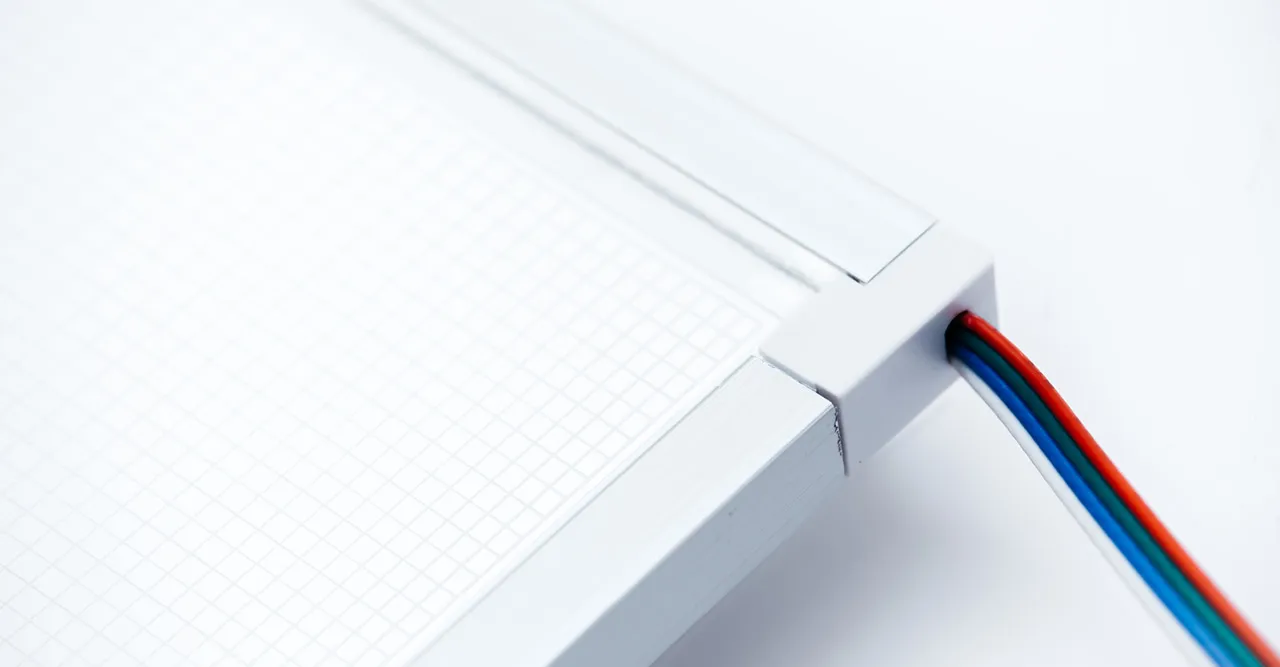

Power Cord 26 AWG, 4 conductors open cable
Length of cable : Standard : 5’ (1,500mm), Optional : 10’ (3,000mm)
Power Supply UL class 2 or LPS
D.C. 12 Volt : Max. 4.86 Amp / 58.5 Watt
D.C. 24 Volt : Max. 3,77 Amp / 90.9 Watt
or CE approved
Operating Temperature -22ºF (-30ºC) ~ 104ºF (+40ºC)
Certification UL listed (E344086), UL recognized (E341820), CE approved

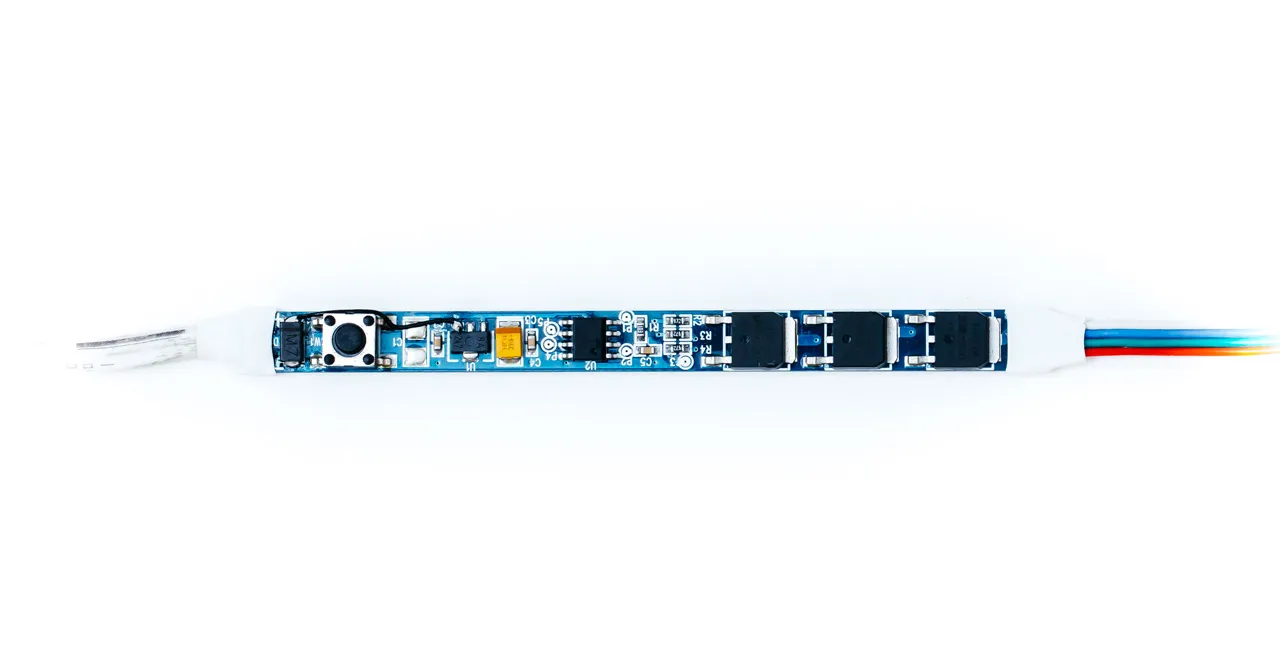

Controller DMX or controller by others
