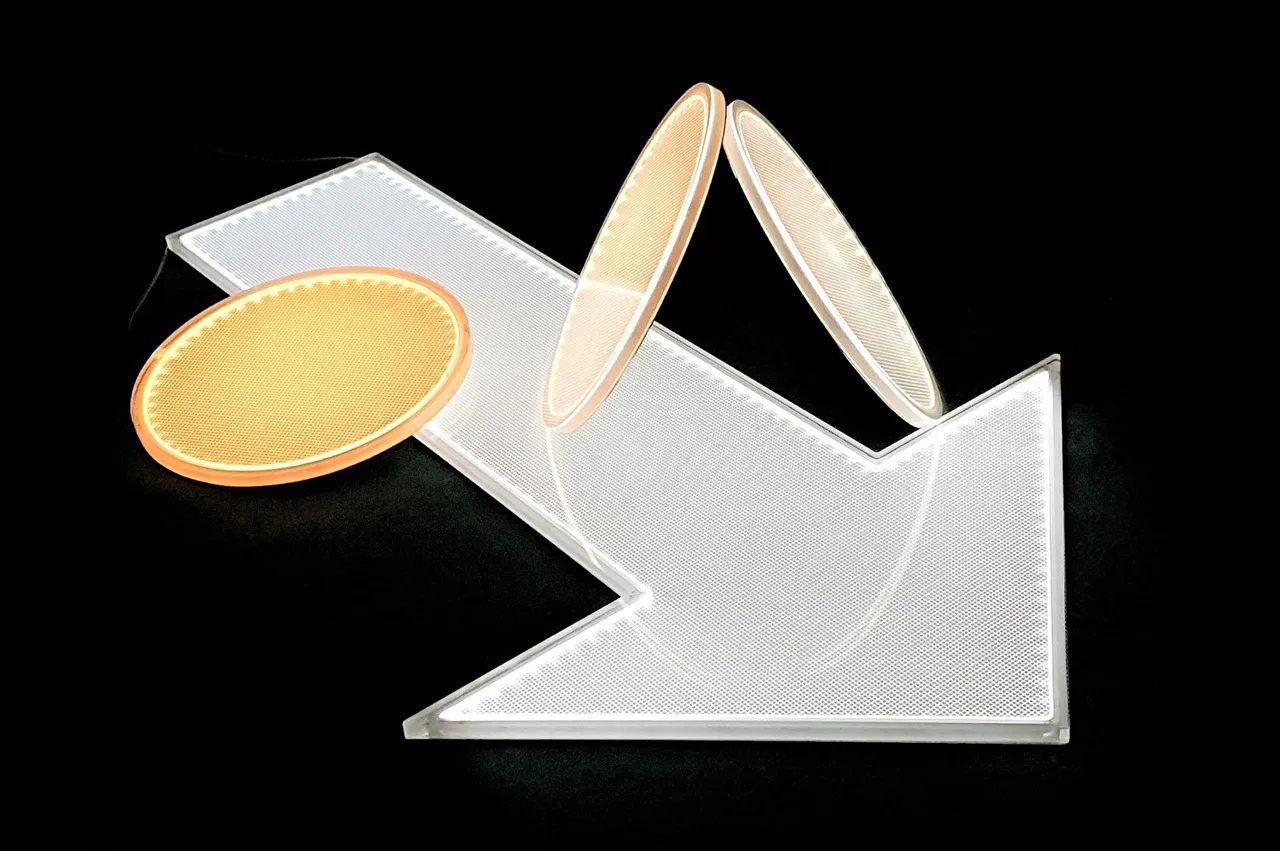

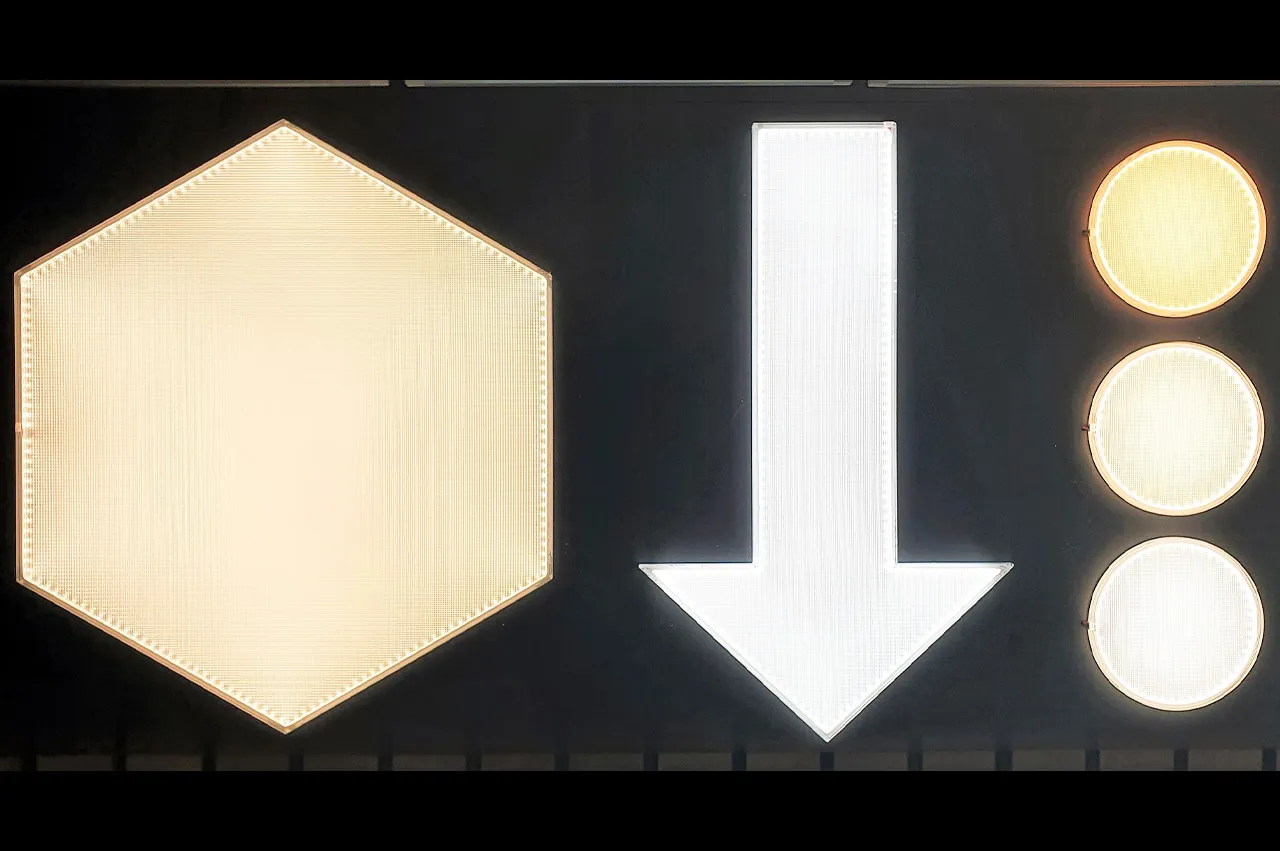

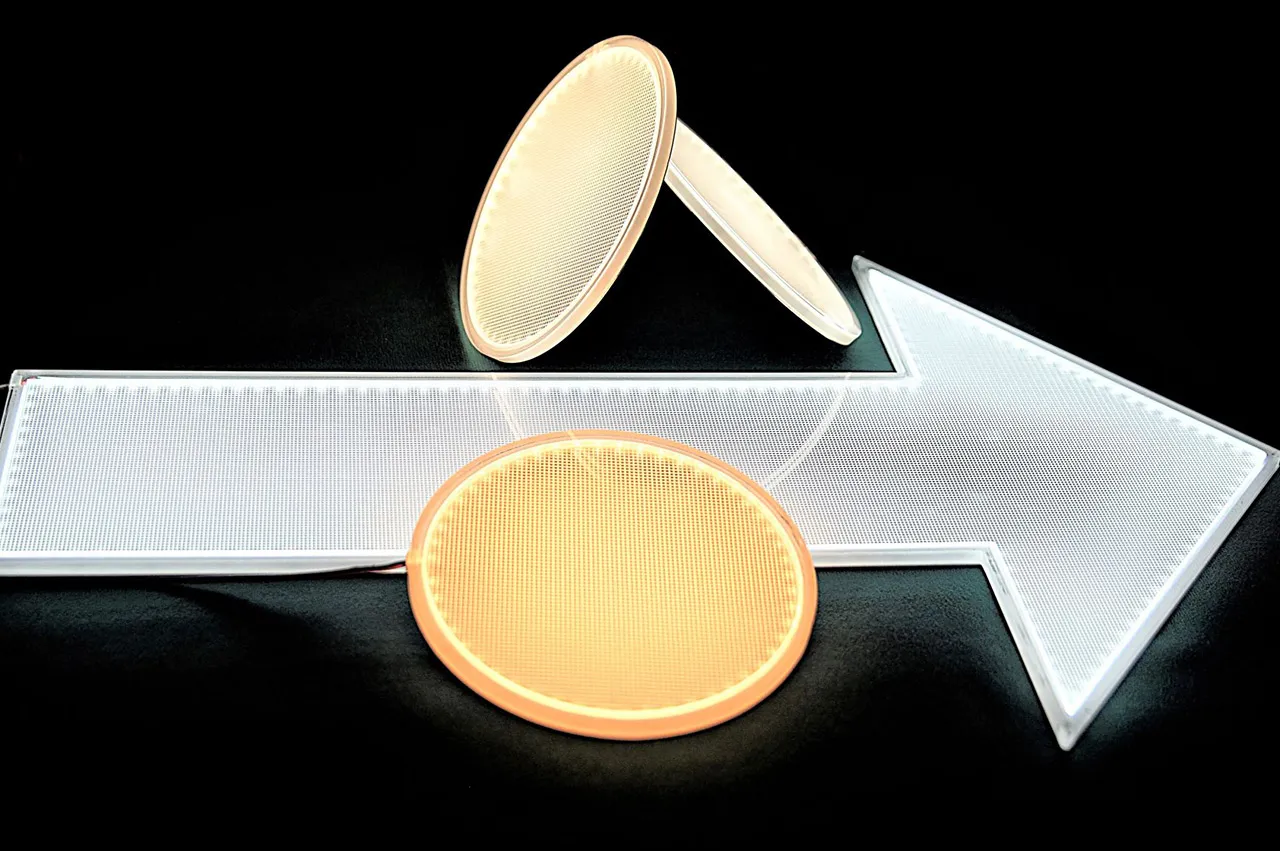

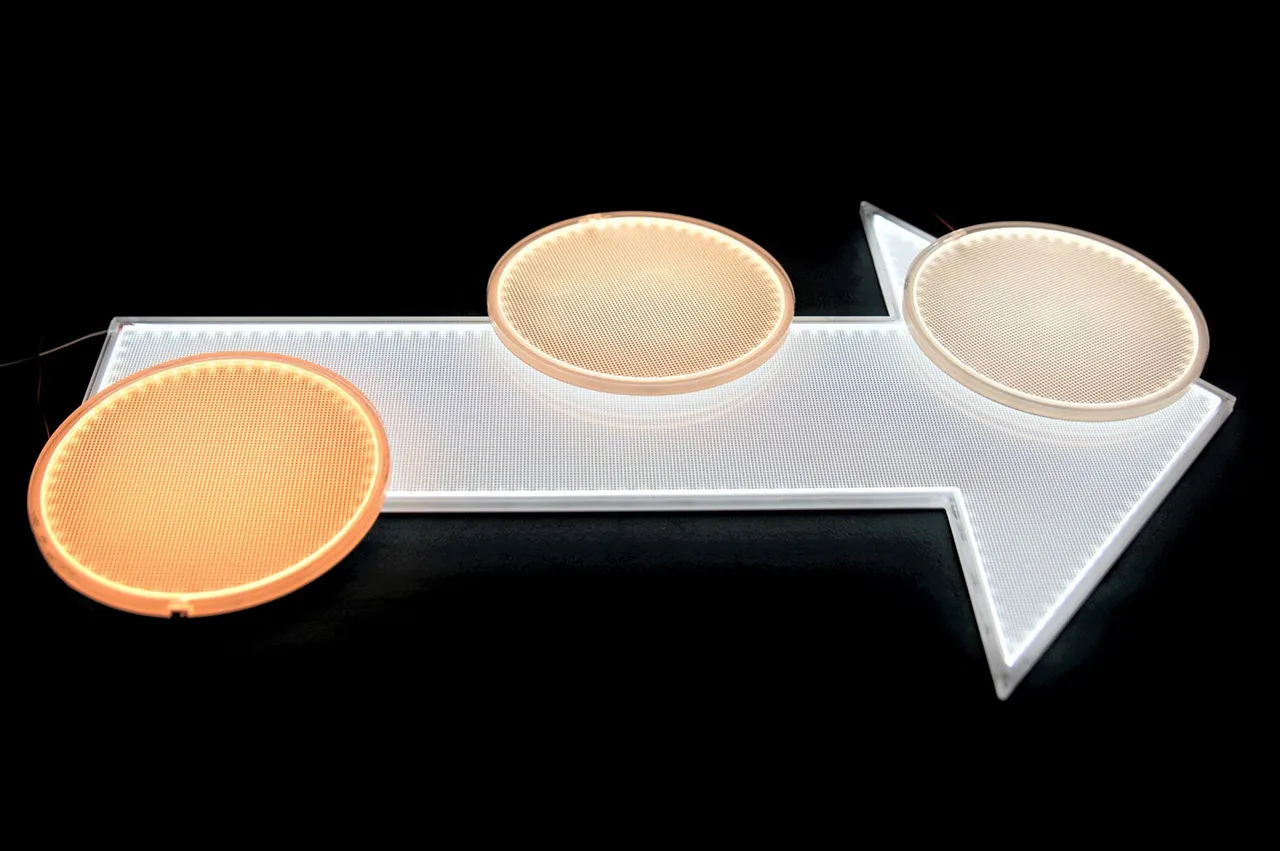

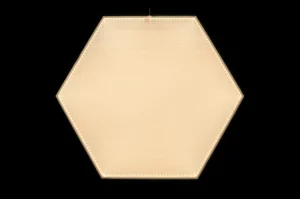

Our Embedded LED light boards offer a versatile way to add lighting source to any display, whether it be illuminating a printed image or adding eye-catching brilliance to object display. Feelis USA focuses on quality, and our light boards truly reflect our core value. Our Light Boards have US Patent for its smooth corner & cable protection.
- Frameless
- Highest brightness & uniformity
- Ultra-slim frame construction (1/4 inch (6mm) thick)

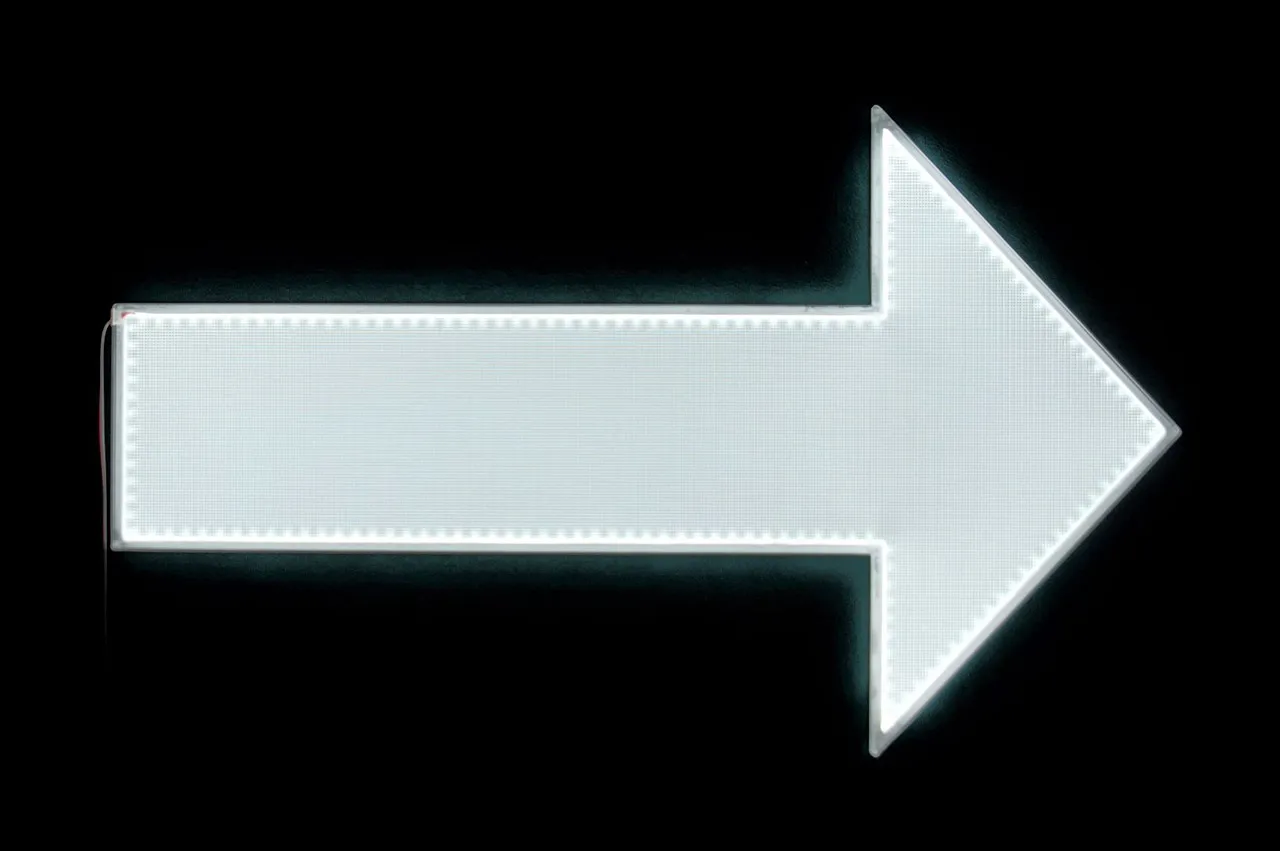

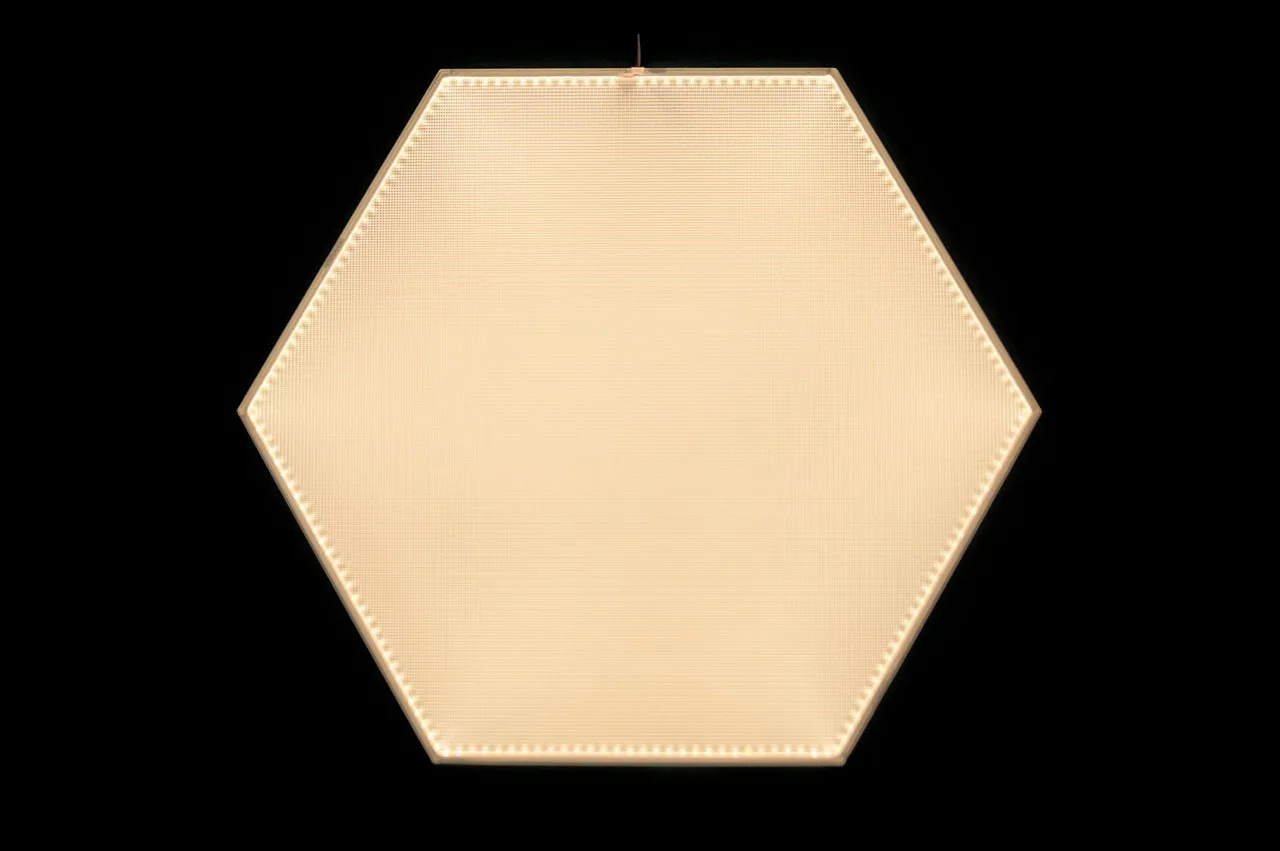

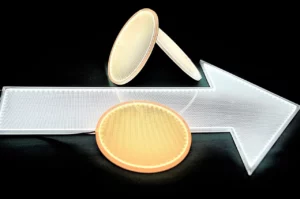

- Custom sizes up to 48″ x 96″ (1200mm x 2400mm)

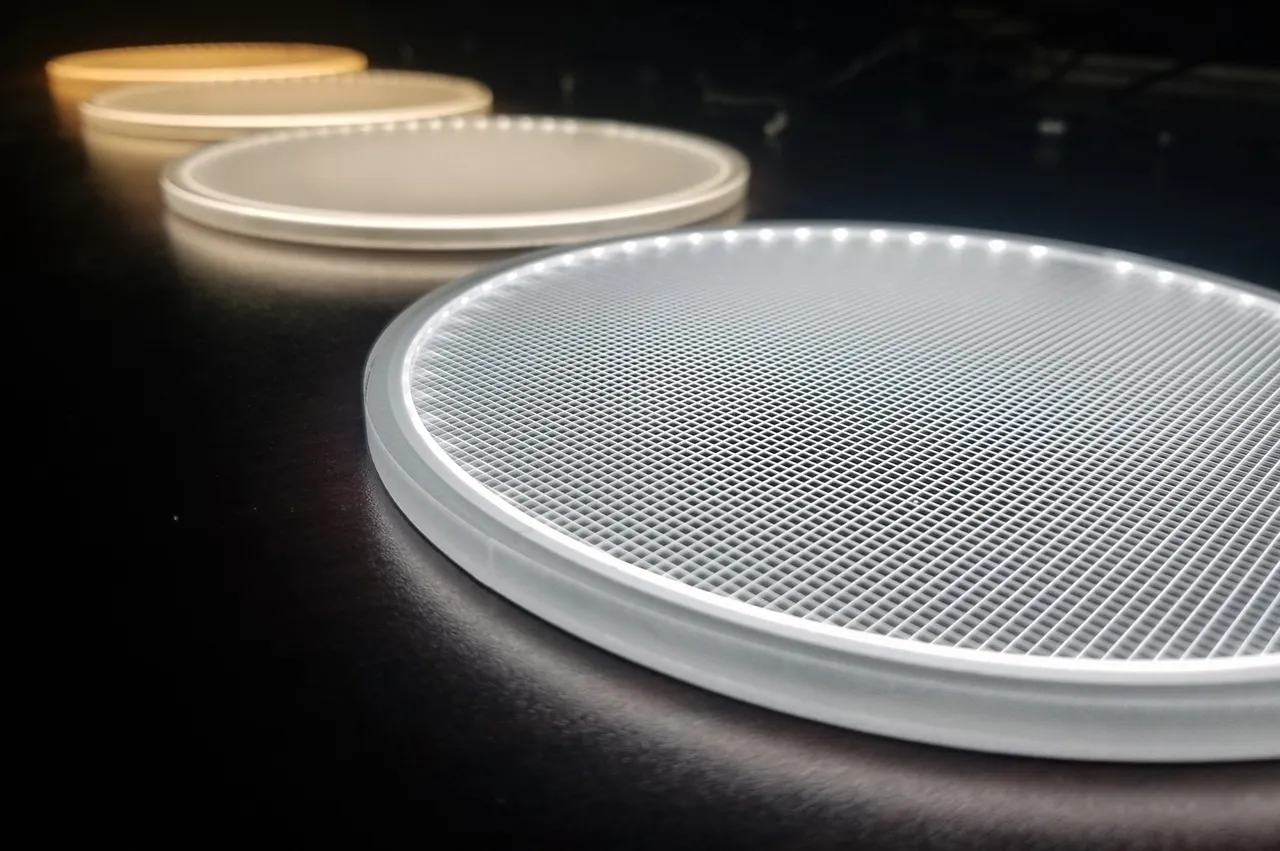

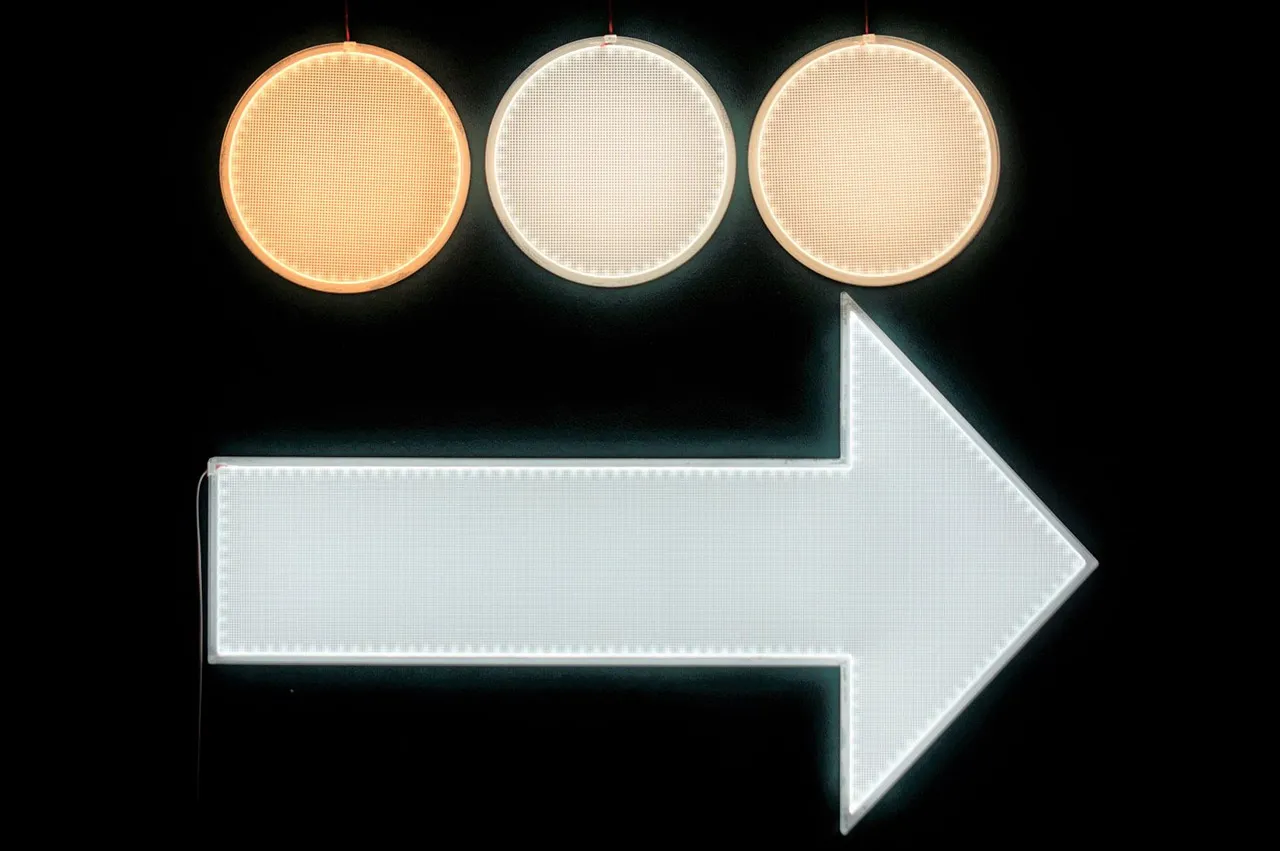

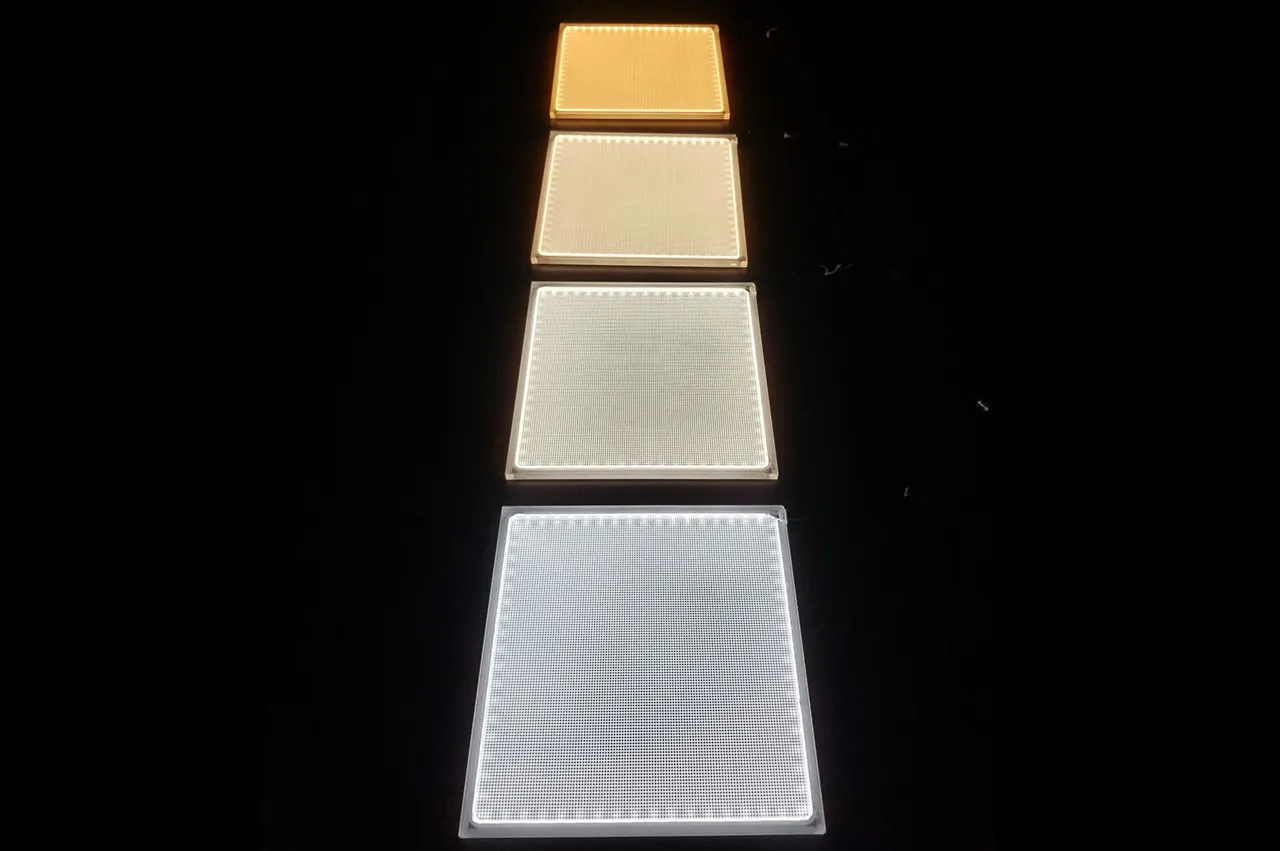

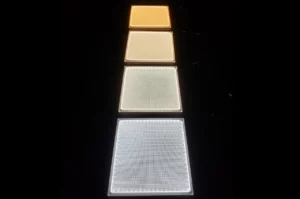

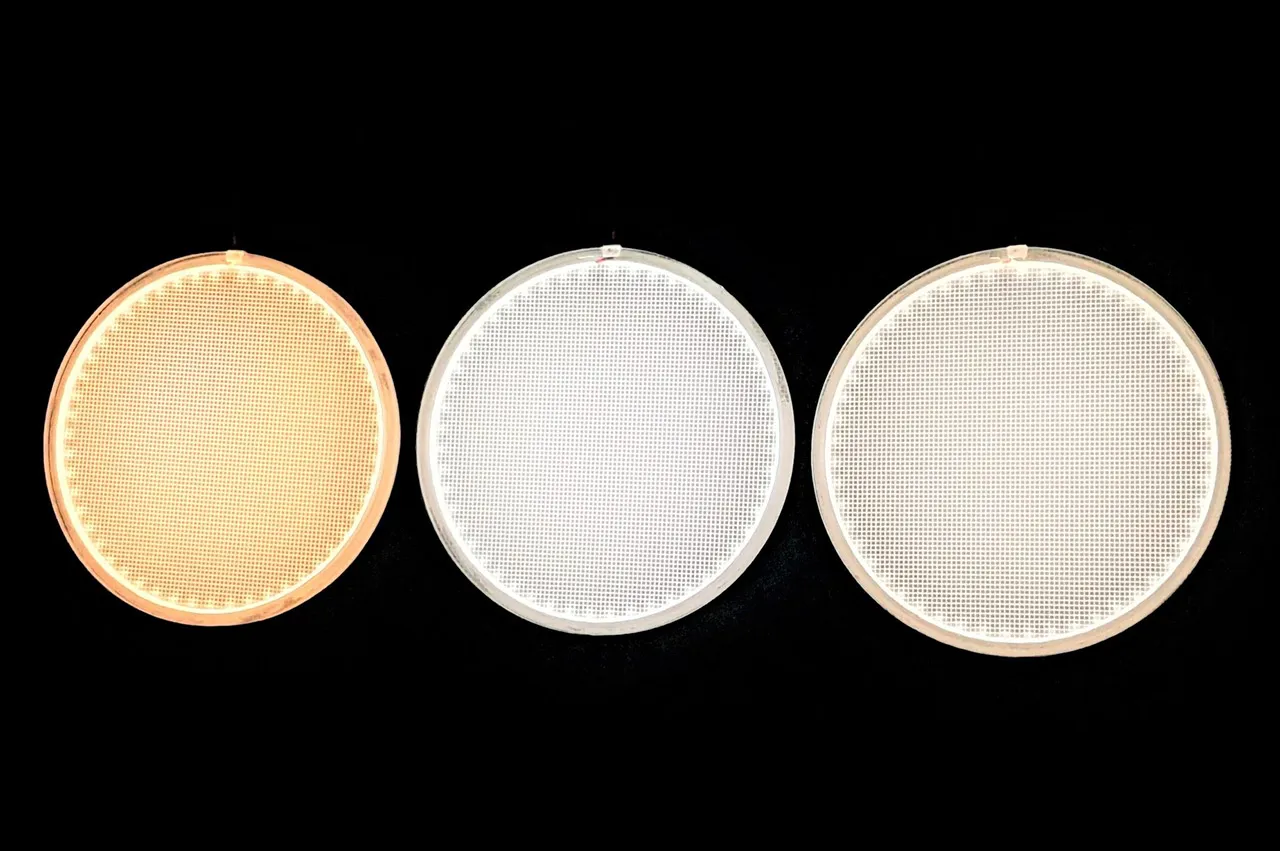

- Color temperature available from 2700K to 6500K
Series : LIGHT BOARDS Type E | Key Features : UL Listed E344086 UL Recognized E341820 CE Approved
Product Application

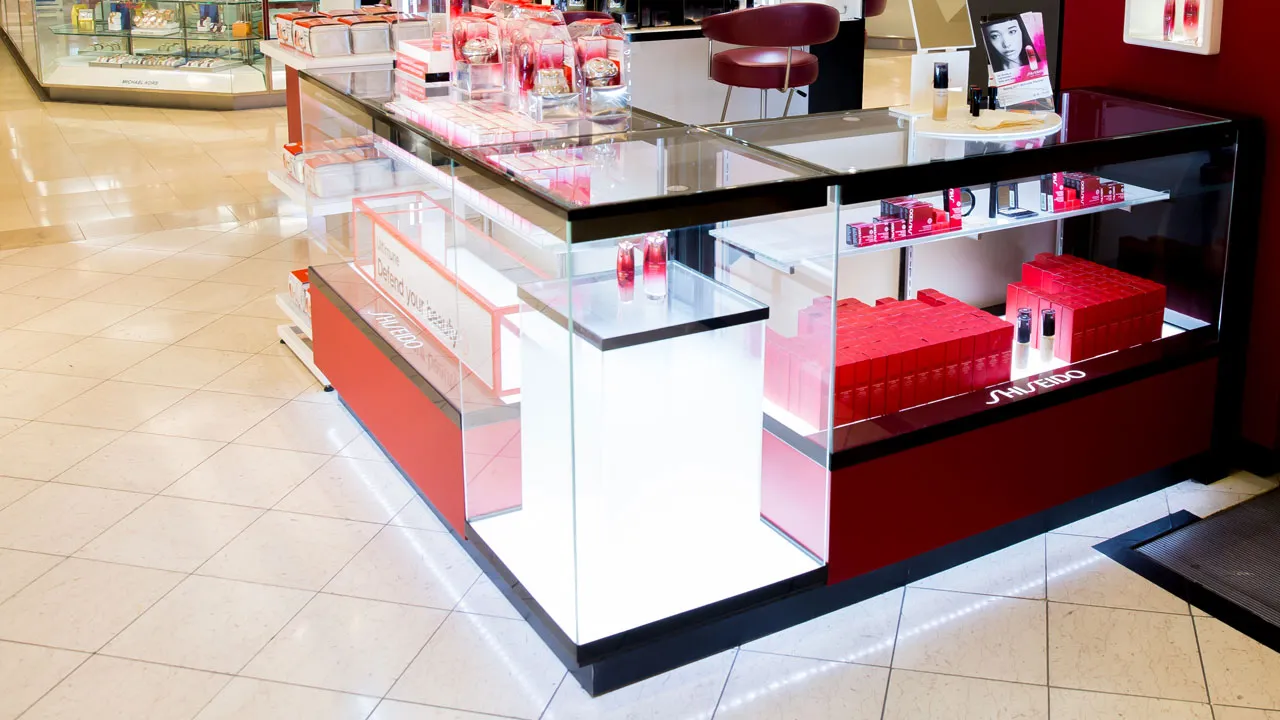

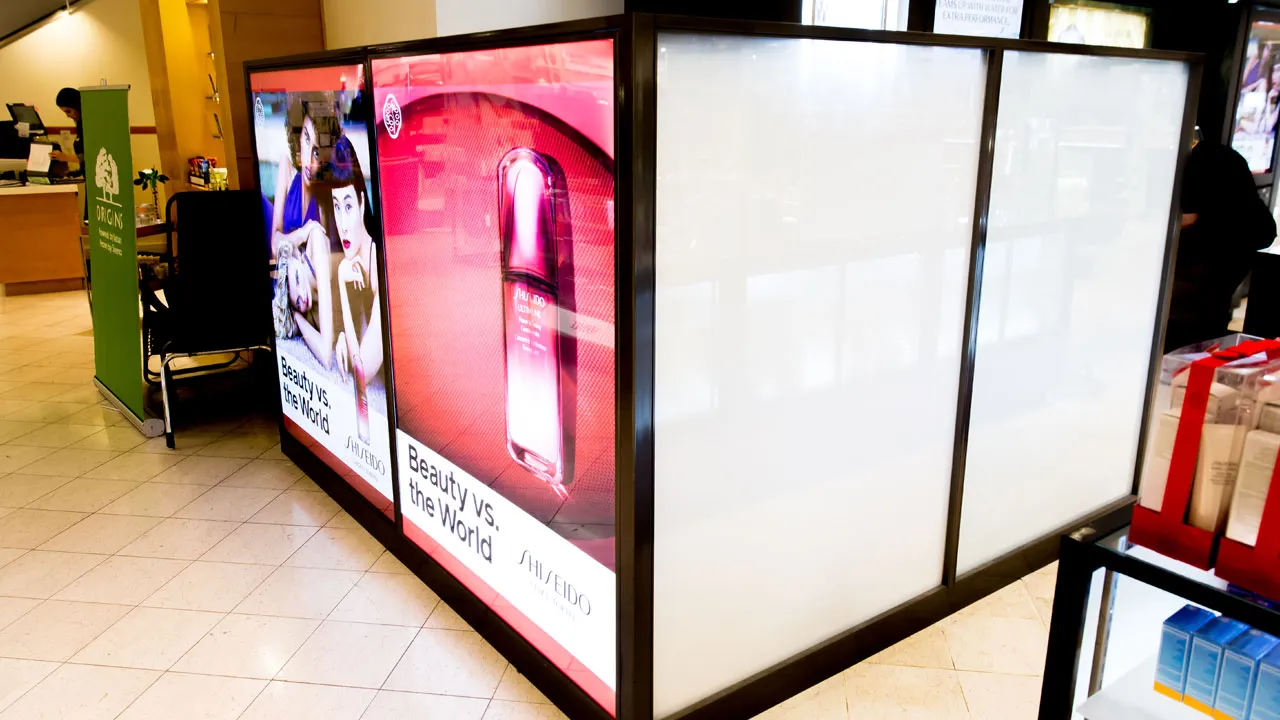

- Retail shop display stands and cases, such as duty-free shops and luxury brand shops

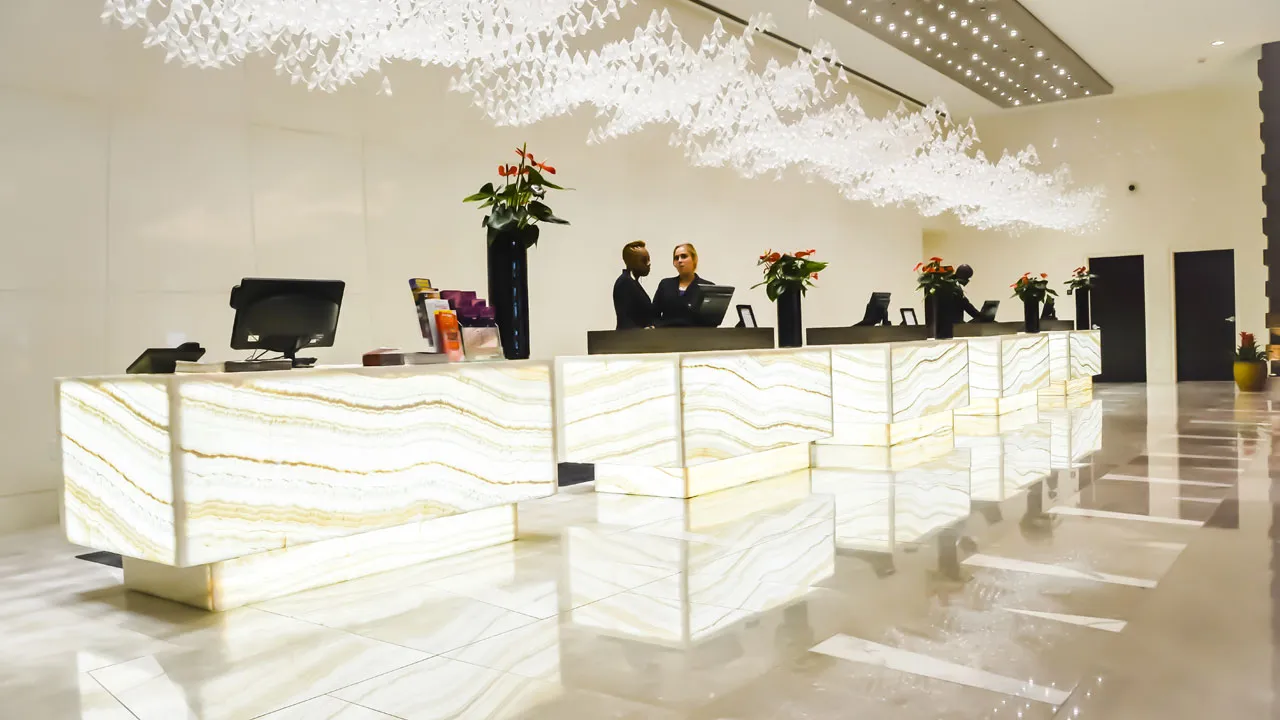

- Interior design for hotels/restaurants/office

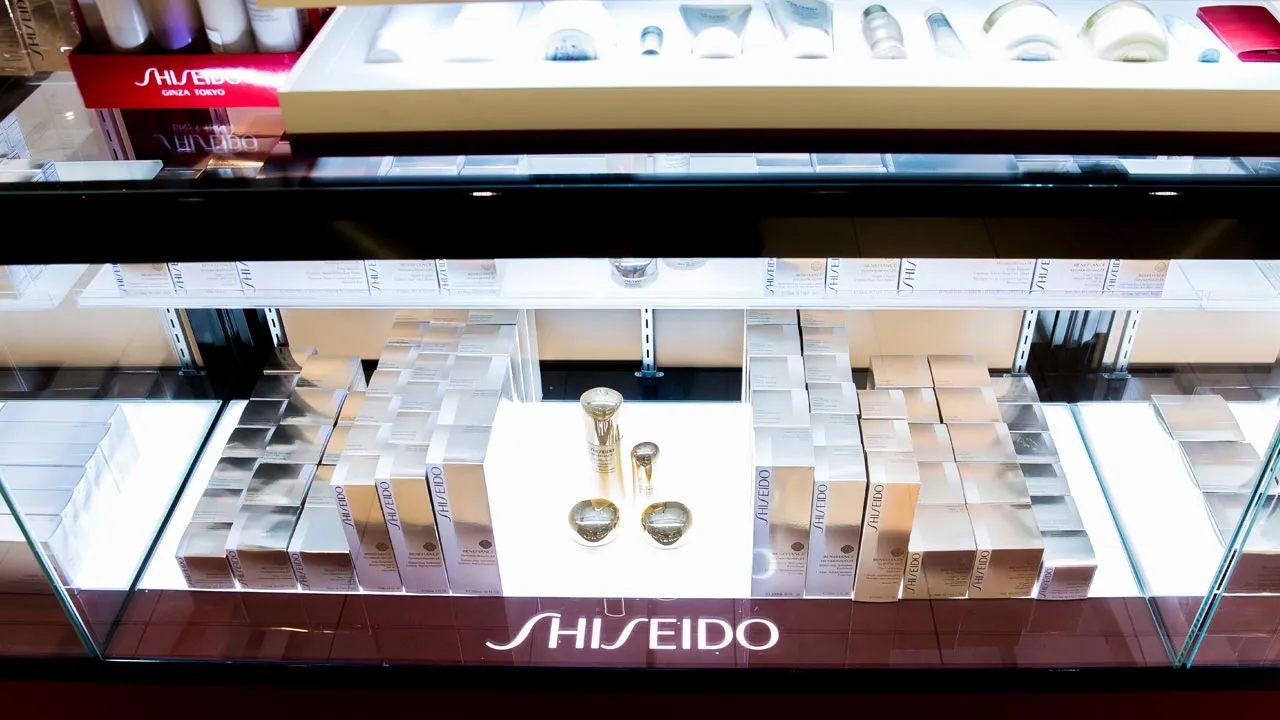

- Cosmetic / jewelry display shelves and cabinets

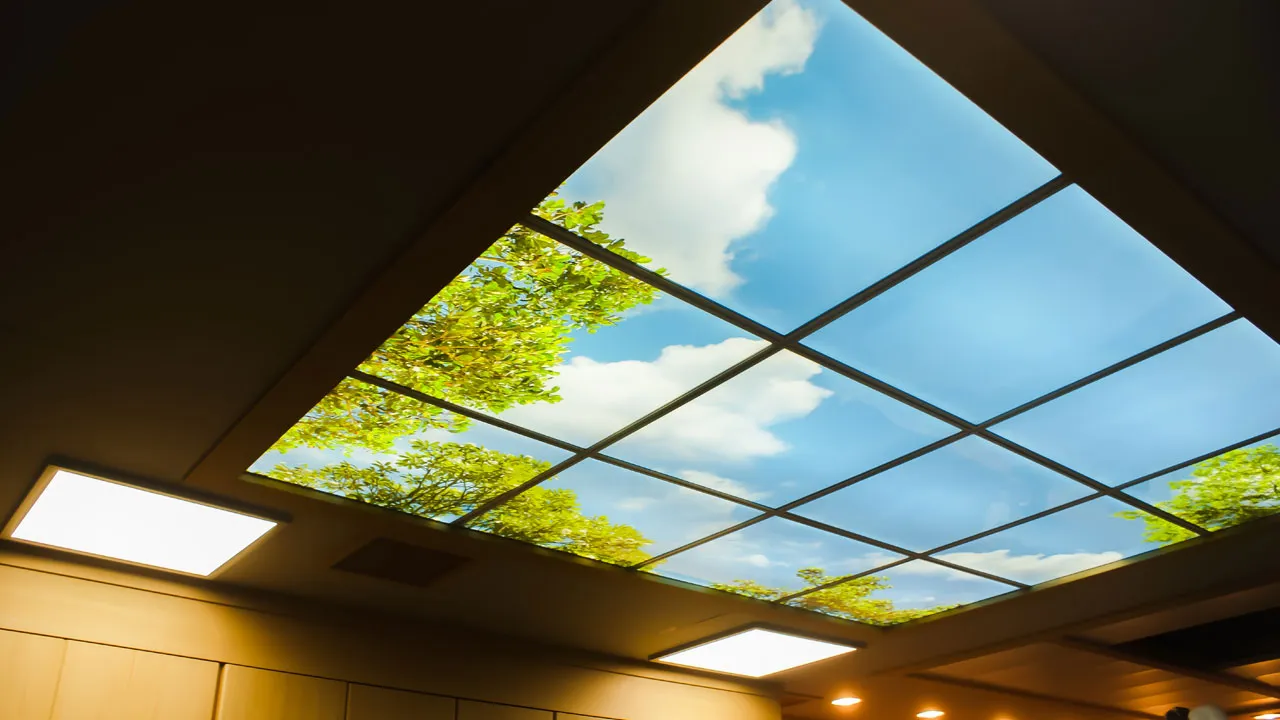

- Back light source for wall/ceiling displays
- Menu boards / new item advertisements
- Art gallery and museum for artistic display
- Tradeshow displays
Features
| Frame Thickness | 1/4″ (6mm) |
| LED | One Side, Two Side or All Around |
| Color Temperature | 2700K, 3000K, 3500K, 4500K, 5500K, 6500K |
| Dimming | By external dimmer (Optional) |
| Environment | Suitable for indoor and dry location |
Dimensions & Weight
| Minimum Size | 3″ W x 3″ L (75mm W x 75mm L) |
| Maximum Size | 48″ W x 96″ L (1,200mm W x 2,400mm L) |
| Light Guide Panel | 0.22″ (5.8 mm) Acrylic with V cut |
| Weight | 1.43 lbs / sq ft (7.2 Kg / sq meter) |
General Summary

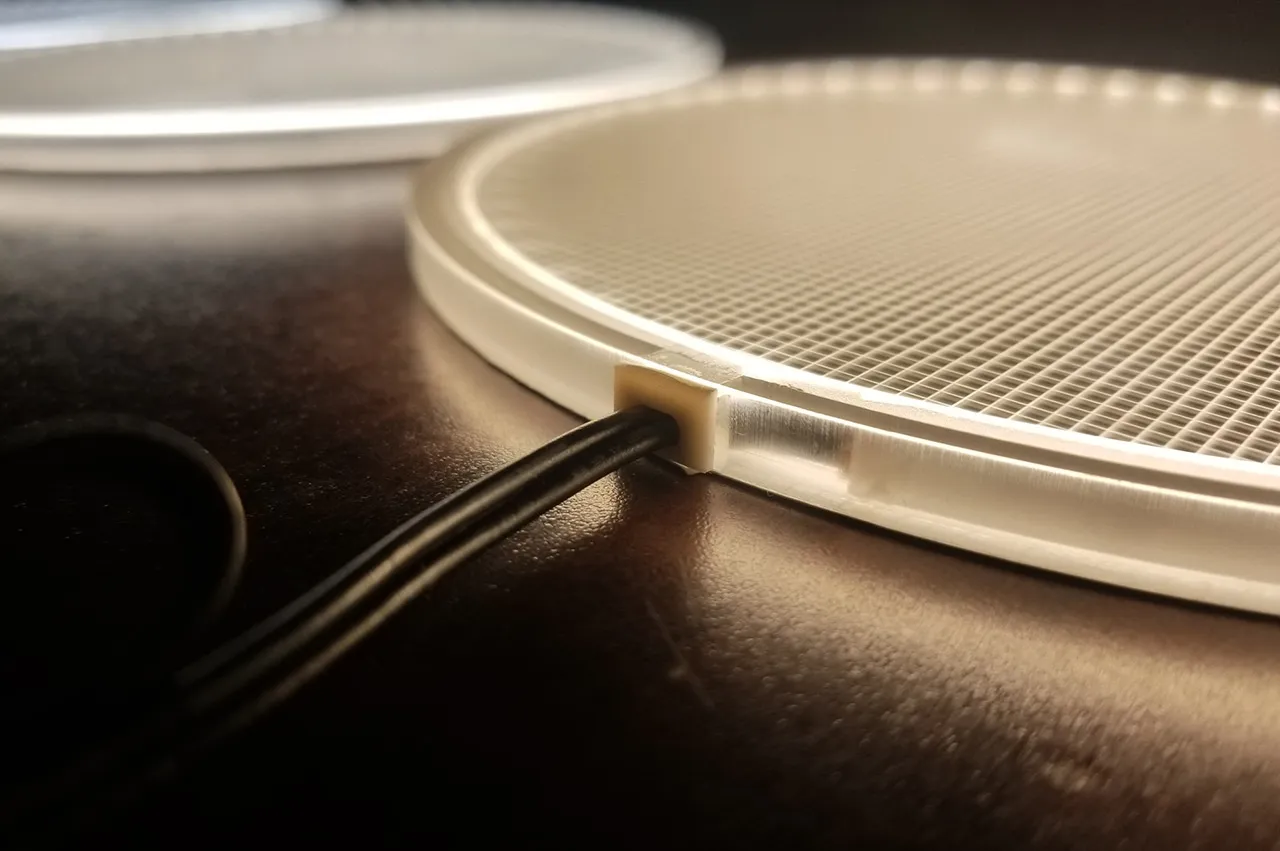

| Safety Design | Plastic corner pieces for sharp corner & cable protection (U.S. Patented) |
| Mounting | By double sided tape, standoffs, Z clips, or others |
| Input Voltage | D.C. 12 Volt or 24 Volt |
| Power – Consumption | 11.0 Watt / m (3.3 Watt / ft) |
| Power Cord | 20 AWG with barrel connector (5.5mm / 2.1mm) or open cable Length of cord : Standard : 5’ (1,500mm), Optional : 10’ (3,000mm) |
| Power Supply | UL class 2 or LPS D.C. 12 Volt : Max. 4.86 Amp / 58.5 Watt D.C. 24 Volt : Max. 3,77 Amp / 90.9 Watt or CE approved |
| Operating Temperature | -22ºF (-30ºC) ~ 104ºF (+40ºC) |
| Certification | UL listed (E344086), UL recognized (E341820), CE approved |
