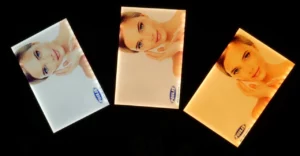

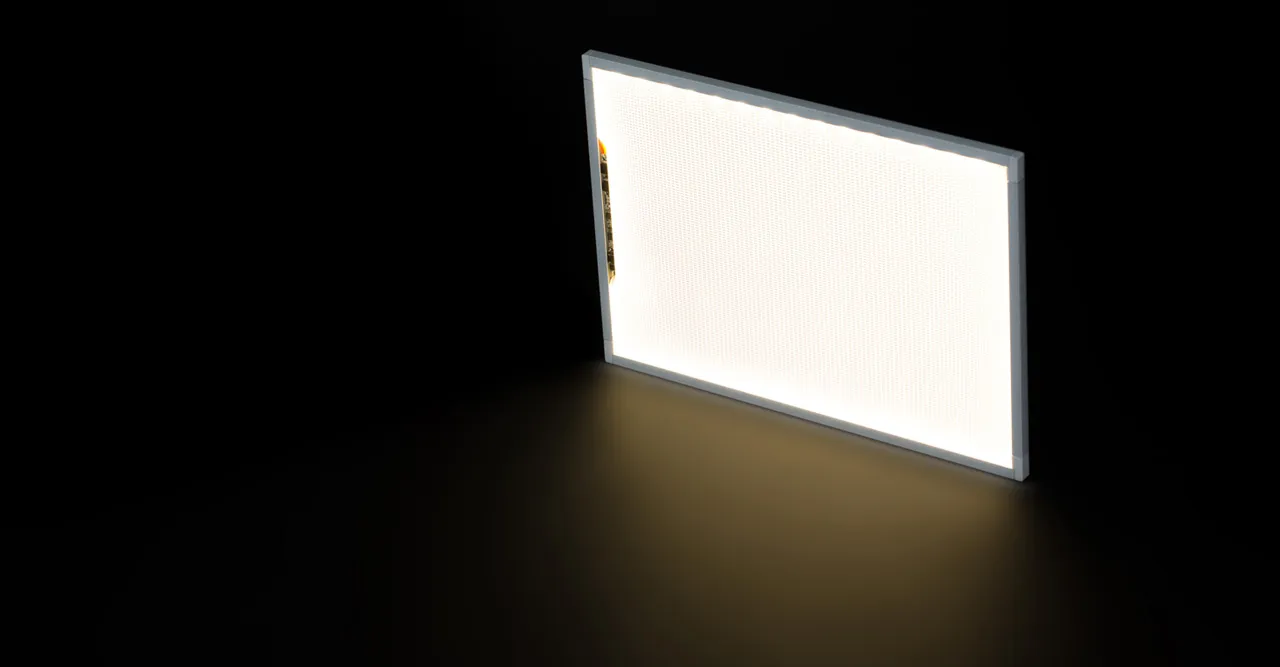

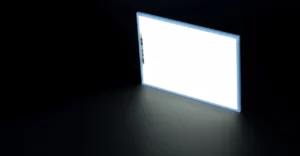

Dynamic White System allows user to control the CCT (color temperature) of the LED light. You can adjust the CCT to set the tone of the display, from crisp, cool sharpness to a warm, glowing ambiance. CCT ranges from 2700K to 6500K.
- One board with many different colors at your finger tip
- Dimmable from 0 to Maximum brightness
- Custom sizes up to 60″ x 118″ (1500mm x 3000mm)
- Adjustable color temperature between 2700K and 6500K
- Easy-to-use remote controller
- UL and cUL listed light board
Series : LIGHT BOARDS | Key Features : UL Listed E344086 UL Recognized E341820 CE Approved
Product Application
- Retail shop display stands and cases, such as duty-free shops and luxury brand shops
- Interior design for hotels/restaurants/office
- Cosmetic / jewelry display shelves and cabinets
- Back light source for wall/ceiling displays
- Menu boards / new item advertisements
- Art gallery and museum for artistic display
- Tradeshow displays
Features
| Thickness | 5/16″ (8mm) |
| Heat Sinking | By aluminum channel |
| LED | One(1) edge, two(2) edges, three(3) edges or four(4) edges |
| Color Temperature | Controllable Color Temperature (2700K ~ 6500K) |

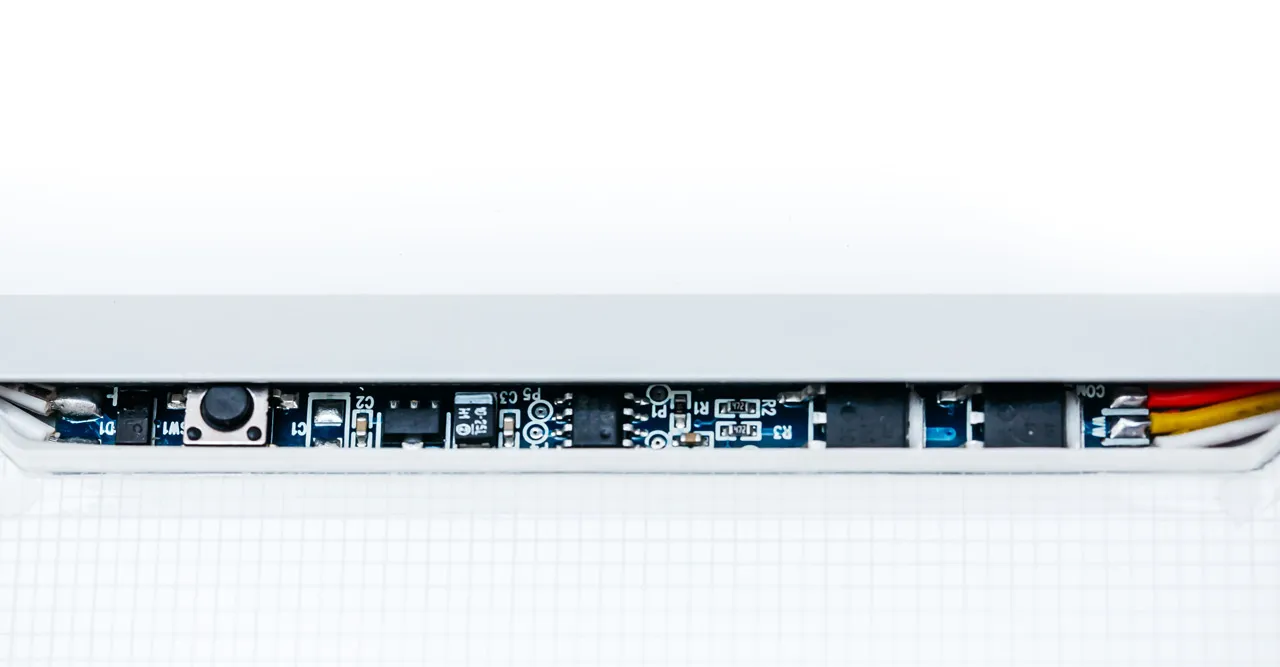

| Color Temperature Control | By wireless remote controller (Optional), built-in step controller (Optional), or by others |
| Environment | Suitable for indoor and dry location |
| Dimming | By wireless remote controller (Optional), or by others |
Dimensions & Weight
| Minimum Size | 2″ W x 2″ L (50mm W x 50mm L) |
| Maximum Size | 60″ W x 118″ L (1,500mm W x 3,000mm L) |
| Light Guide Panel | 1/4″ (6mm) Acrylic with V cut |
| Weight | 1.65 lbs / sq ft (7.64 Kg / sq meter) |
General Summary

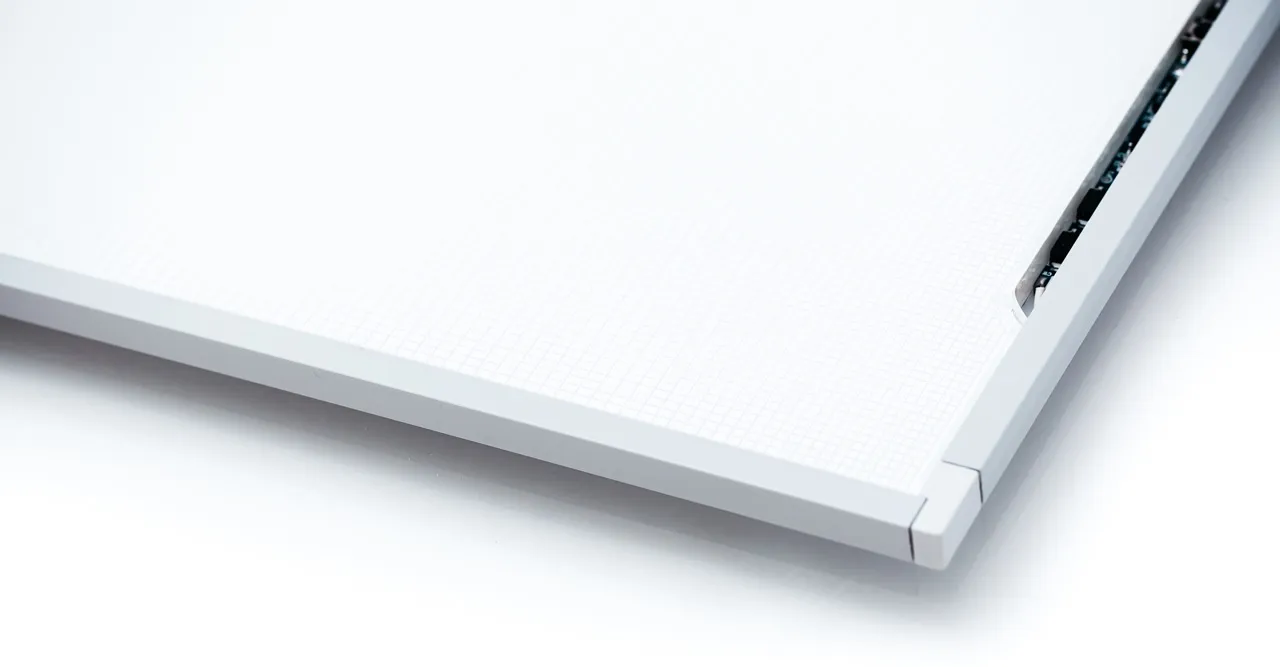

| Safety Design | Plastic corner pieces for sharp corner & cable protection (U.S. Patented) |
| Mounting | By double sided tape, standoffs, Z clips or others |
| Input Voltage | D.C. 12 Volt or 24 Volt |
| Power – Consumption | 4.0 Watt / ft of LED (12 Watt / meter of LED) |
| Power Cord | 22 AWG, 3 conductors cable for wireless remote controller type 20 AWG with barrel type connector for built-in step controller type Length of cord : Standard : 5’ (1,500mm), Optional : 10’ (3,000mm) |
| Power Supply | UL class 2 or LPS D.C. 12 Volt : Max. 4.86 Amp / 58.5 Watt D.C. 24 Volt : Max. 3,77 Amp / 90.9 Watt or CE approved |
| Operating Temperature | -22ºF (-30ºC) ~ 104ºF (+40ºC) |
| Certification | UL listed (E344086), UL recognized (E341820), CE approved |
| Optional | Diffuser plate |
Brightness
| Dimension (Inch) | Dimension (mm) | LED | Surface Brightness (Lux) | Power Consumption (W) |
|---|---|---|---|---|
| 6” x 12” | 152 x 304 | 1 long side | 7,000 | 3.0 |
| 12” x 12” | 304 x 304 | 1 long side | 3,500 | 3.0 |
| 18” x 24” | 457 x 609 | 2 long sides | 5,000 | 13.2 |
| 24” x 36” | 609 x 914 | 2 long sides | 3,600 | 20.4 |
| 36” x 72” | 914 x 1828 | 2 long sides | 2,500 | 43.3 |
| 48” x 96” | 1219 x 2438 | 2 long sides | 2,000 | 56.4 |
| 60” x 118” | 1500 x 3000 | 4 sides | 2,000 | 98.0 |
