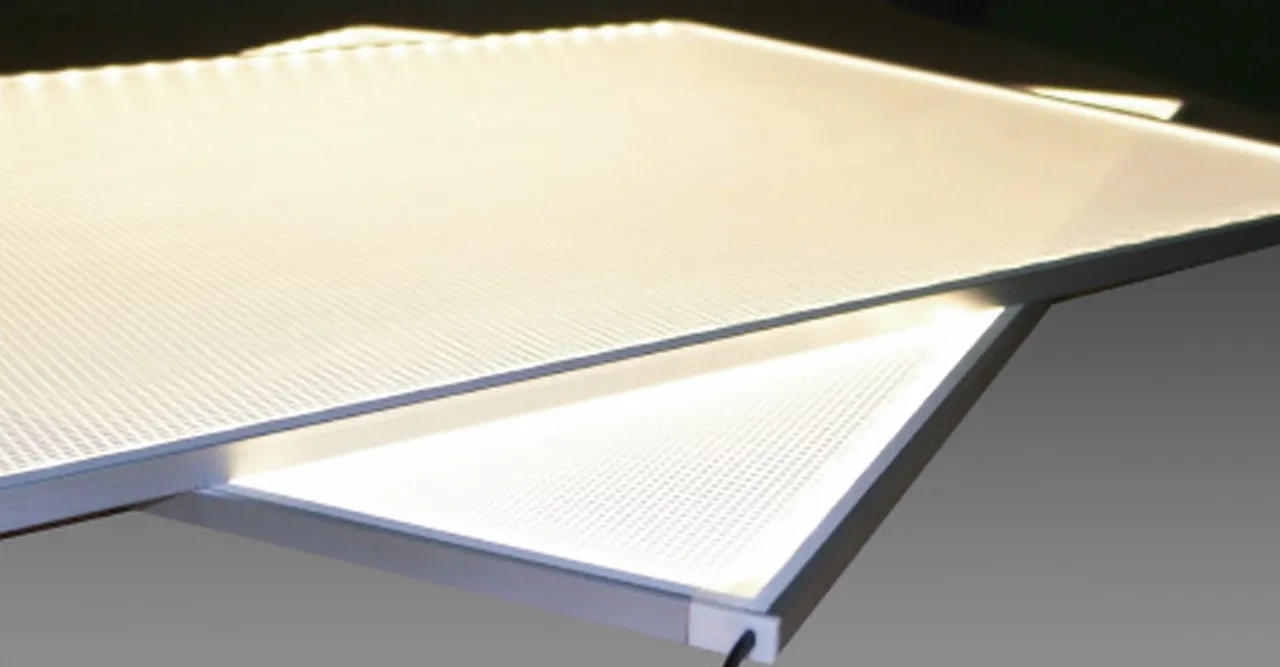

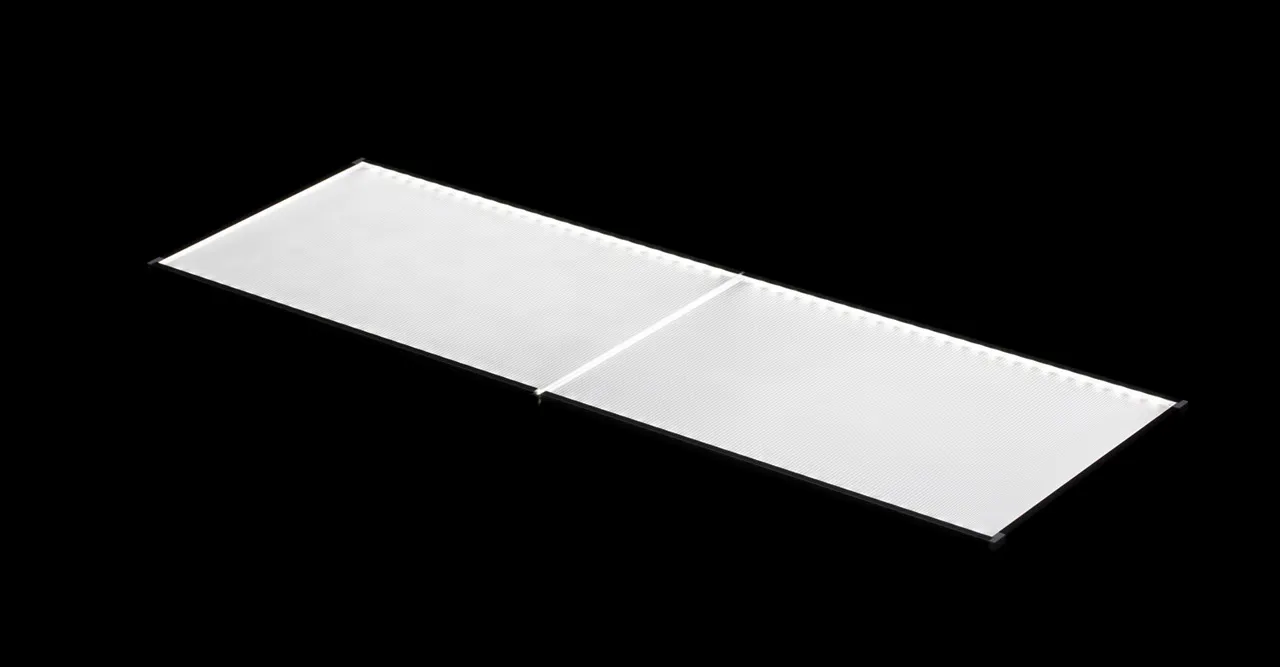

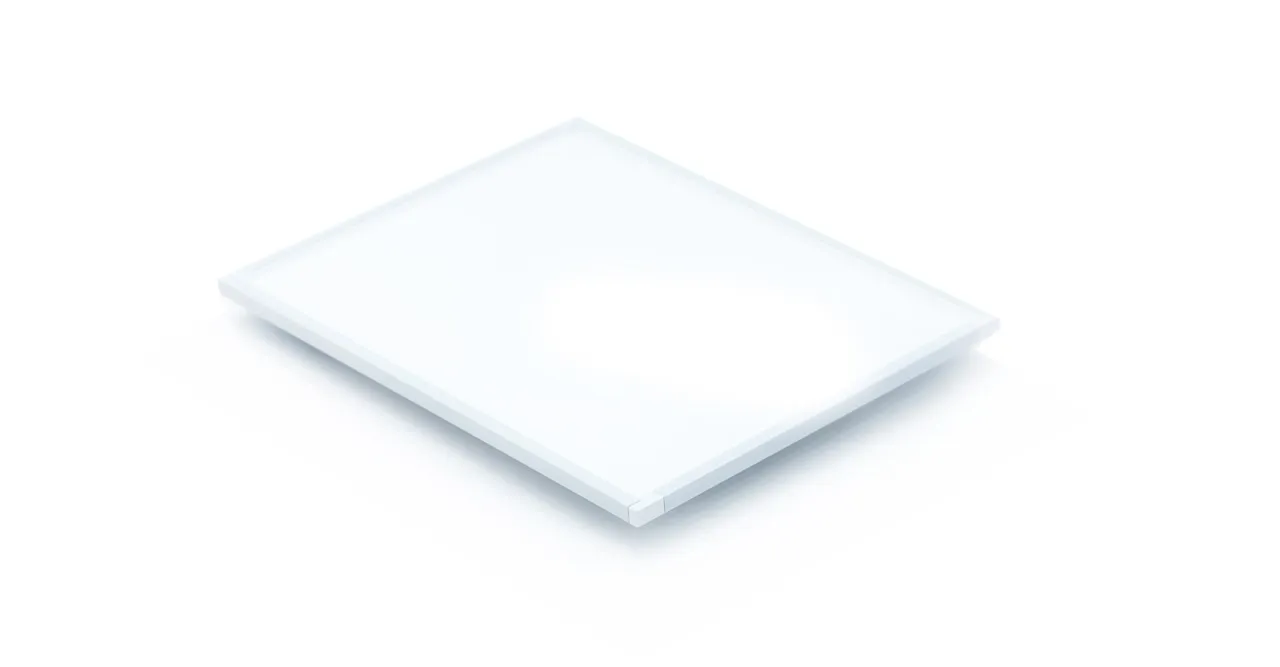

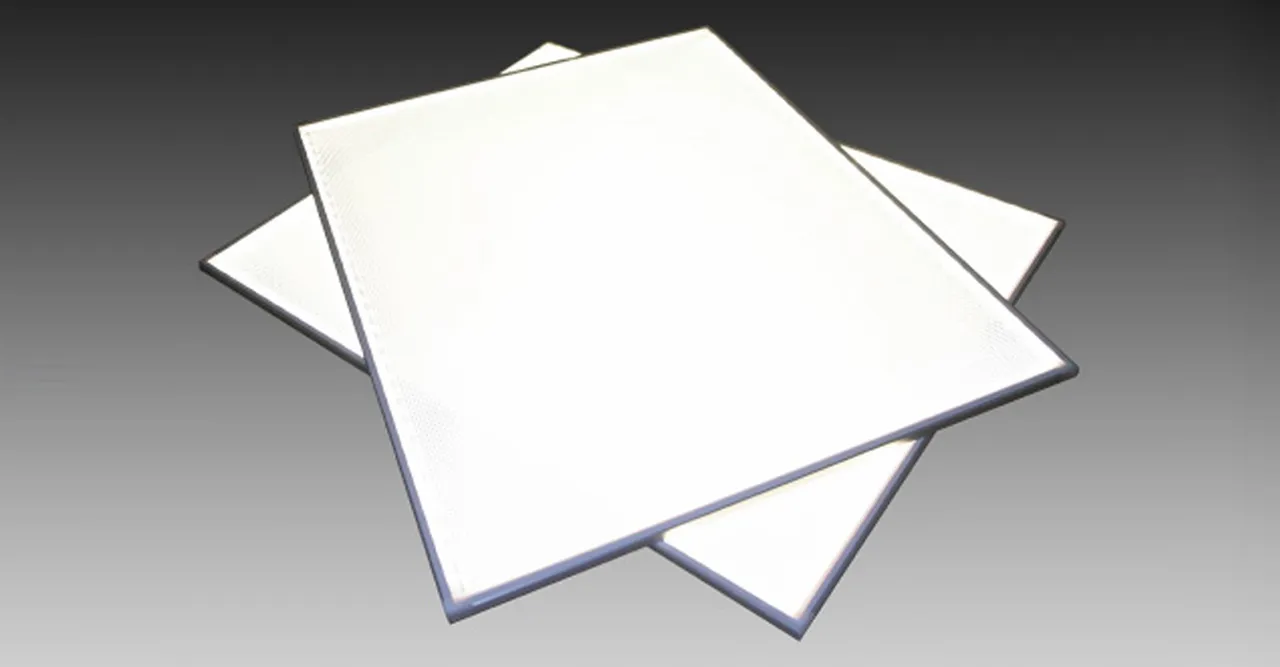

Our edge-lit LED light boards offer a versatile way to add lighting source to any display, whether it be illuminating a printed image or adding eye-catching brilliance to object display. Feelis USA focuses on quality, and our light boards truly reflect our core value. Our Light Boards have US Patent for its smooth corner & cable protection.

  • Highest brightness and uniformity
  • Ultra-slim frame construction (5/16 inch (8mm) thick)
  • Custom sizes up to 60″ x 118″ (1500mm x 3000mm)
  • Color temperature available from 2700K to 9000K (at every 500K intervals)

Product Application

  • Retail shop display stands and cases, such as duty-free shops and luxury brand shops
  • Interior design for hotels/restaurants/office
  • Cosmetic/jewelry display shelves and cabinets
  • Back light source for wall/ceiling displays
  • Menu boards / new item advertisements
  • Art gallery and museum for artistic display
  • Trade show displays

hyatt1
macy3
macy2
hyatt2
edgelit2
edgelit1
macy1

Features

Frame Thickness 5/16″ (8mm)
Heat Sinking By aluminum channel
LED One(1) edge, two(2) edges, three(3) edges, or four(4) edges

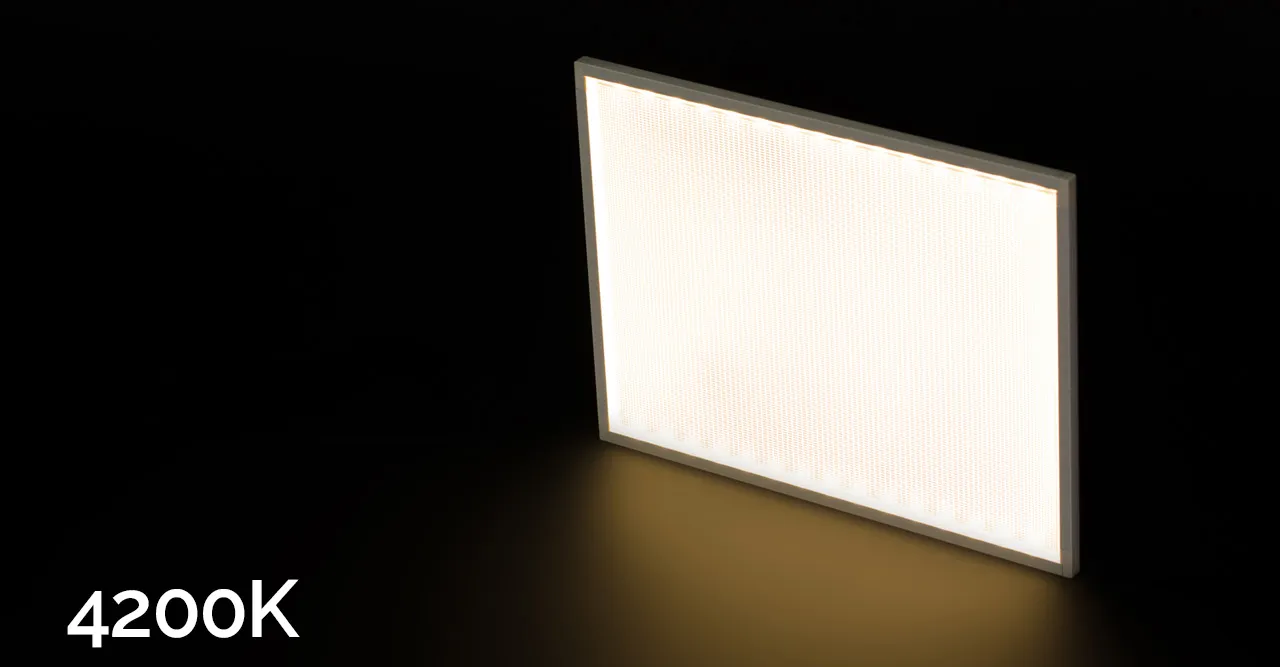

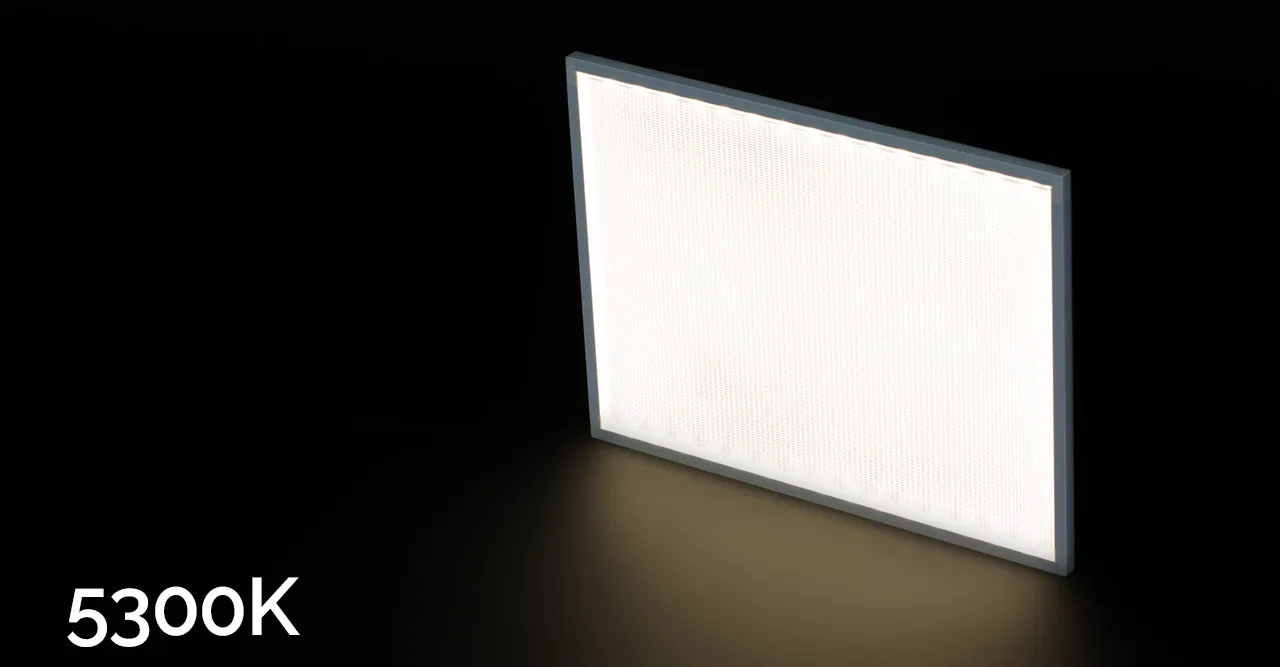

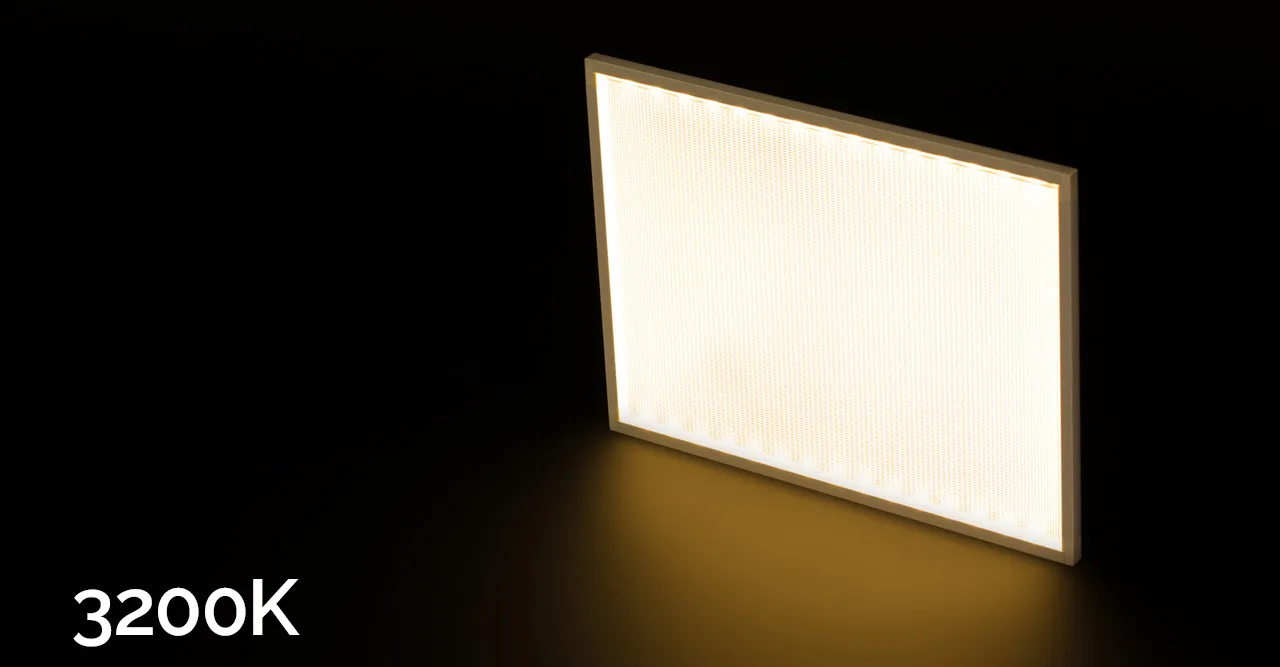

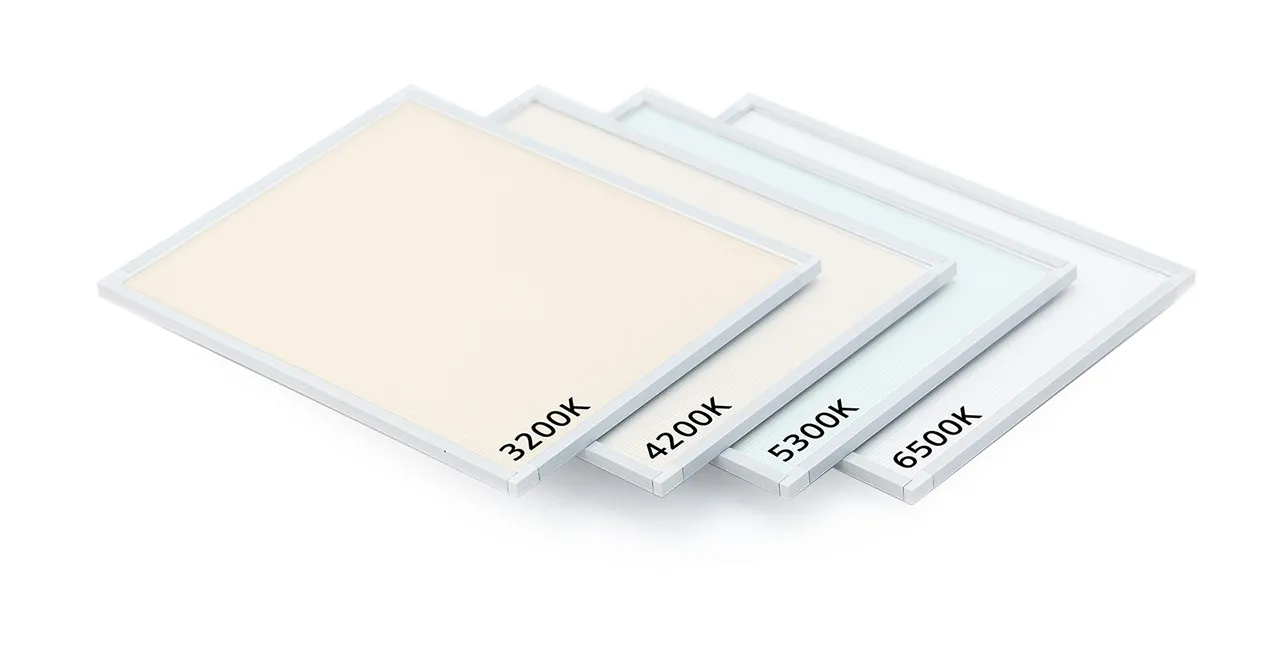

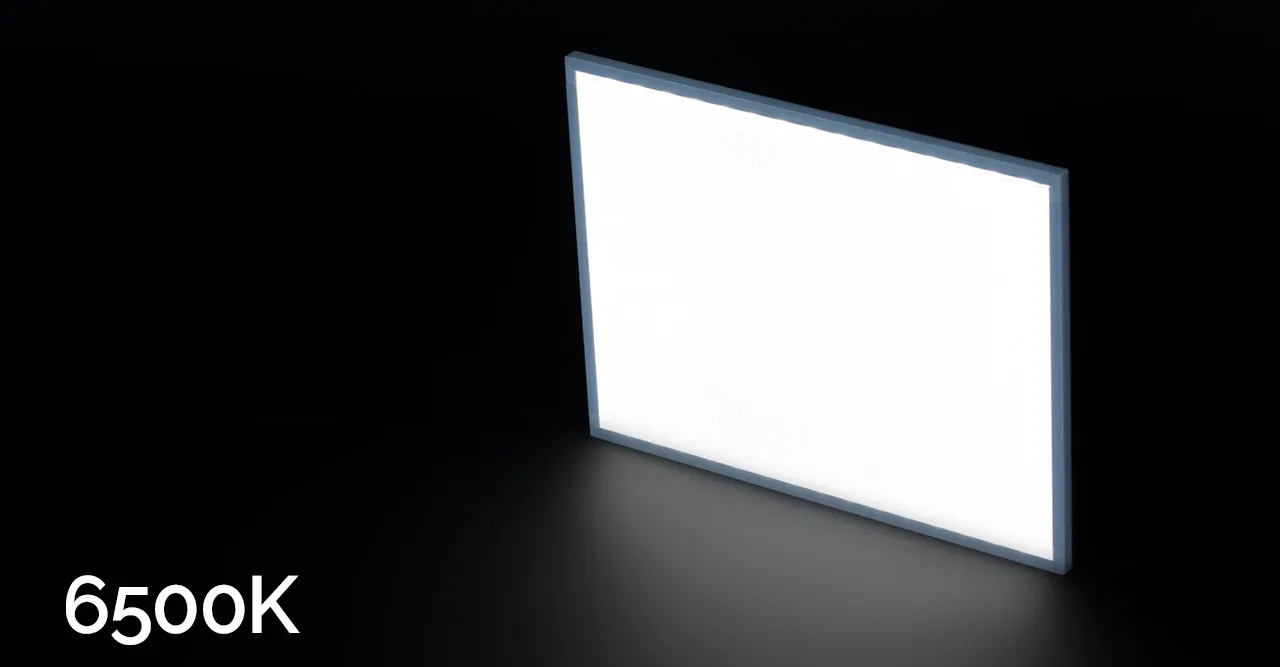

Color Temperature 2400K, 2700K, 3200K, 3700K, 4200K, 4700K, 5300K, 6500K, 7500K, 9000K
Dimming By external dimmer (Optional)
Environment Suitable for indoor and dry location

Dimensions & Weight

Minimum Size 2″ W x 2″ L (50mm W x 50mm L)
Maximum Size 60″ W x 118″ L (1,500mm W x 3,000mm L)

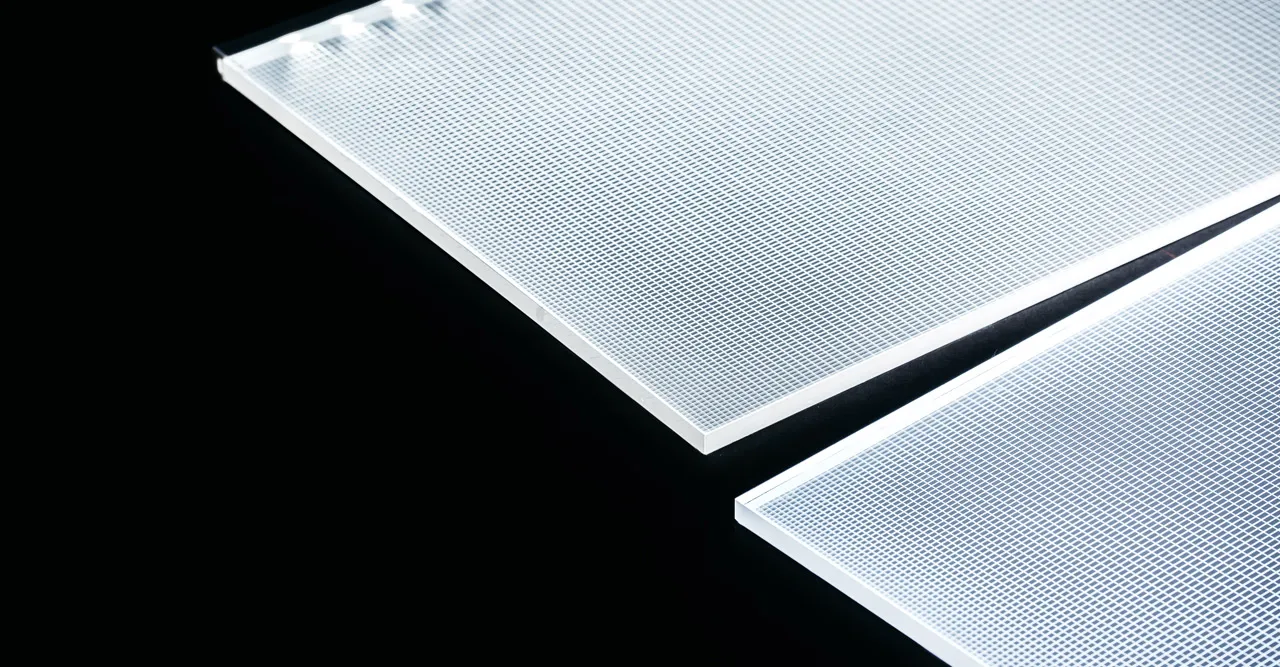

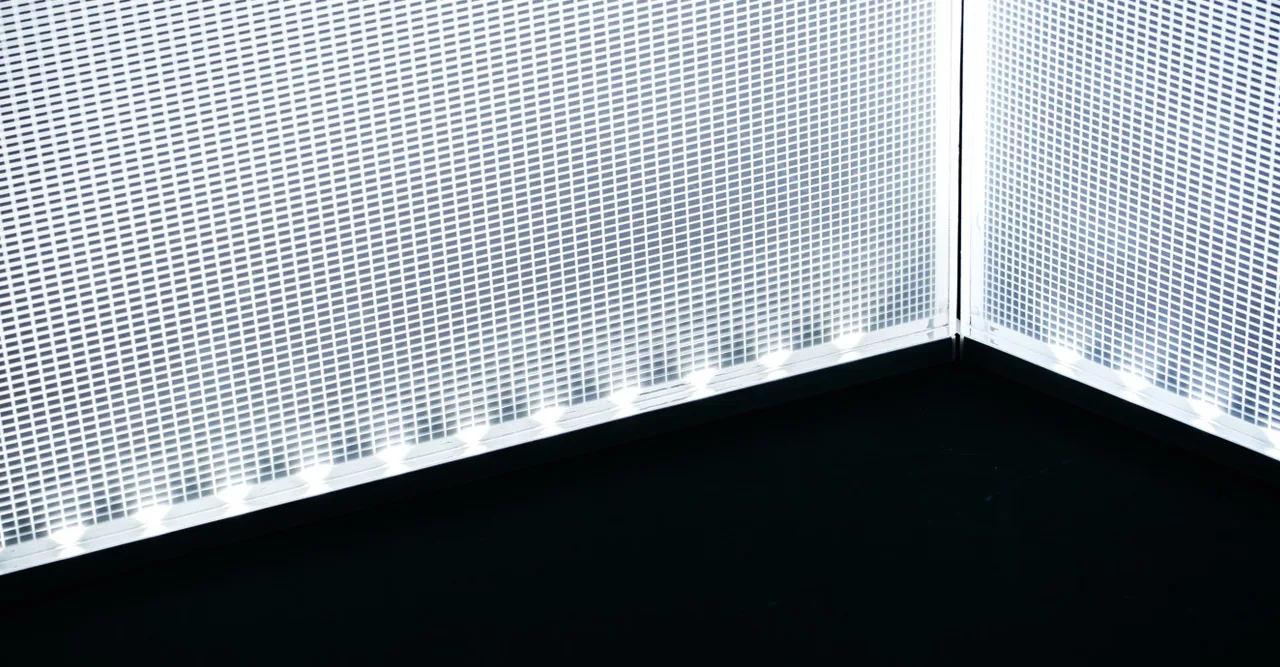

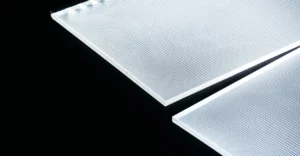

Light Guide Panel 1/4″ (6mm) Acrylic with V cut
Weight 1.65 lbs / sq ft (7.64 Kg / sq meter)

General Summary

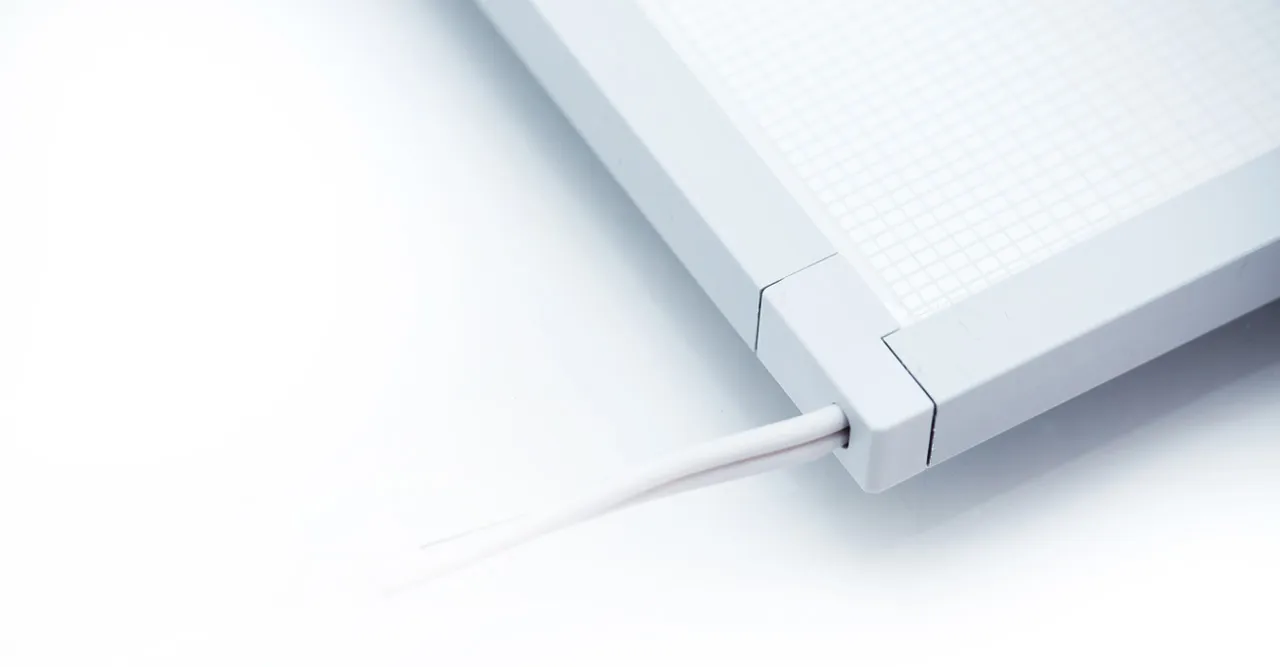

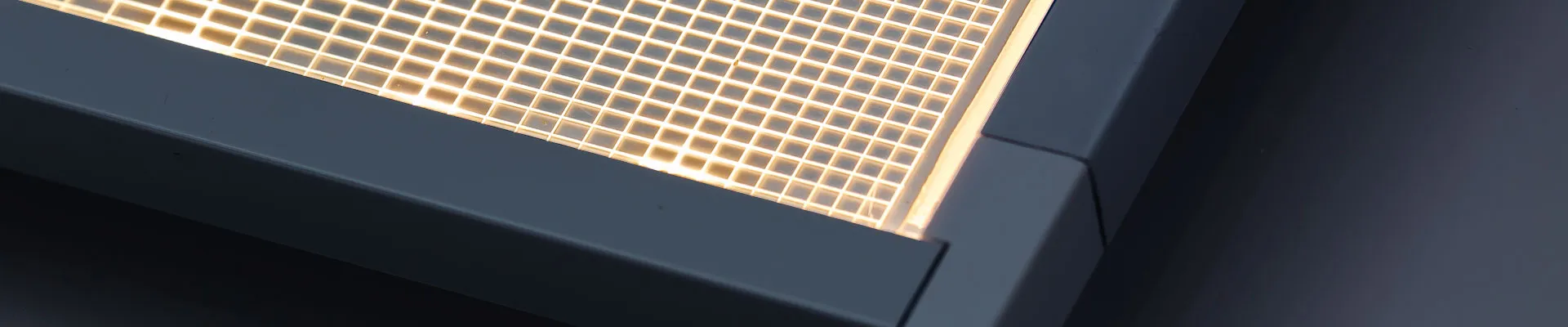

Safety Design Plastic corner pieces for sharp corner & cable protection (U.S. Patented)
Mounting By double sided tape, standoffs, Z clips, or others
Input Voltage D.C. 12 Volt or 24 Volt
Power – Consumption 4.0 Watt / ft of LED (12 Watt / meter of LED)

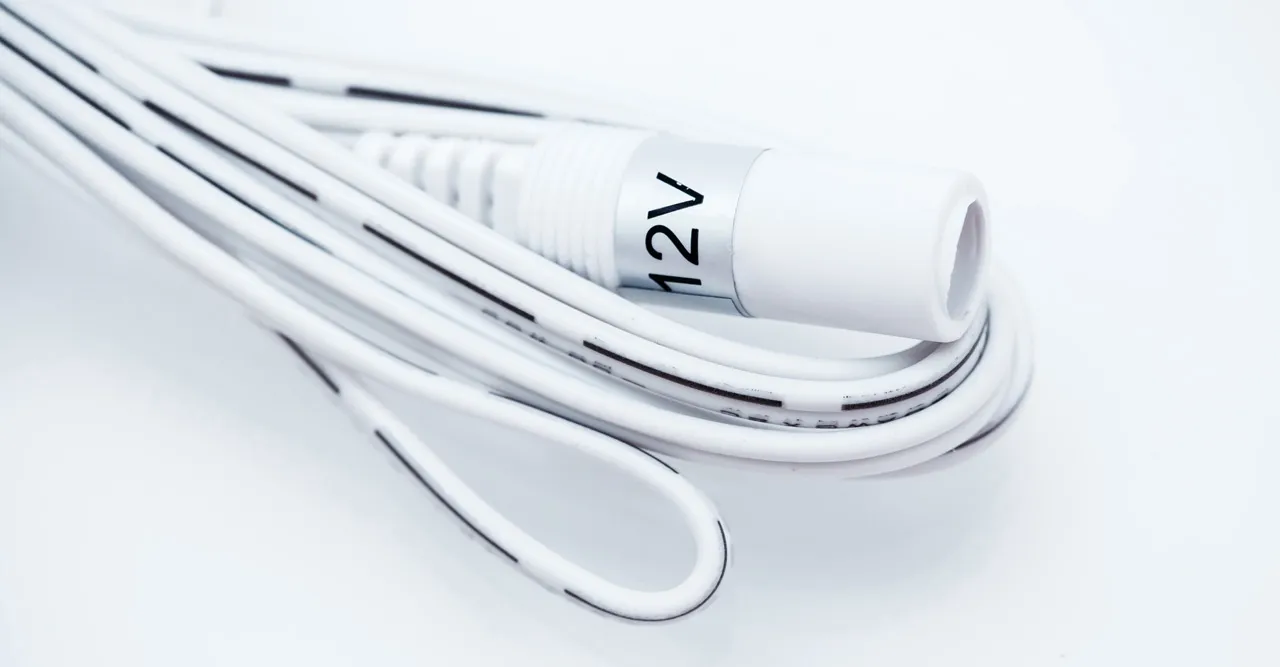

Power Cord 20 AWG with barrel connector (5.5mm / 2.1mm) or open cable
Length of cord : Standard : 5’ (1,500mm), Optional : 10’ (3,000mm)
Power Supply UL class 2 or LPS
D.C. 12 Volt : Max. 4.86 Amp / 58.5 Watt
D.C. 24 Volt : Max. 3,77 Amp / 90.9 Watt
or CE approved
Operating Temperature -22ºF (-30ºC) ~ 104ºF (+40ºC)
Certification UL listed (E344086), UL recognized (E341820), CE approved

Brightness

Dimension (Inch)Dimension (mm)LEDSurface Brightness (Lux)Power Consumption (W)
6” x 12”152 x 3041 long side7,0003.0
12” x 12”304 x 3041 long side3,5003.0
18” x 24”457 x 6092 long sides5,00013.2
24” x 36”609 x 9142 long sides3,60020.4
36” x 72”914 x 18282 long sides2,50043.3
48” x 96”1219 x 24382 long sides2,00056.4
60” x 118”1500 x 30004 sides2,00098.0
