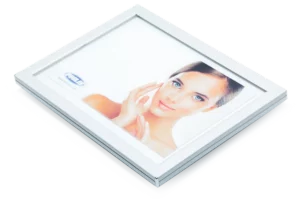

Light-Box-with-image_20mm_top
Lightbox_20mm_Product_12

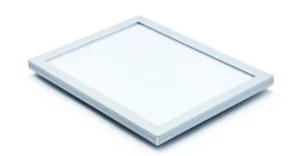

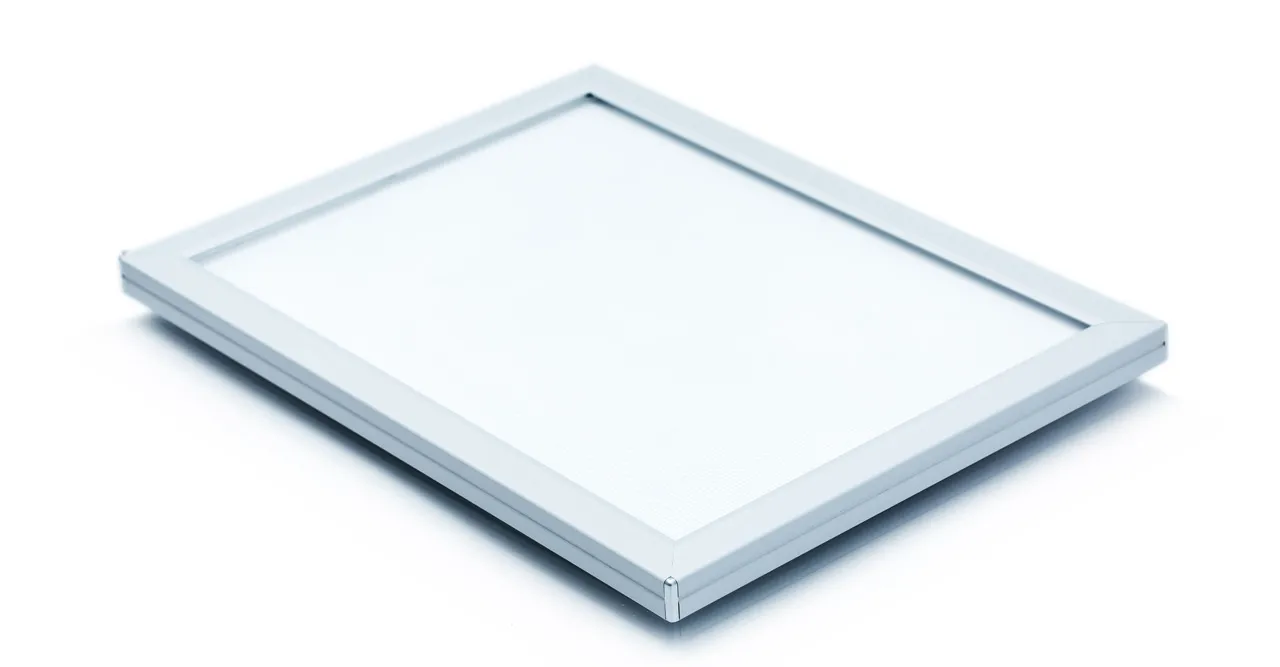

Lightbox_20mm_Product_6
Lightbox_20mm_Product_1

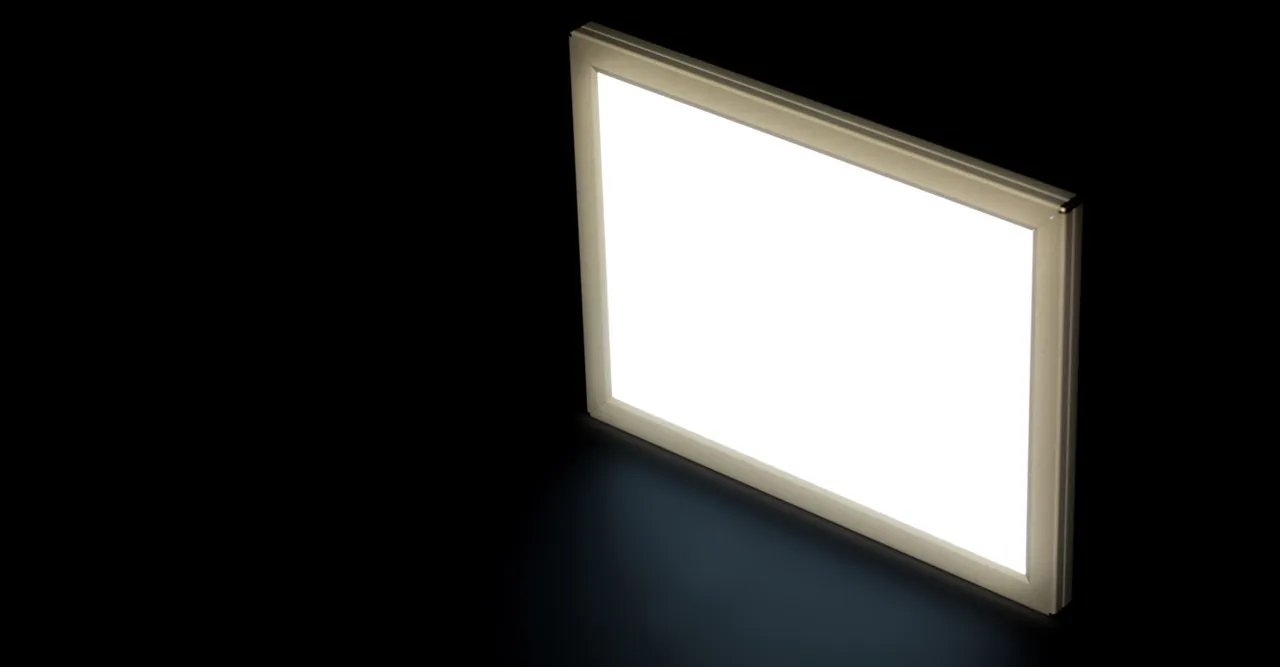

Lightbox_20mm_Product_8

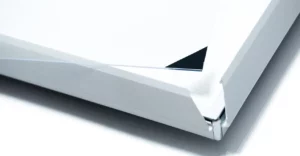

Lightbox_20mm_Product_9

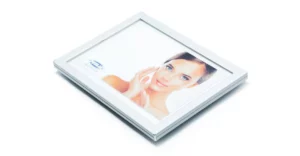

Lightbox_20mm_Product_11
Lightbox_20mm_Product_5
Lightbox_20mm_Product_10
Lightbox_20mm_Product_4

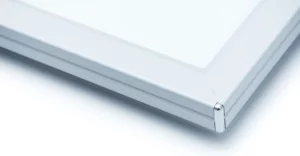

Lightbox_20mm_Product_7

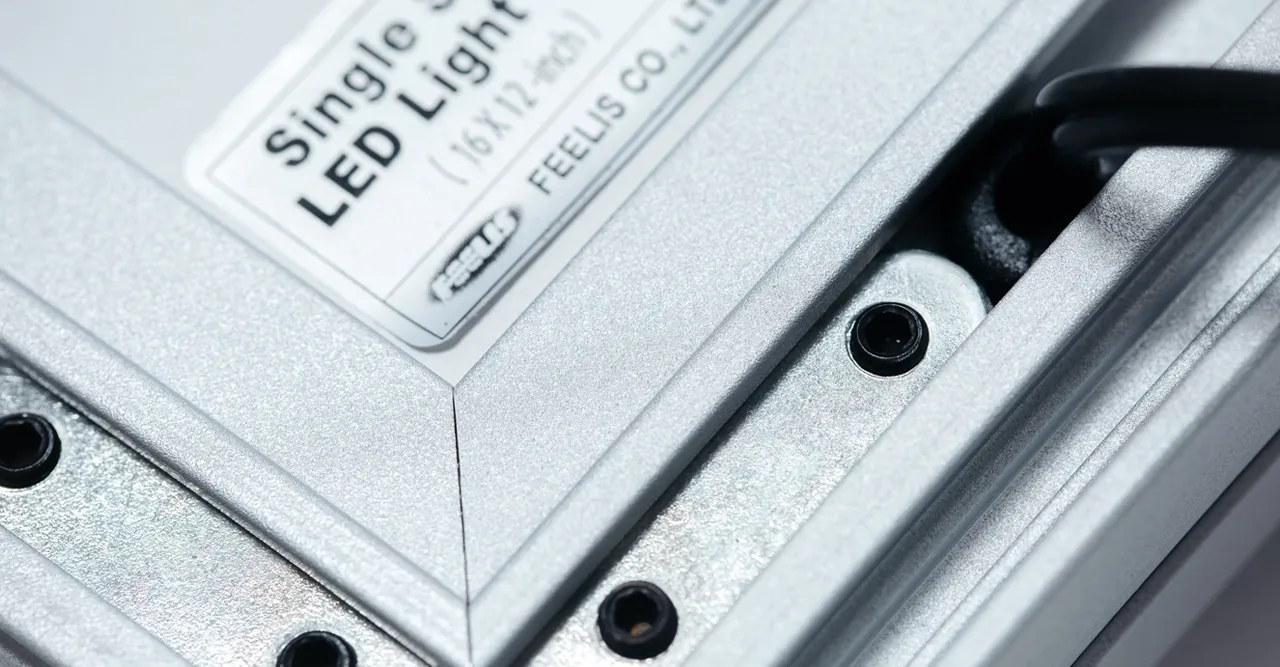

Lightbox_20mm_Product_2

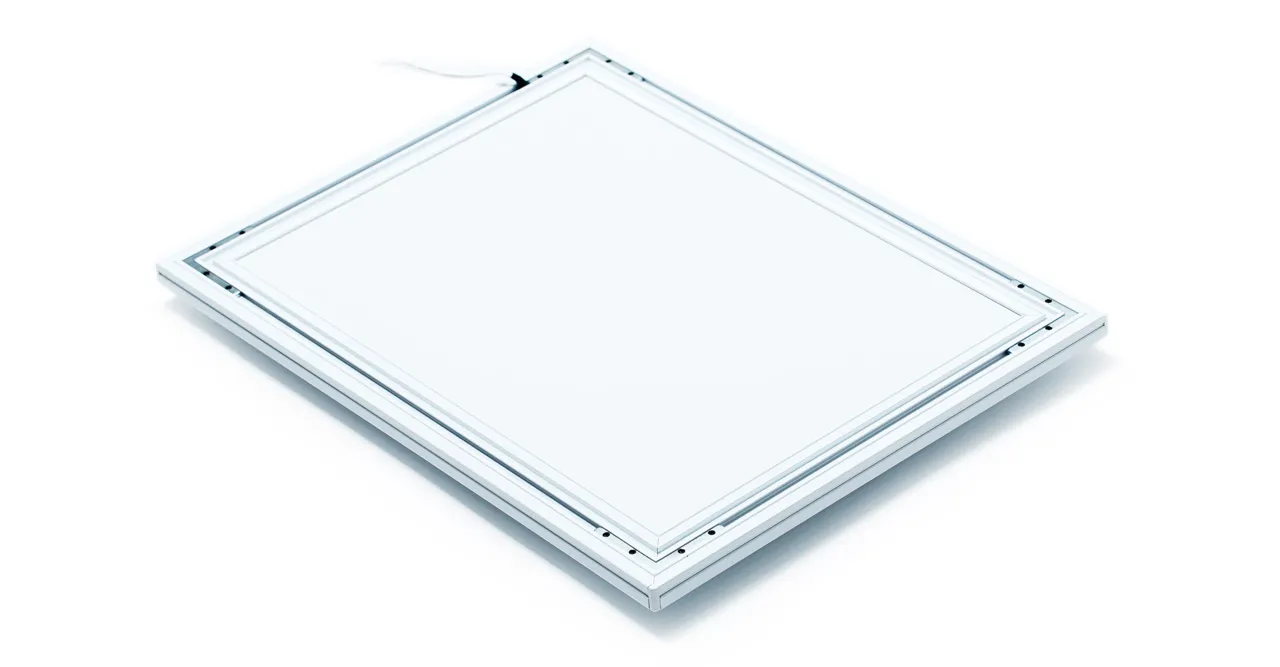

Lightbox_20mm_Product_3
Light-Box-with-image_20mm_top Lightbox_20mm_Product_12 Lightbox_20mm_Product_6 Lightbox_20mm_Product_1 Lightbox_20mm_Product_8 Lightbox_20mm_Product_9 Lightbox_20mm_Product_11 Lightbox_20mm_Product_5 Lightbox_20mm_Product_10 Lightbox_20mm_Product_4 Lightbox_20mm_Product_7 Lightbox_20mm_Product_2 Lightbox_20mm_Product_3

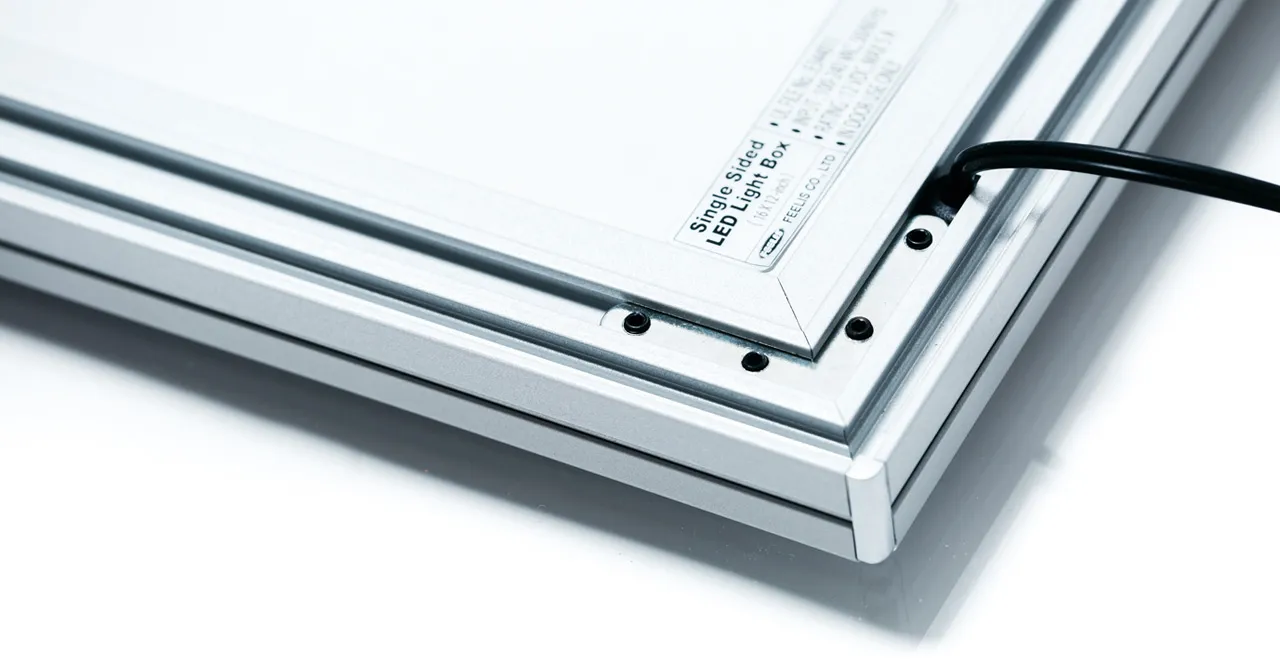

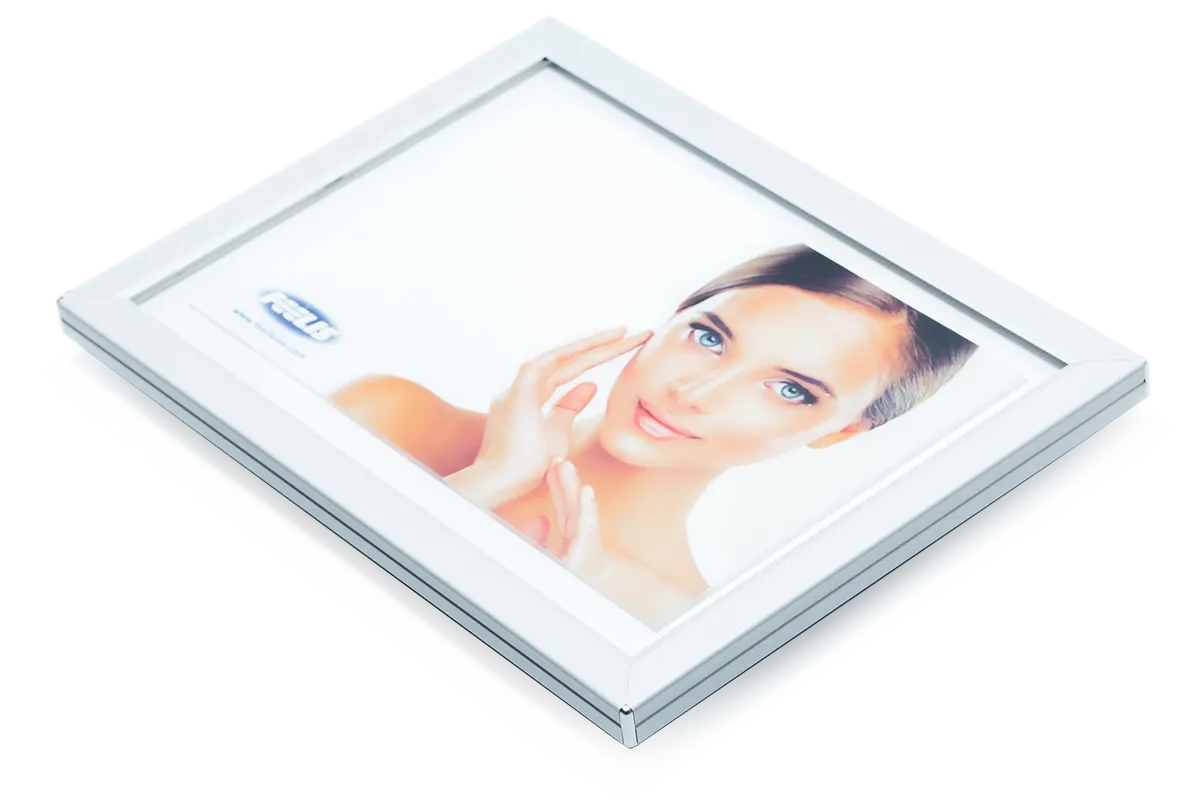

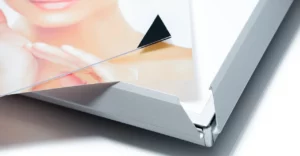

Our standard light boxes feature our fine-quality LED light boards enclosed in flawlessly designed, 20mm-thick aluminum snap frame. Add an evenly-lit back-light source to any printed image to attract more attention for your products.

*Some standard-sized light boxes are stocked in our California warehouse. *
  • Highest brightness and uniformity
  • Ultra-slim frame construction (3/4 inch (20mm) thick)
  • Custom sizes up to 60″ x 118″ (1500mm x 3000mm)
  • Much lower power consumption
  • Longer life, no maintenance
  • Color temperature available from 2700K to 9000K
  • 3 frame colors available – Silver, Black, and White

Series : LIGHT BOXES | Key Features : UL Listed E344011 CE Approved

Product Application

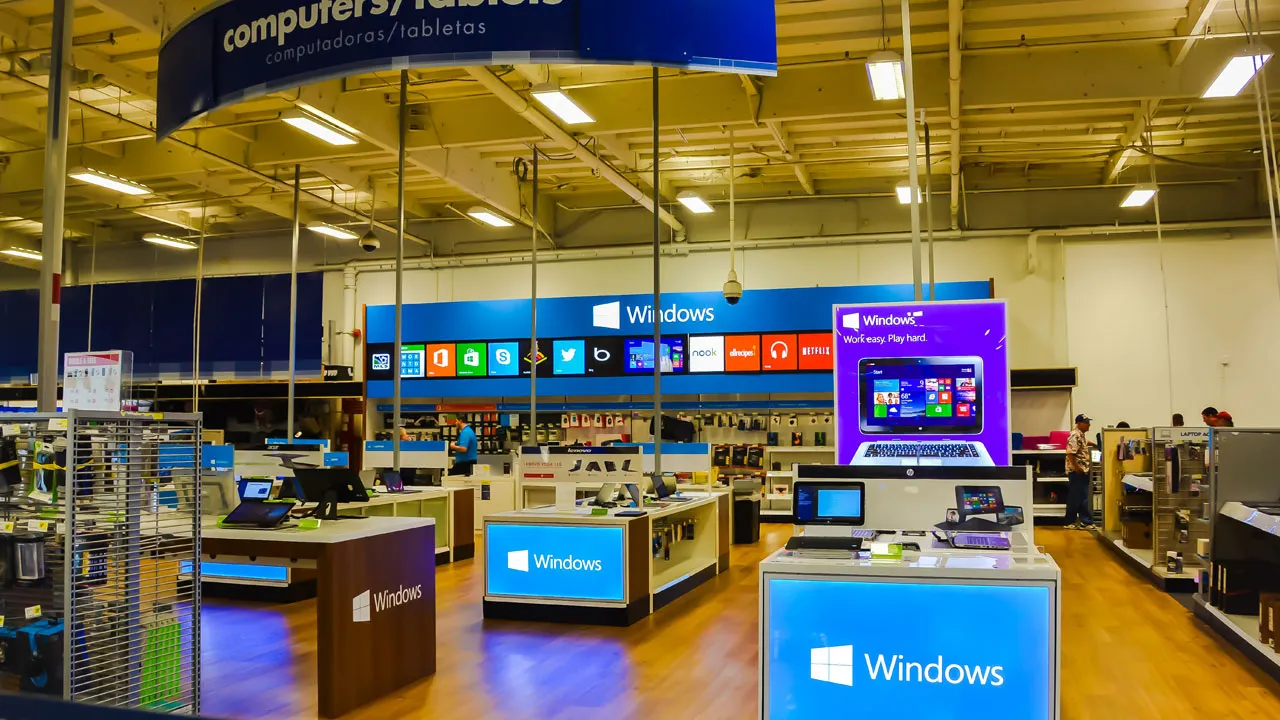

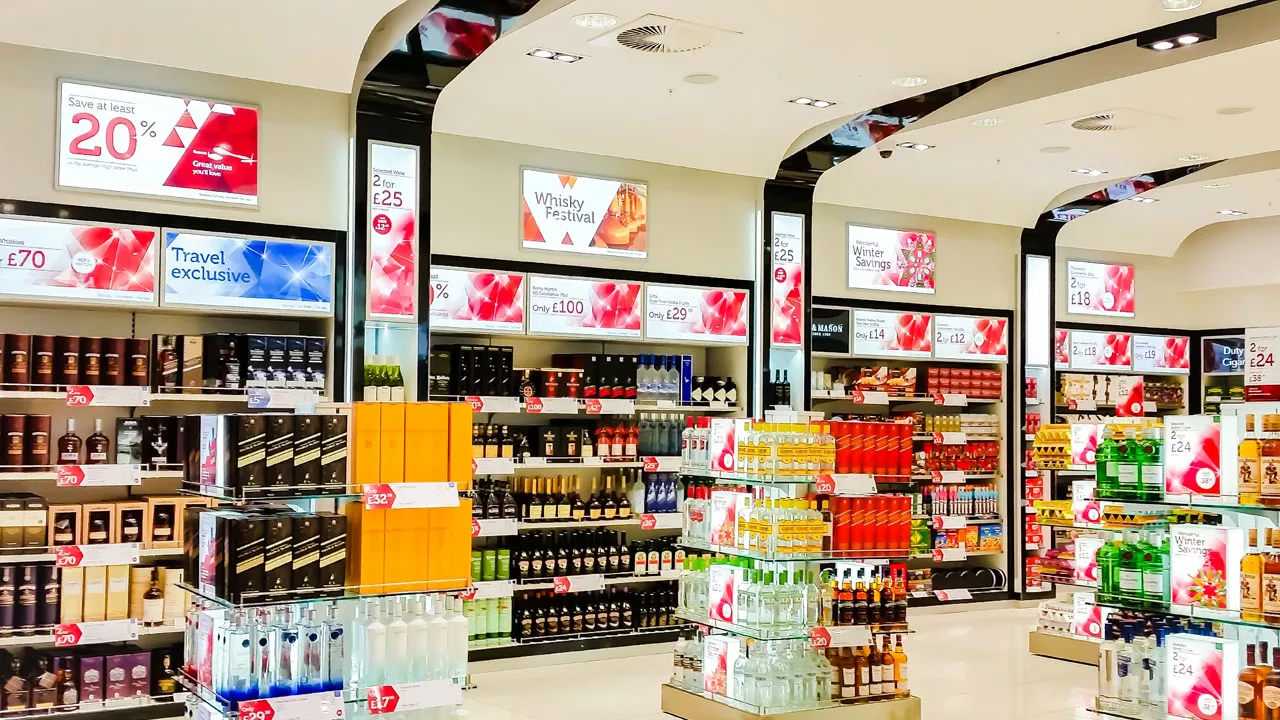

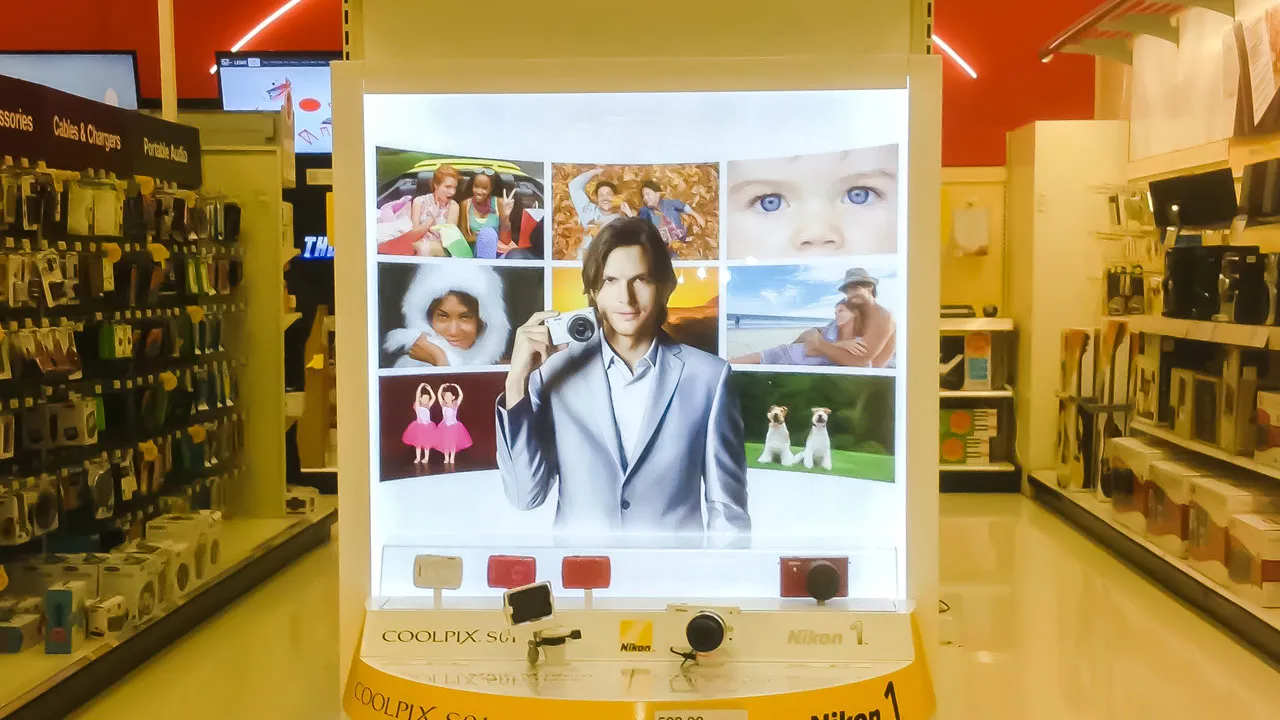

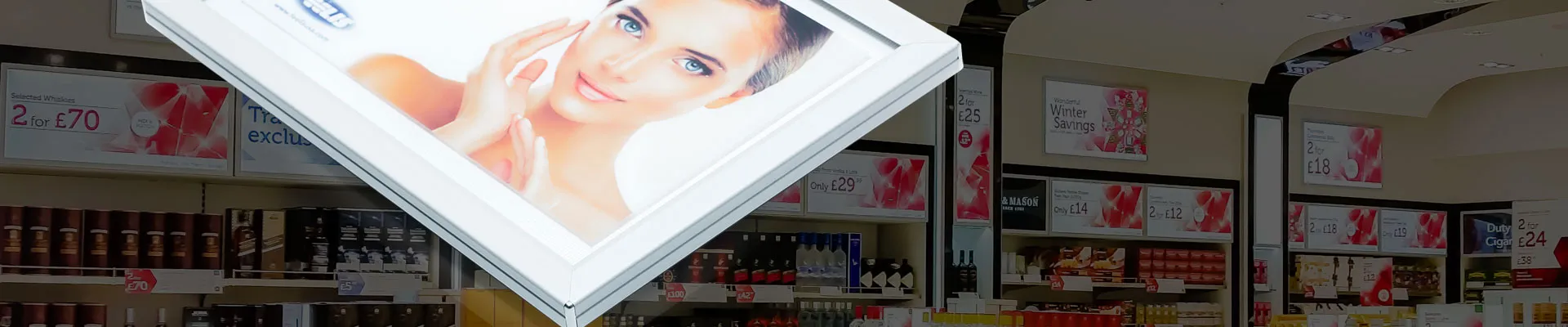

  • Retail shop display stands and cases, such as duty-free shops and luxury brand shops
  • Interior design for hotels/restaurants/office
  • Cosmetic / jewelry display shelves and cabinets
  • Back light source for wall/ceiling displays
  • Menu boards / new item advertisements
  • Art gallery and museum for artistic display
  • Trade show displays

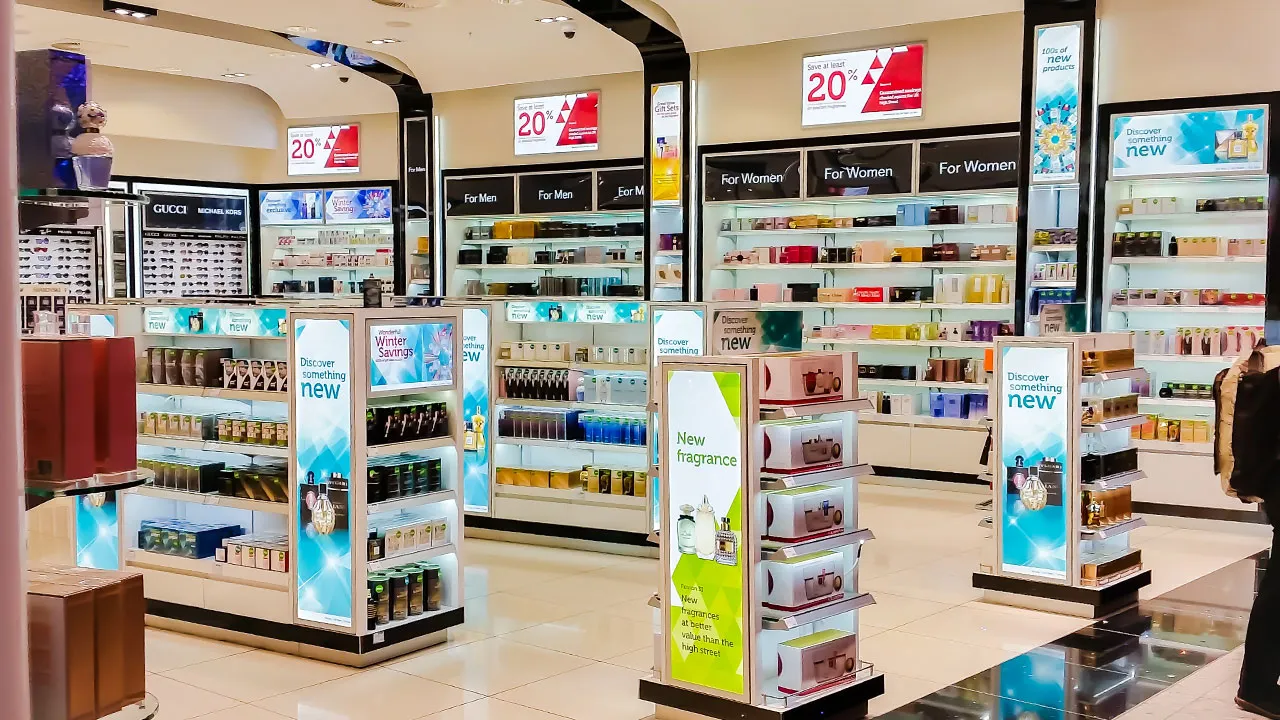

lightboard_london2
lightboard_london1

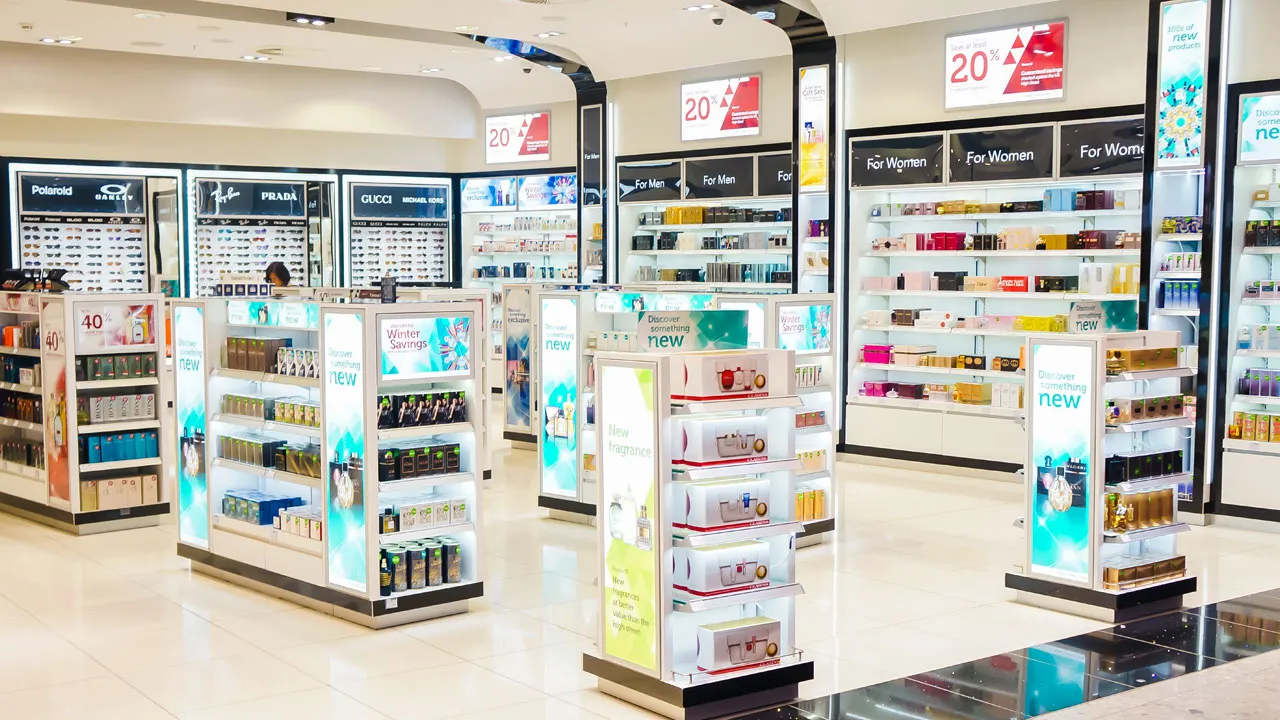

lightboard_london3

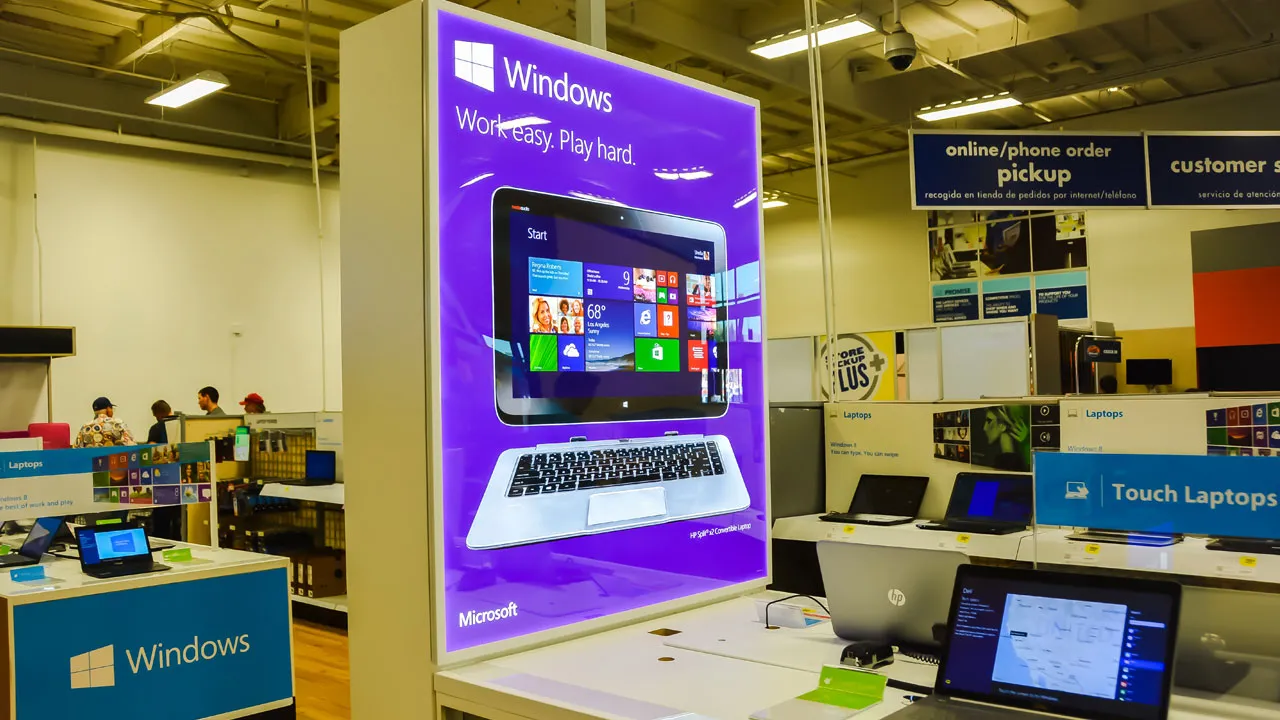

lightboard_Bestbuy5
lightboard_Bestbuy3
lightboard_Bestbuy4
lightboard_Bestbuy1

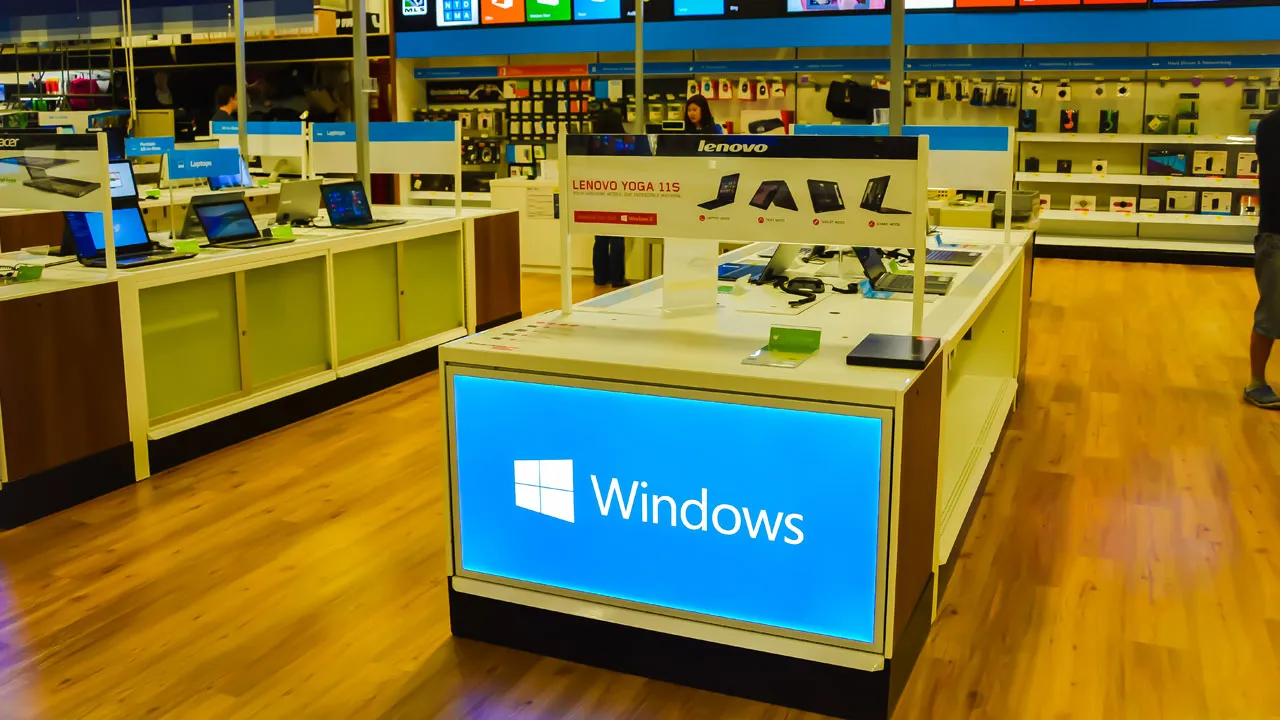

lightboard_Bestbuy2
lightboard_target2

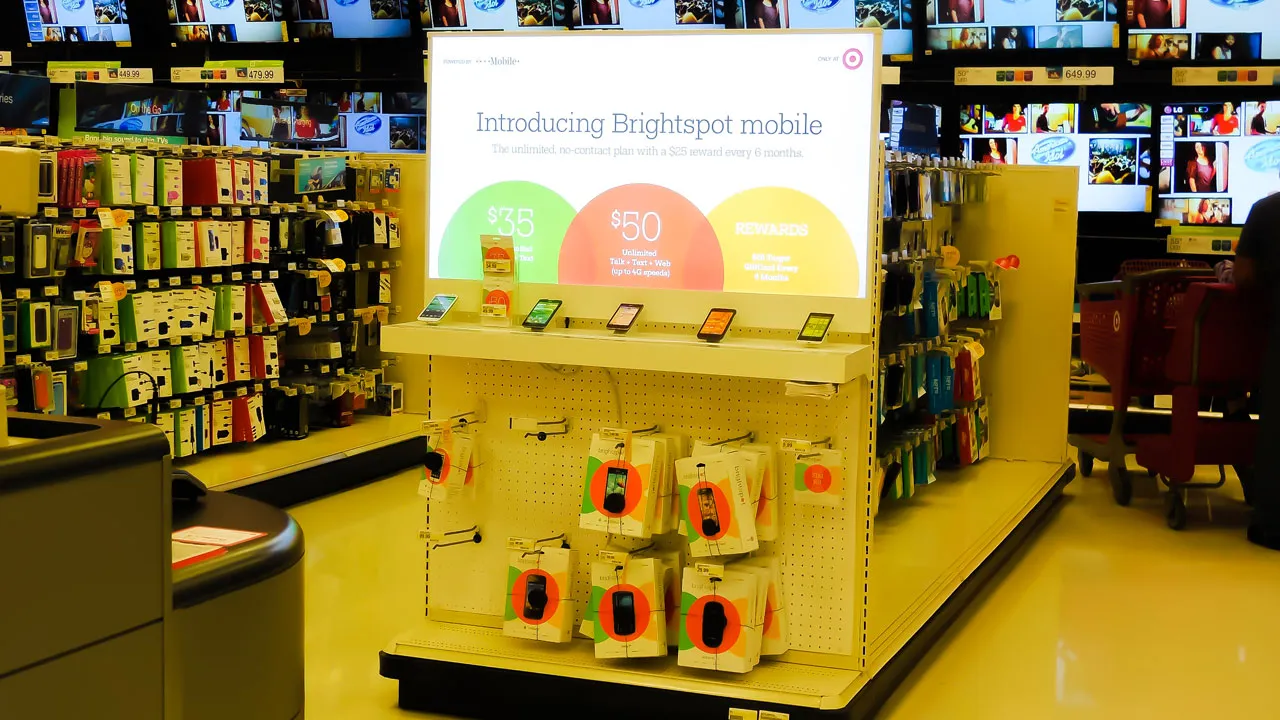

lightboard_target4

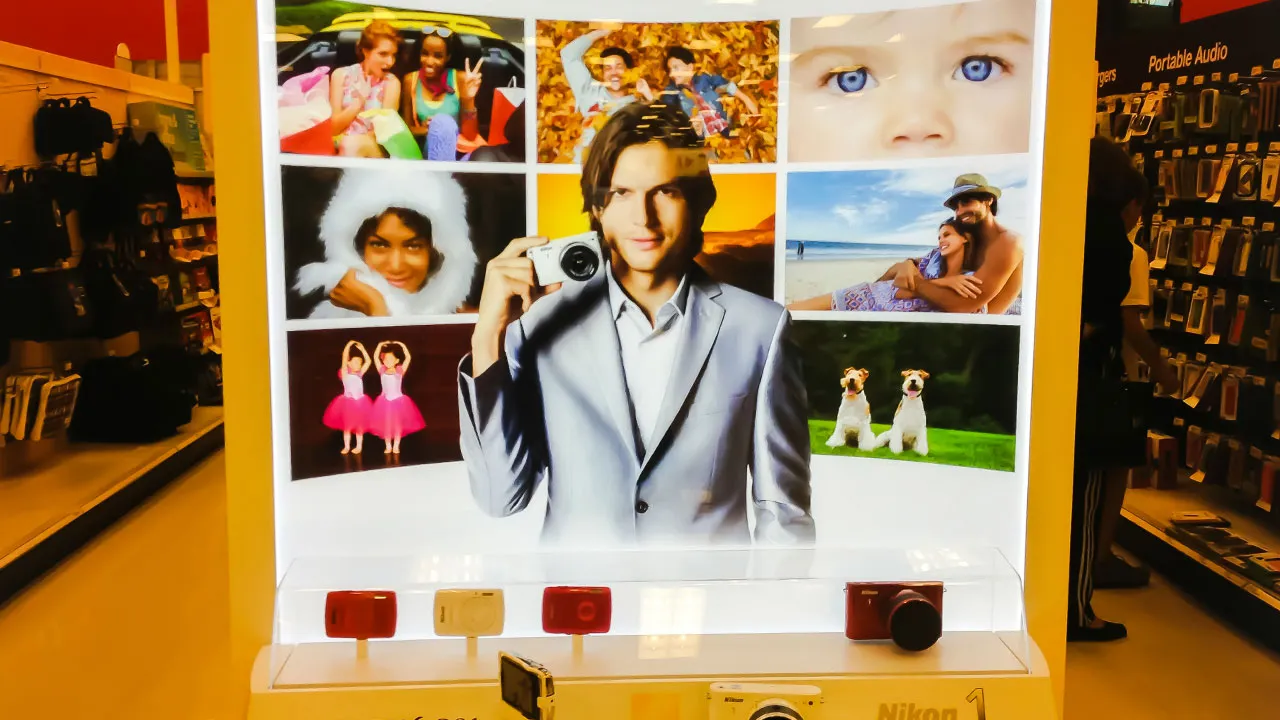

lightboard_target1

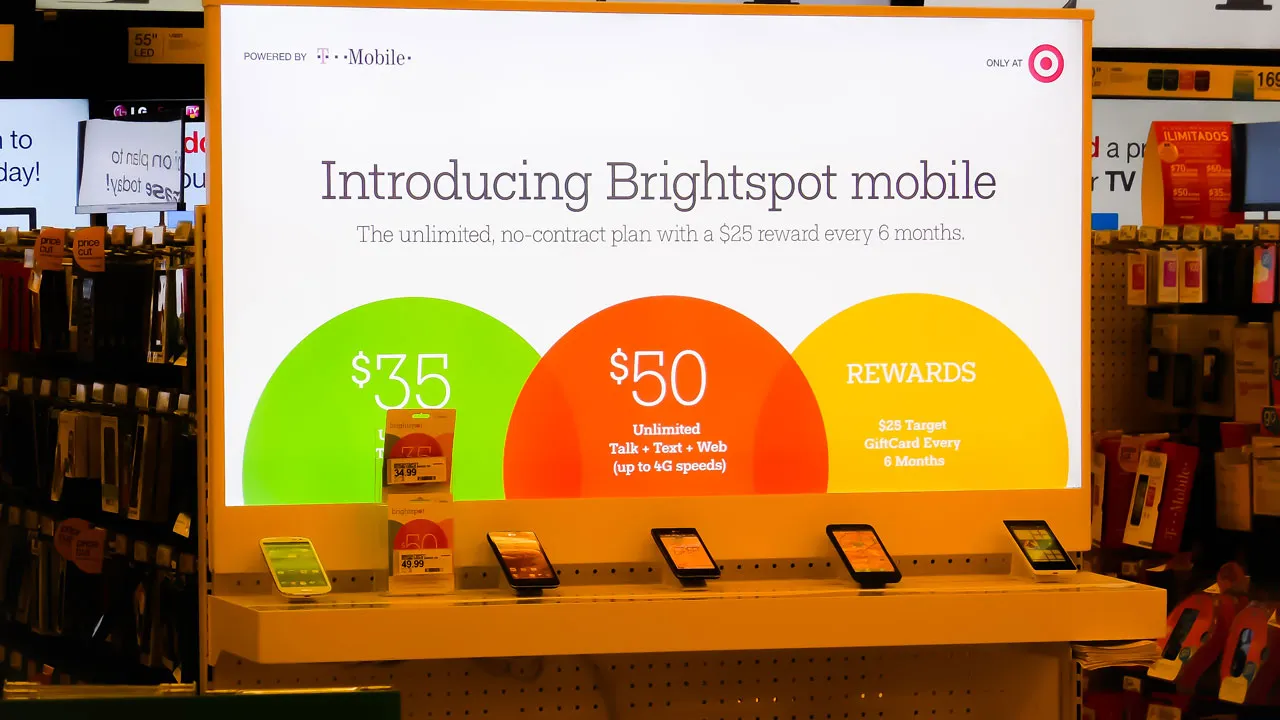

lightboard_target3

Features

Frame Thickness / Frame Width 3/4″ (20mm) / 1″ (25mm) or 1-3/16″ (30mm)
Frame / Color Anodized aluminum / Silver, Black and White

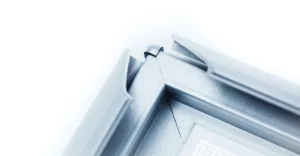

Open / Close Snap open / close
LED One(1) edge, two(2) edges or four(4) edges
Color Temperature 2400K, 2700K, 3200K, 3700K, 4200K, 4700K, 5300K, 6500K, 7500K, 9000K
Dimming By external dimmer (Optional)
Environment Suitable for indoor and dry location


Dimensions & Weight

Minimum Size 6″ W x 6″ L (150mm W x 150mm L)
Maximum Size 60″ W x 118″ L (1,500mm W x 3,000mm L)
Light Guide Panel 1/4″ (6mm) Acrylic with V cut
Weight 3.05 lbs / sq ft (11.75 Kg / sq meter)


General Summary

Safety Design Plastic corner pieces for sharp corner protection

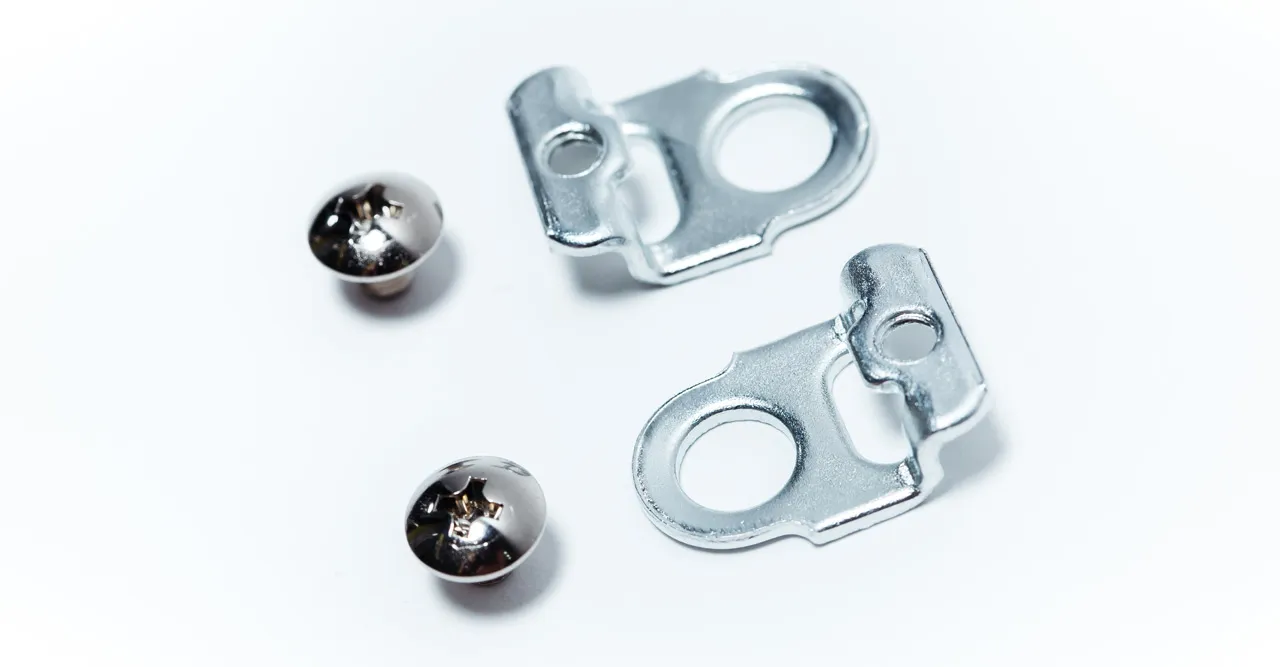

Mounting Wall mount by screws or own mounting clips
Input Voltage D.C. 12 Volt or 24 Volt
Power – Consumption 4.0 Watt / ft of LED (12 Watt / meter of LED)
Power Cord 20 AWG, 2 Conductors
Barrel Connector (5.5mm / 2.1mm)
Length : Standard : 5’ (1,500mm), Optional : 10’ (3,000mm)
Power Supply UL class 2 or LPS
D.C. 12 Volt : Max. 5 Amp / 60 Watt
D.C. 24 Volt : Max. 4.1 Amp / 98.4 Watt
or CE approved
Operating Temperature -22ºF (-30ºC) ~ 104ºF (+40ºC)
Certification UL Listed (E344011), CE approved


Brightness

Dimension (Inch)Dimension (mm)LEDSurface Brightness (Lux)Power Consumption (W)
12” x 12”304 x 3041 long side3,5003.0
18” x 24”457 x 6092 long sides5,00013.2
24” x 24”609 x 6092 long sides3,60013.2
24” x 36”609 x 9142 long sides3,60020.4
36” x 48”914 x 12192 long sides2,80027.6
36” x 72”914 x 18282 long sides2,50043.3
48” x 96”1219 x 24382 long sides2,00056.4
60” x 118”1500 x 30004 sides2,00098.0
